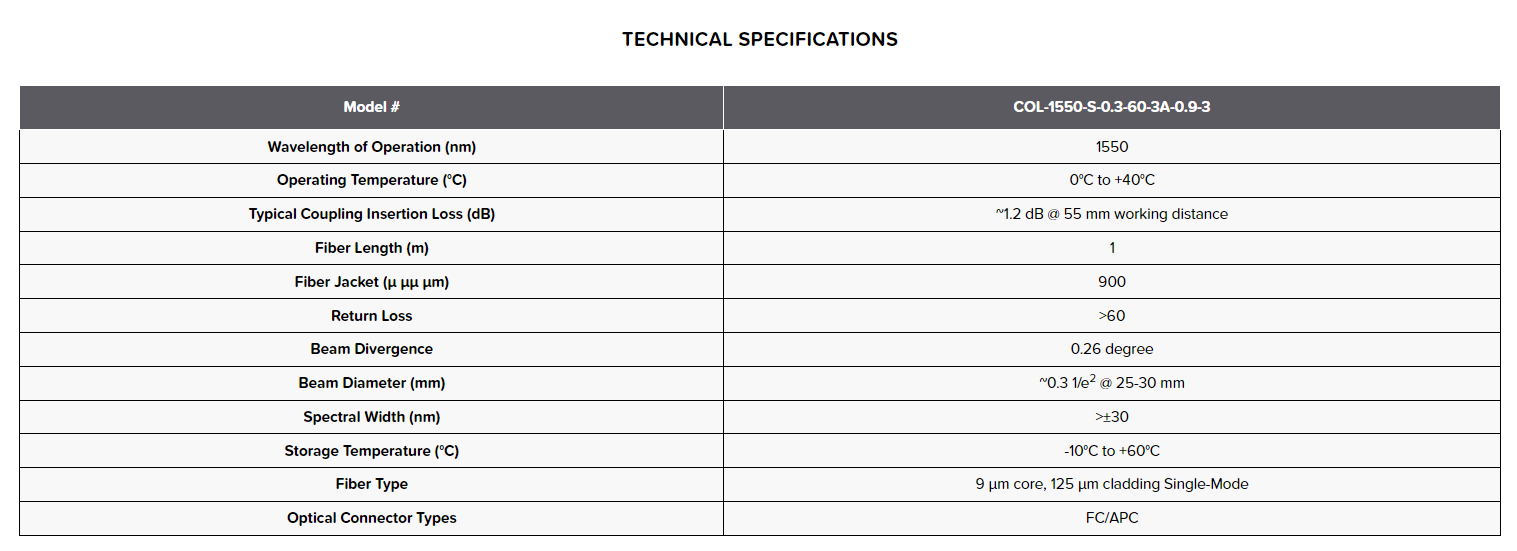

型番：COL-1550-S-0.3-60-3A-0.9-3　メーカー：Brimrose Corporation of America　商品コード：L003285

Fiber Optic Collimators / Focusers

波長: 1550nm-1550nm
ビーム径: ~0.3 1/e2 @ 25-30 mm
拡がり角: 0.26 degree

FREE SPACE AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

Brimrose offers a complete line of high performance collimators and focusers designed to collimate or focus light exiting from a fiber to a specified beam diameter or spot size. By utilizing diffraction limited lenses, the spot size of a few microns can be achieved. We design and manufacture matched pairs of collimators and focusers to couple light in and out of the desired devices.

The Brimrose Fiber Optic Collimators are available for any wavelength from 403nm to 2000nm, utilizing multi-mode, single-mode, or polarization maintaining (PM) fibers. Our PM devices maintaining polarization extinction ratios of better than 20dB are available upon request. We manufacture for 60dB or better back reflection for our fiber pigtailed collimators. All of our fibers and grin lenses are antireflection coated in-house for maximum performance.

The Brimrose high performance fiber collimator is a fiber optic device that has very small insertion loss, excellent return loss, high polarization extinction ratio, small beam divergence, etc.

< KEY FEATURES >
Low Insertion Loss
Excellent Return Loss
High Polarization Extinction Ratio
Small Beam Divergence
Wide Wavelength Range: 403-2000nm
Miniature Size and Light Weight
Optical Path, Epoxy Free, and Solder Package
SM, PM, and MM Fibers
Antireflection Coated Fibers / Grin Lenses
Custom Configurations Available

< APPLICATIONS >
Fiber Optic Sensors, Optical Devices
Measurement Systems
Signal Processing
Laboratory Testing
OEM Designs
