型番:AP-SC-MIR メーカー:AdValue Photonics 商品コード:L003223

1850nm-2500nm / 100mW Broadband Mid-IR Light Source

波長: 1850nm-2500nm
出力: 100mW-100mW
テクノロジー: Broadband Mid-IR Light Source
冷却方法: Forced air

< Optical Characteristics >

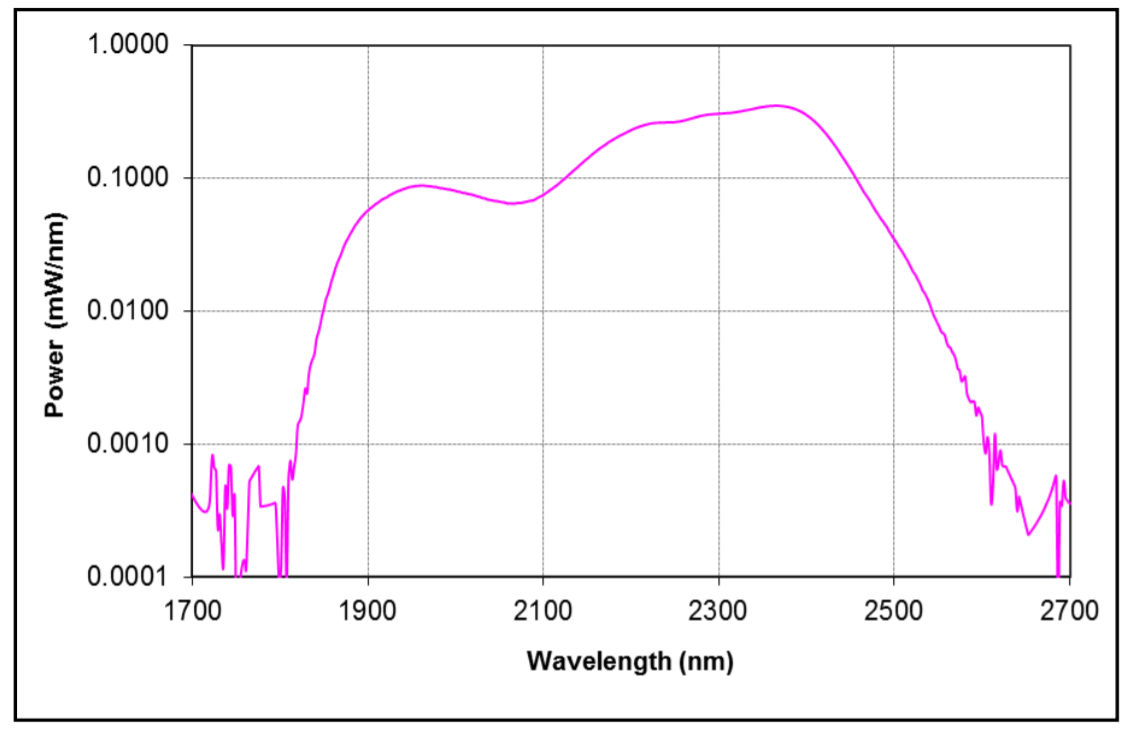

10dB bandwidth: >500 nm (~ 1.9 to 2.4 µm)
Output power stability: ±5% (at 25℃)
Operation mode: 10 kHz
Beam quality, M2: < 1.1
Output polarization: Random
Output fiber and connector: SMF-28 single mode fiber, 1 m length, 3 mm jacket, FC/APC connector
(Customization options available)

< General Characteristics >
Operating temperature: +5 to +35℃
Storage temperature: -10 to +65℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Very broad bandwidth
・Mid-IR wavelength region
・High output power
・Diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・Optical component testing
・Gas analysis
・Biomedical analysis
・Spectroscopy
・Research & development
