型番：ARR180P1000、ARR180P1200、ARR180P1700、ARR180P1800、ARR180P2200、ARR180P2400、ARR180P3400、ARR180P4400　メーカー：Northrop Grumman Corporation　商品コード：L001157

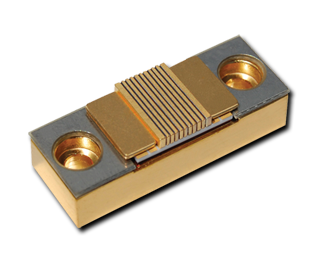

9, 10, 12, 17, 22-Bar G2 Packages

9, 10, 12, 17, 22-Bar G2 Packages
9, 10, 12, 17, 22-Bar G2 Packages

G2 Package データシート.pdf

波長: 808nm-808nm
出力: 1000W-4400W
電流: 95A-175A
電圧: 18.0V-44.0V
パッケージ: G-package
テクノロジー: High power laser diode array

CEO offers a stretched version of the industry-standard G Package that serves as a platform for up to 22 QCW bars. This configuration can produce up to 6.6 kW of peak output power. CEO offers these arrays with many values of bar-to-bar pitch (400 µm, 800 µm, 1.2 mm, 1.7 mm).

The Stretch G Package mounts easily into laser systems or direct-diode applications. It is available in any of CEO’s standard wavelengths (790-820 nm, 872-890 nm, 930-950 nm), and custom wavelengths are also available. Many configurations are available with fast-axis collimation, with divergence values less than 0.2° (FWHM).

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
