型番：AP-CW1　メーカー：AdValue Photonics　商品コード：L003219

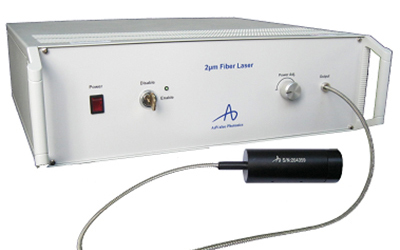

1950nm / 5W　2 Micron CW Fiber Laser

波長: 1950nm-1950nm
出力: 5W-5W
テクノロジー: CW Fiber Laser
冷却方法: Forced air

< Optical Characteristics >
Operating mode: CW
Operating wavelength: 1950 nm (option: 1900-2100 nm)
Wavelength accuracy: ±5 nm nominal
Output power: 5 W (higher or lower power available)
Power adjustment: 10-100% max.
Spectral linewidth: < 1 nm
Beam quality, M2: < 1.1
Output polarization: Random (Option: linear polarization)
Output delivery: Optical fiber or fiber collimator
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: +10 to +35℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Customizable operating wavelength
・High output power
・Diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・LIDAR
・Gas sensing
・Mid-IR generation
・Spectroscopy
・Test and measurement
・Research & development
