型番: メーカー:YSL Photonics 商品コード:L002827

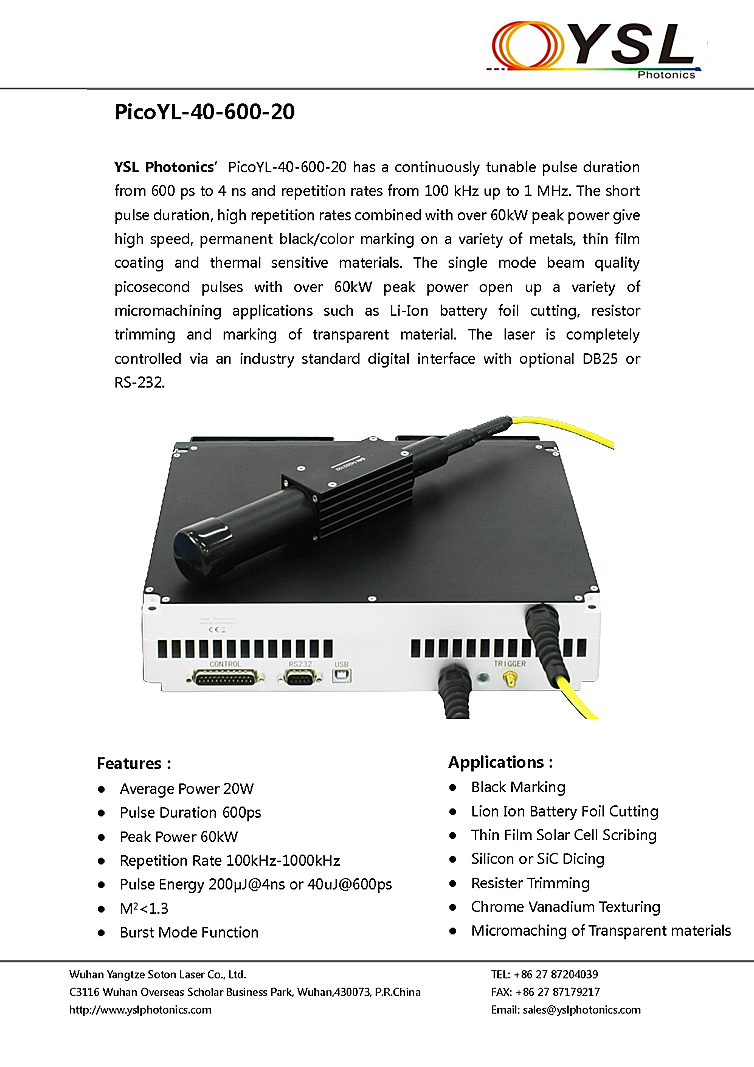

Picosecond Fiber Laser, 1064nm, 20W

波長: 1064nm-1064nm
出力: 20W-20W
テクノロジー: Fiber Laser

Fiber laser with continuously tunable pulse duration from YSL Photonics. Laser features burst mode function. Pulse energies up to 200μJ at 4ns and up to 40uJ at 600ps with pulse repetition rate from 100kHz to 1MHz. Minimum pulse duration of 600ps. Applications for the fiber laser include Black Marking, Lion Ion Battery Foil Cutting, Thin Film Solar Cell Scribing, Silicon or SiC Dicing, Resister Trimming, Chrome Vanadium Texturing, and Micromaching of Transparent materials. Beam diameter from 5mm to 8mm with a beam divergence <1mrad and beam quality M2<1.3. Picosecond Fiber Laser with peak power up to 60kW, average power up to 20 watts at a wavelength of 1064nm.
