型番:CA532-0.4-3(20X80)-F100 メーカー:Picotronic GmbH 商品コード:L003214

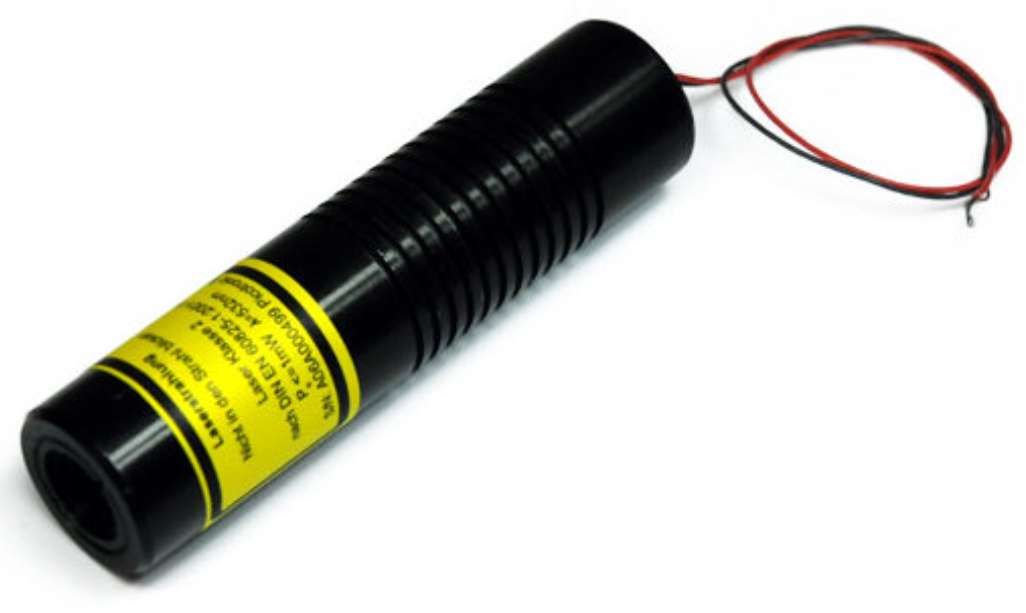

0.4mW Green Isolated Cross Lasermodule (F100)

メーカー希望小売価格: €196,55 波長: 532nm-
出力: 0.4mW-
電流: 50mA-250mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: 0.2mrad

Isolated cross laser module, green, 90 °, 532nm, 0.4mW, 3V DC, 20x80mm, class 1, focus 100mm

• Glas lenses anti reflex coated
• Operating voltage 3 V DC
• Laser Class 1
• Uniform line thickness
• Medical devices

< Main Parameters* >
Wavelength (nm):typ 532
Optical Output Power (mW):typ 0.4
Operating Voltage (V DC):min 2.7 typ 3 max 3.3
Operating Current (mA):min 50 typ 100 max 250
Operating Temperature (℃):min +15 max +30
Storage Temperature (℃):min -40 max +80

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime:>5000 h
RoHS:Yes

< Optical Parameters >
Beam Shape:Cross
Laser Class:1
Divergence:0.2 mrad
Fan Angle:90 °
Line Thickness:<0.2mm@100mm
Operating Distance:0.1m
Optics:glass lens AR coated
Beam Mode:TEM00
Laser technology:Solid State (YVO4+KTP)
Focus:fixed (100mm)
Warm up time:<15 min
Verticality:< ±0.5 °

< Electrical Parameters >
Potential of Housing:isolated
Power Supply:LFNT-3

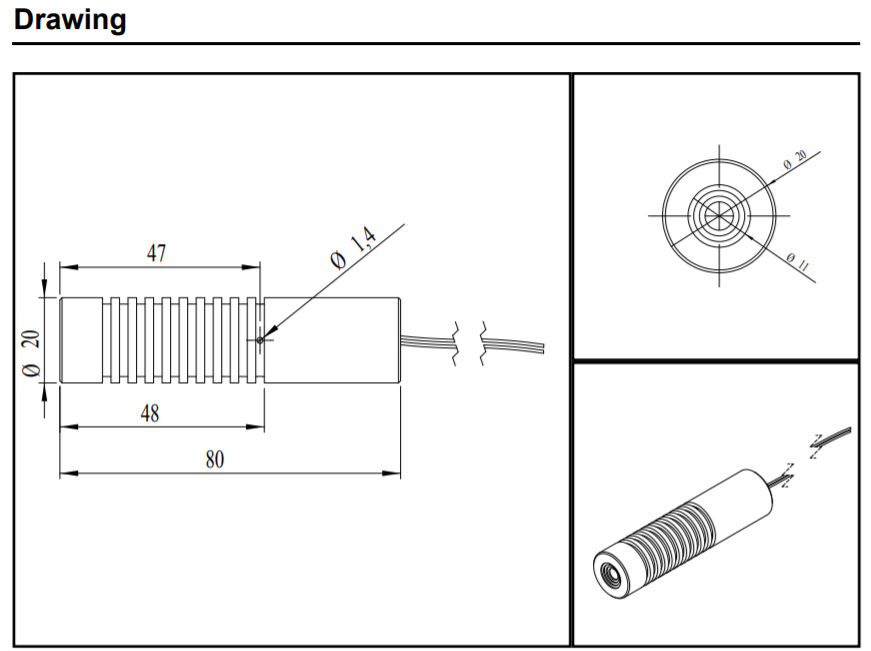

< Mechanical Parameters >
Size:Ø20x80 mm
Material:aluminium
Cable length:200 mm
Wire type:Belden, Typ 1007, 26AWG
Output Aperture:5 mm
Housing Color:black
Weight:57g
Stripping of wire:5 mm

*Over the complete operating temperature range
