型番：QZAF-.20-.40、TEAF_-.36-.52_、TEAF_-.40-.65_、TEAF_-.45-.70_、TEAF_-.55-.1.0_、TEAF_-.40-1.0-2CH*、TEAF_-.80-1.6_、TEAF_-1.2-.2.0_、TEAF_-1.5-3.0_、TEAF_-2.4-.4.5_、TEAF_-0.8-1.6-UH、TEAF_-1.2-1.7-UH、TEAF_-1.5-2.4-UH、TEAF_-2.4-3.2-UH、TEAF_-3.2-4.5-UH　メーカー：Brimrose Corporation of America　商品コード：L003211

Free Space Acousto-Optic Tunable Filters (AOTF)

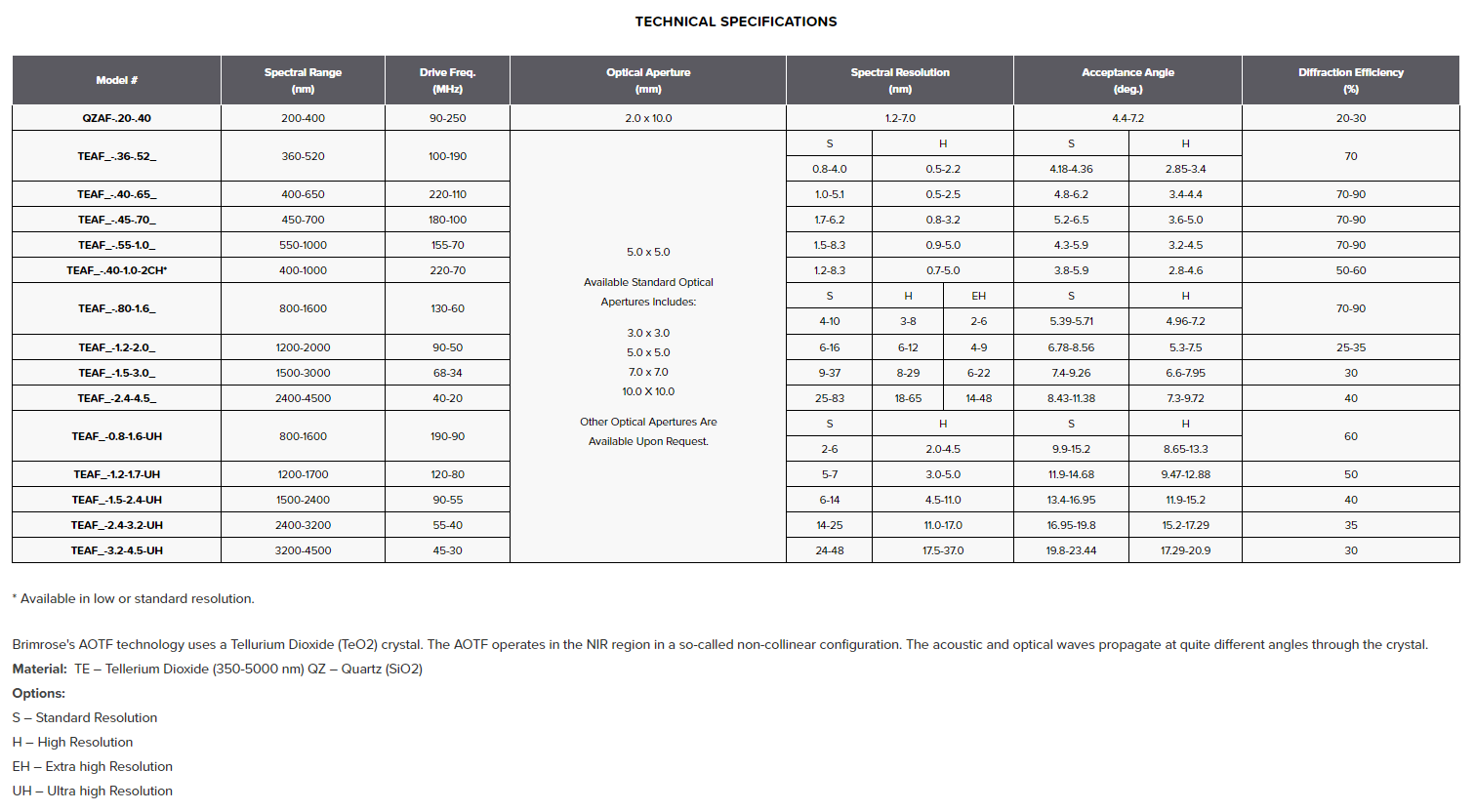

AOTF　データシート.pdf

波長: 200nm-4500nm

FIBER COUPLED AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

The Brimrose Acousto-Optic Tunable Filter (AOTF) is a solid state acousto-optic device with no moving parts. It functions as a tunable transmissive filter. It is able to precisely and rapidly adjust the wavelength, and intensity of the diffracted/filtered light by varying the RF power.

Brimrose offers both standard and custom AOTFs. AOTFs are used widely in numerous optical systems and applications, especially in industrial or process control near-infrared (NIR) spectroscopy applications.

< KEY FEATURES >
All Rugged, Solid State
No Moving Parts – Immune to vibrations
Use with Multiple Laser Lines Simultaneously
Wide Spectral Wavelength Range
Fast Switching Speed
Low Sensitivity to Input Angle
High Optical Throughput
Auto Calibration between Each Measurement
Custom Configurations Available
Ideal for Real-Time NIR

< APPLICATIONS >
(Scientific)
Spectrophotometry Monochromation
Florescence Analysis, Transmission
Laser Displays
(Industrial)
Process Control
(Biomedical)
Confocal Microscopy
Polarimetric Hyperspectral Imagery [the AOTF is inserted in the imagery system]
Other OEM Applications
