型番：LTC1142　メーカー：　商品コード：L002976

1.5 Amp Laser Diode Current Source, 64 Watt TEC Controller, Small Footprint OEM Module

メーカー希望小売価格: Request Price 電流: 1.5A-1.5A
電圧: 14V-14V

Product Overview:

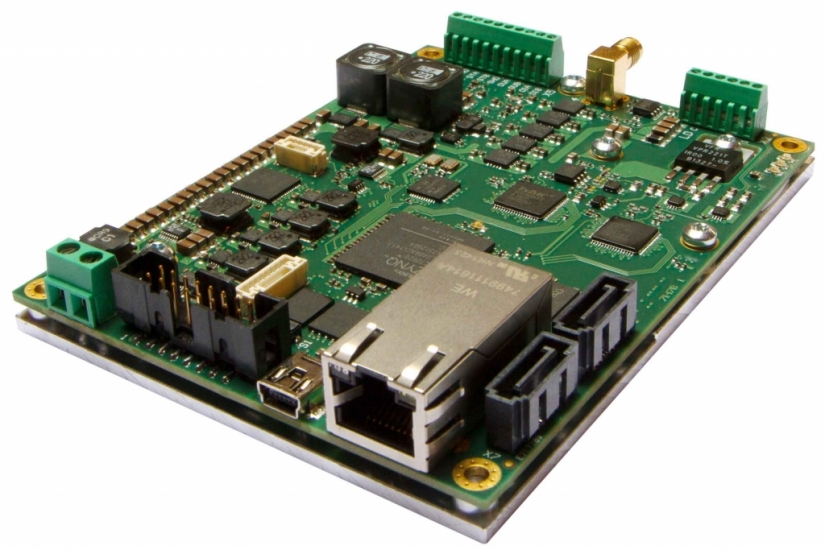

The LTC-1142 combines an ultra-fast laser diode driver and a highly stable TEC/Peltier controller in one module. The controller offers simultaneous sampling of laser diode current and analog input measurements. It also allows the possibility for high-speed digital signal processing and data analysis.
Laser diode current modulation is possible using the internal signal generator or by loading a lookup table. Object temperature control is manageable using the onboard TEC controller. It features high-temperature stability and high measurement precision. PID optimization for the object to be cooled can be done using the auto tuning function or manual adjustment.
The LTC-1142 is ideal for applications requiring dual output voltages with high conversion efficiencies over a wide load current range in a small amount of board space. It has two two analog high-speed channels – laser diode current and analog input – which are synchronously sampled, processed and stored in the onboard RAM. It can be accessed for further signal processing.
The LTC Configuration software allows operation control and monitoring, limits and error management, charting functions for LDD and TEC controller, auto tuning of PID values (only TEC controller), digital storage oscilloscope (DSO) with trigger, and more.
The LTC-1142 Laser & TEC Controller is available in a standard version with configuration options or as a fully customized version.
