型番：SW-B445-1500-SMA　メーカー：Opt Lasers　商品コード：L003163

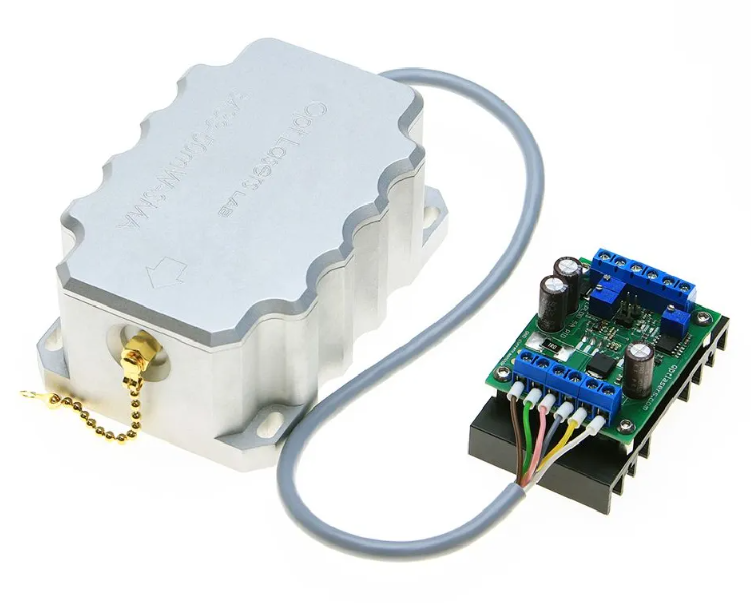

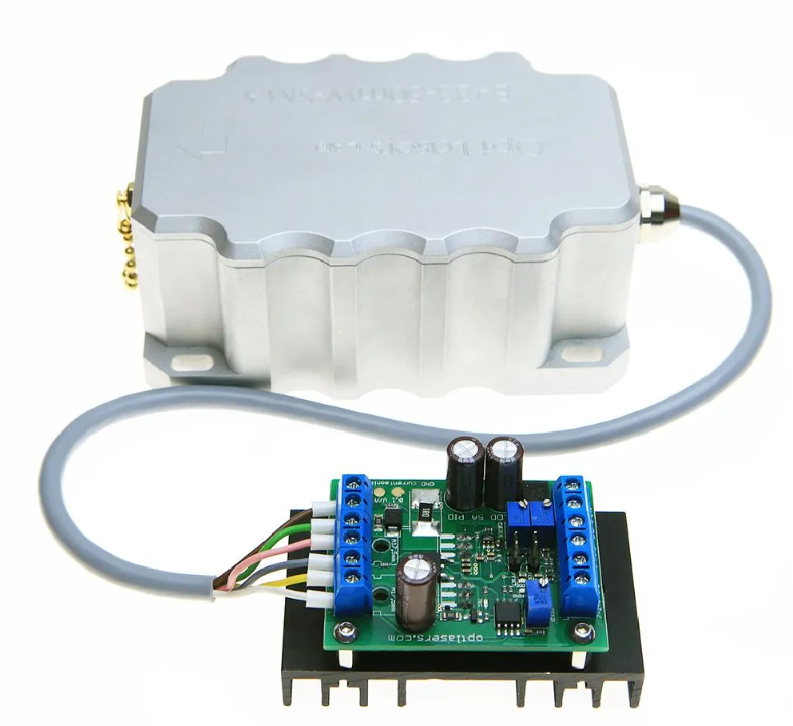

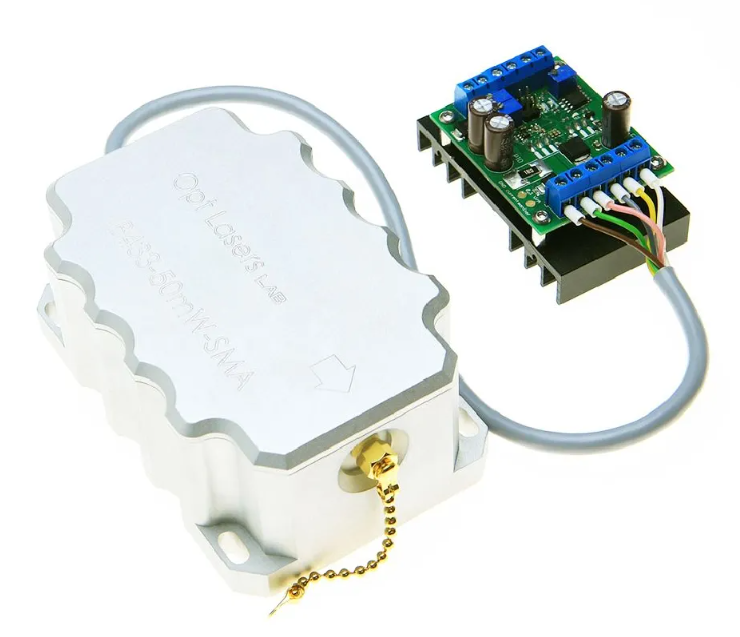

445nm / 1.5W　Fiber Coupled Laser Module [SW Series]

445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]
445nm / 1.5W　Fiber Coupled Laser Module [SW Series]

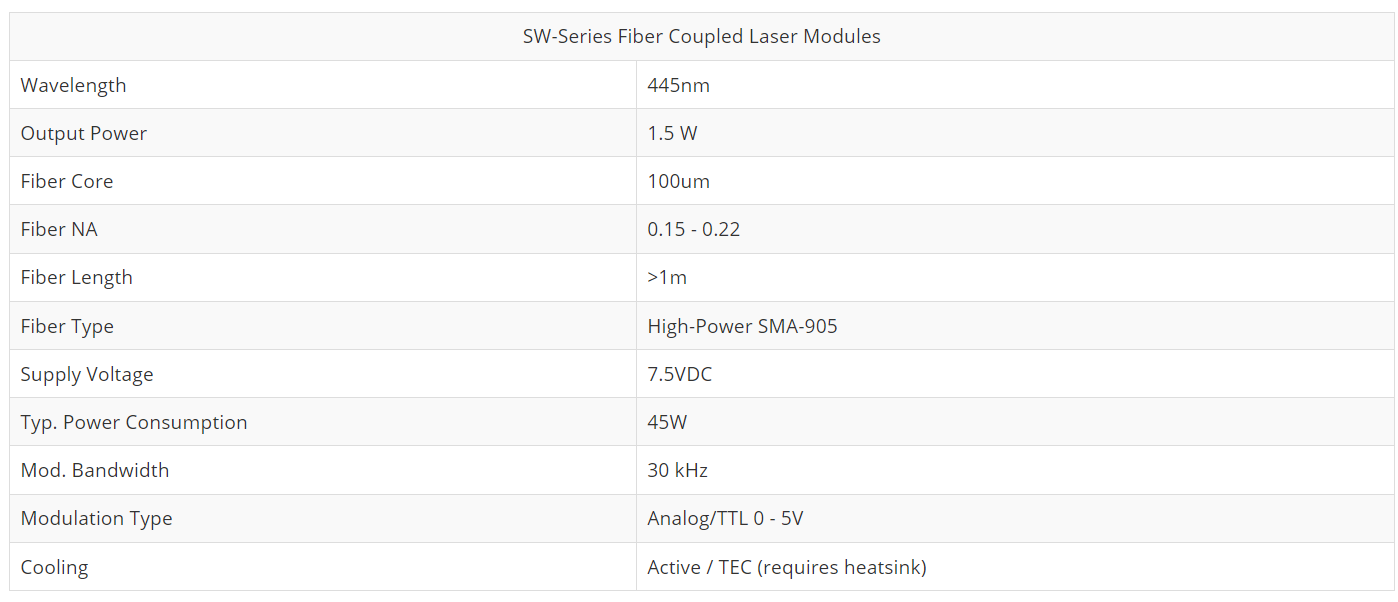

波長: 445nm-
出力: 1.5W-
冷却方法: Active / TEC (requires heatsink)

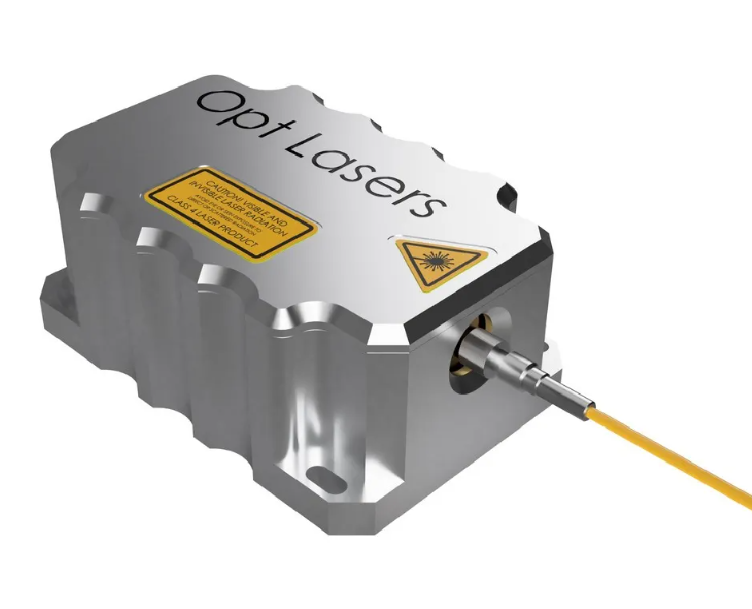

SW-Series Laser Modules is a series of modules with single wavelength (single color) fiber coupled into a multimode fiber. As the light source high power visible laser diode is used. SW - Series laser modules are available in 405nm, 450nm, 520nm and 638nm at various power levels.


【Product Features】
High-Power
Compact Design
Detachable Fiber
Active Cooling
Long Lifetime
High-Power SMA fiber with metal jacket
Thermal Protection


【Applications】

Lightening and Illumination
Phosphor Illumination
Medical and Therapeutics
Forensic
