型番： メーカー：dbm Optics 商品コード：L003070
Optical Power Meter for Telecommunications
パルスの最大繰返し: < 100Hz - 1000Hz
単位: Watts,dBm,Joules
テクノロジー: Thermopile,Integrated Meter / Monitor,Integrating Sphere,Si Photodiode,InGaAs Photodiode,Ge Photodiode,Pyroelectric

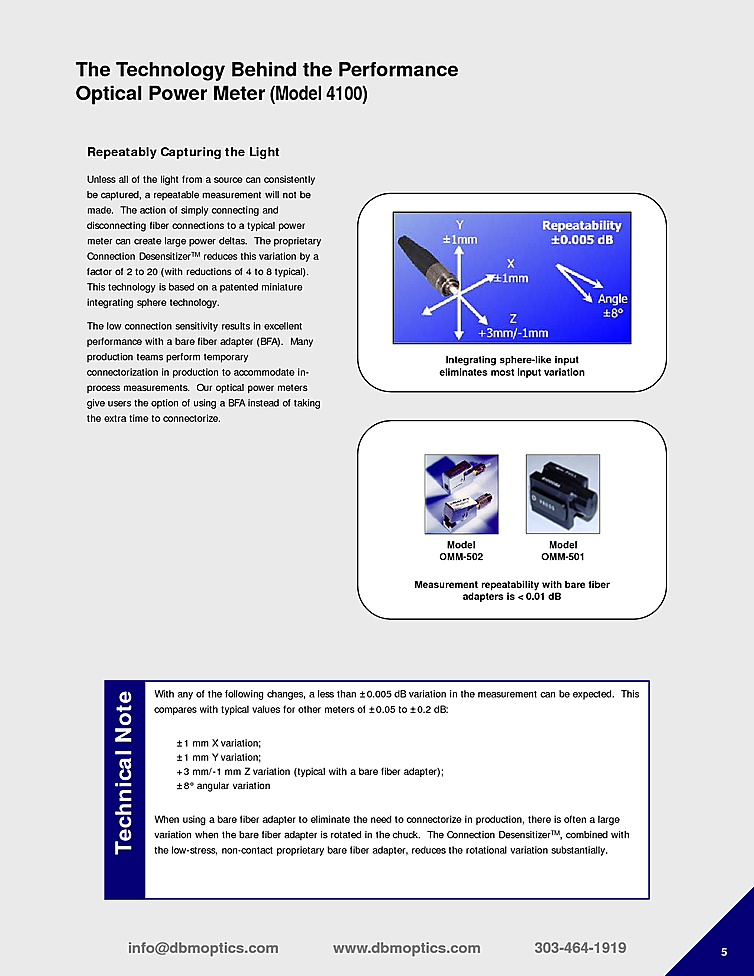

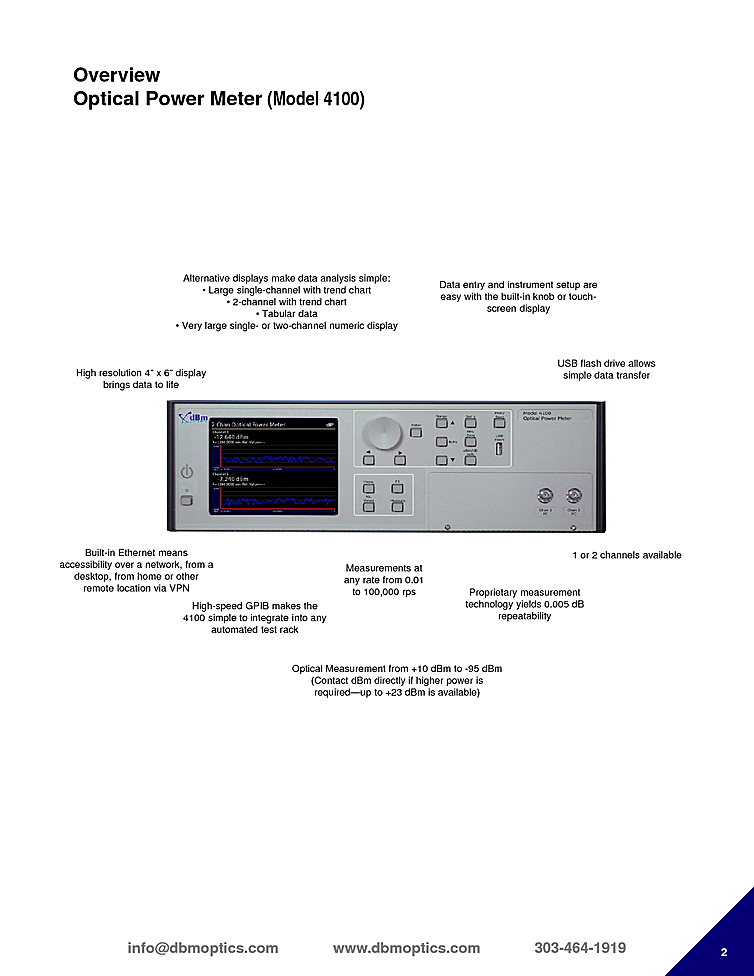

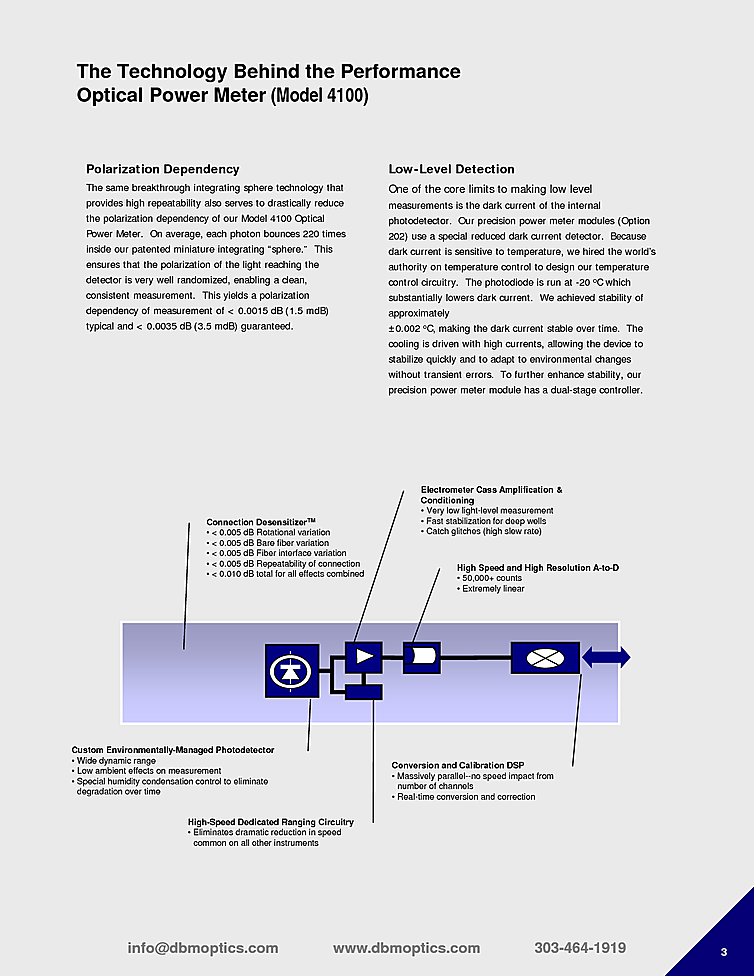

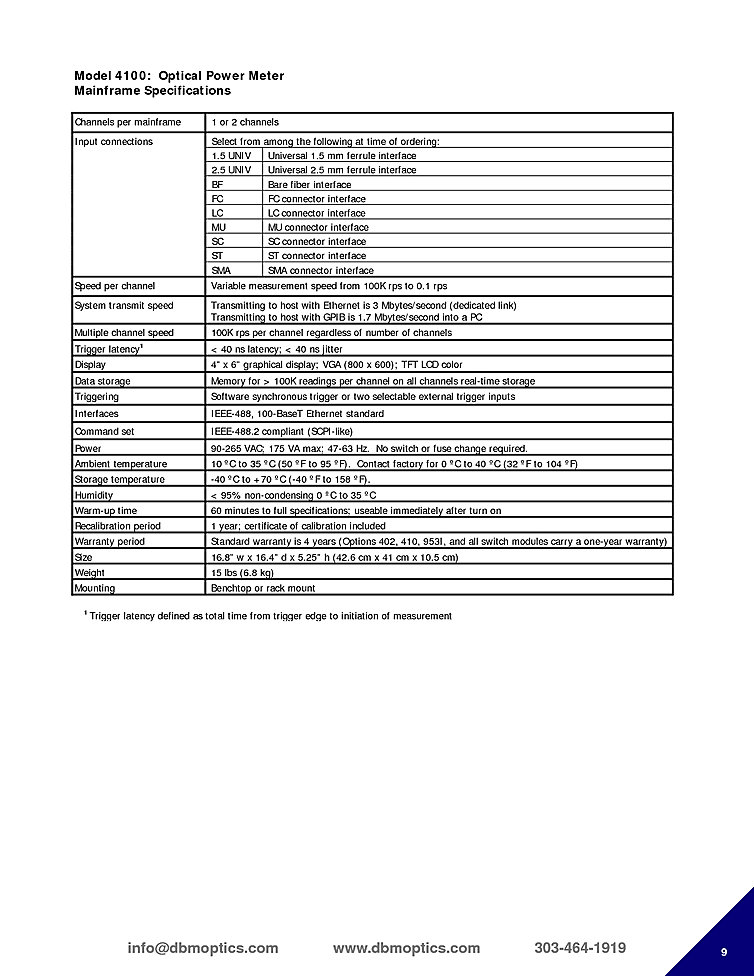

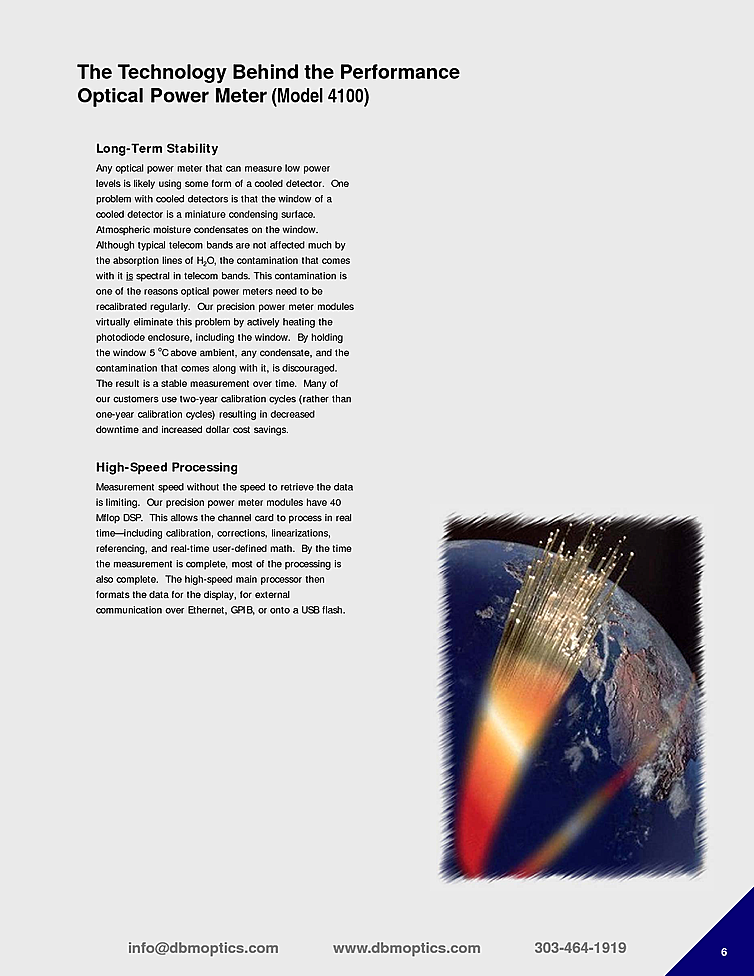

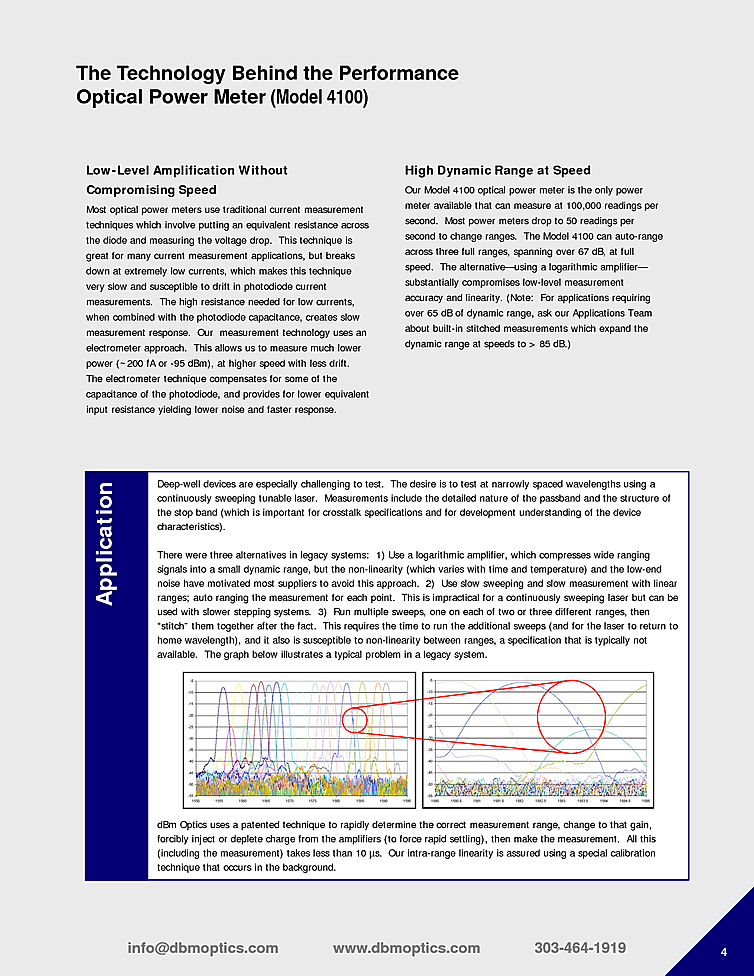

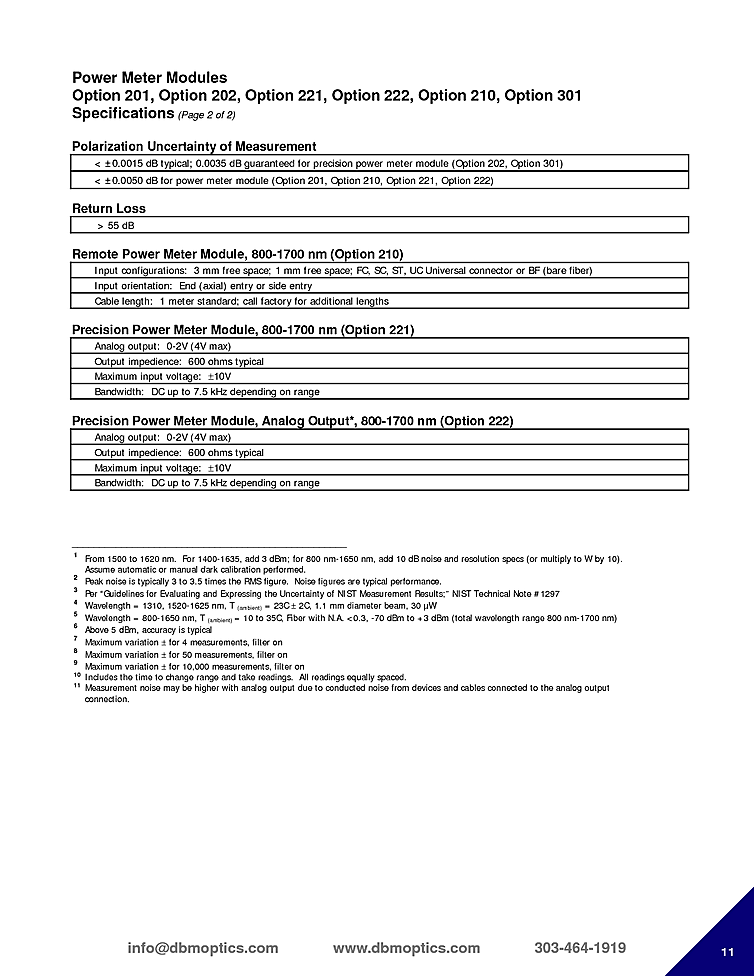

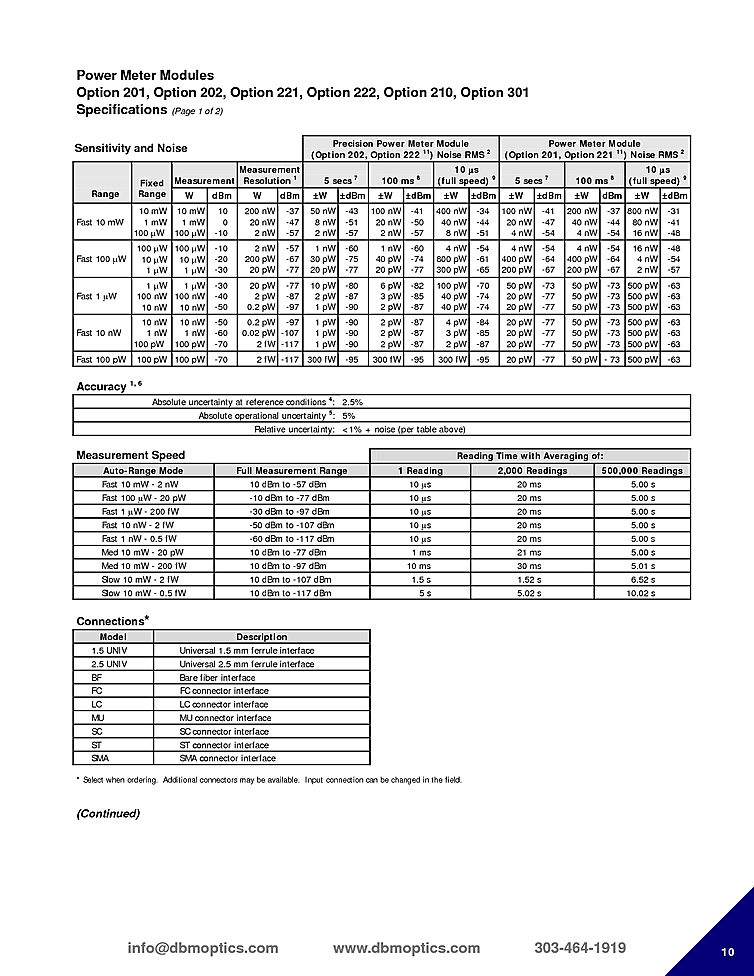

Integrated meter and sensor from dBm Optics provides fast, accurate power measurement from 800nm to 1700nm. Wide dynamic measurement range from +10 dBm to -95 dBm. Optical power sensors are integrated into the benchotp meter providing a compact easy to use platform for measurement of telecommunication laser diodes. Low Polarization Dependency is possible from patented technology that achieves < 0.0015 dB which provides error-free measurement, even with highly polarized light. For automated tests the optical power meter has built in GPIB or Ethernet remote interfaces. The optical power meter can also output results to a USB port for easy data storage and retrieval.
