型番：ATLEX-LR　メーカー：ATL Lasertechnik GmbH　商品コード：L003811

Excimer Laser for Low Duty Cycle Applications: ATLEX-LR

Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR
Excimer Laser for Low Duty Cycle Applications: ATLEX-LR

波長: 193nm-
エネルギー: -12mJ
パルス幅: 5 ns
ビーム径: (V x H) 4 x 6 mm
拡がり角: (V x H) 1 x 2 mrad
エネルギー安定性: < 2 %
重さ: 60 kg
冷却方法: Air

A new generation of compact air-cooled, excimer lasers, designed for low duty cycle applications


【Main features】

Extremely fast pulse rise-time and peak power density
Laser head volume < 3l
TMC (Total-Metal-Ceramic) vessel
Integrated vacuum pump & halogen filter
Totally air-cooled, active thermal management

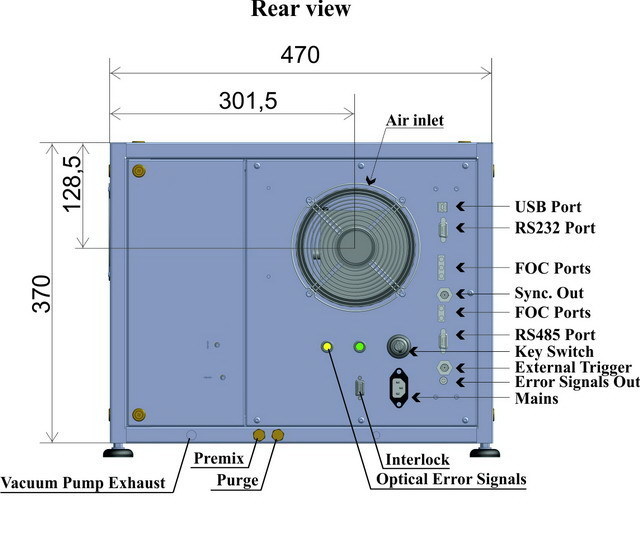

RS-485, RS232, USB and fiber optic interface for system integration
Flushable optics holder
Energy stabilization mode
Dynamic fan speed controls
Meets European CE-standard
RoHS compliance


【Characteristics】

Optimized 193 nm laser performance for LA-ICP-MS.
Similar technical parameters as the ATLEX-I.
Extremely fast pulse rise-time and peak power density.

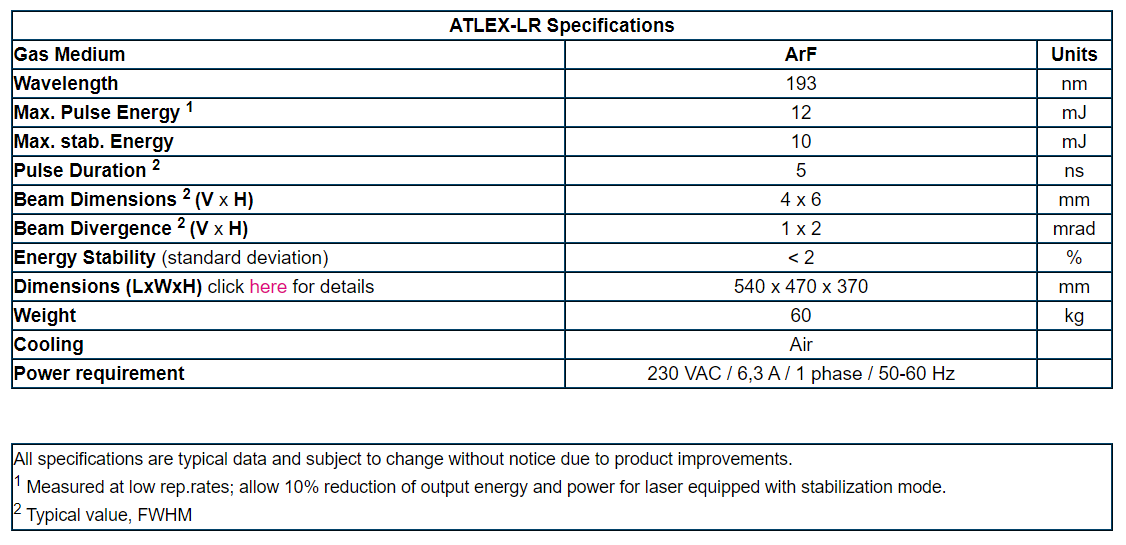

【Specifications】

Gas Medium: ArF
Max. stab. Energy: 10mJ
Power requirement: 230 VAC / 6,3 A / 1 phase / 50-60 Hz
