型番：OSTLDC50 メーカー： 商品コード：L002951
High Power Laser Diode Control Electronics Module, Includes Pre-Configured Mounting Plate & Heat Sink for Laser Module
メーカー希望小売価格: $2,495.00
電流: 50A-50A
Product Overview:

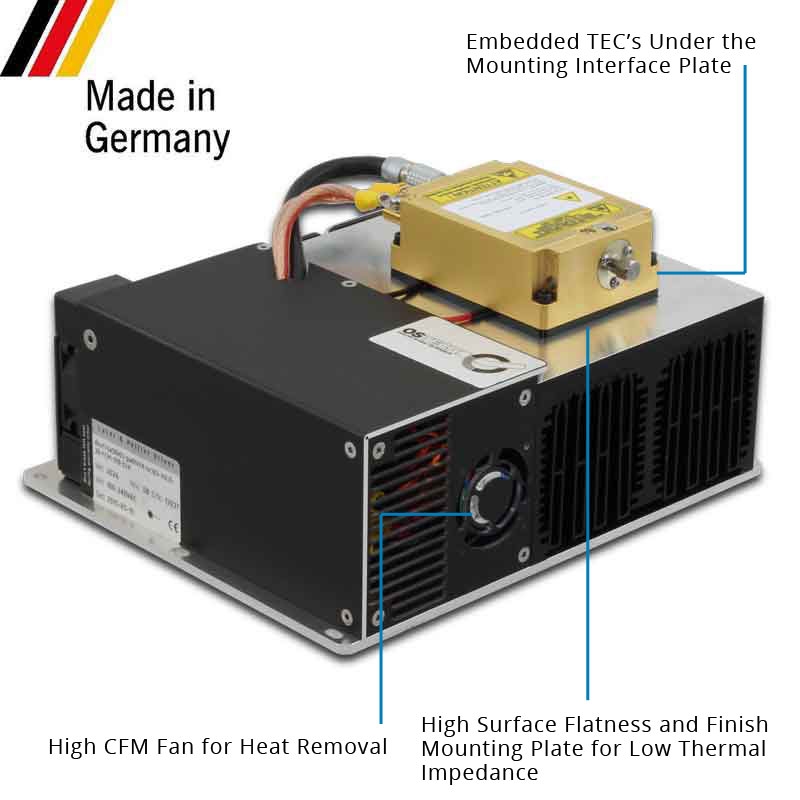

These high performance all-inclusive OEM laser diode control and mounting modules include the current source, TEC controller and heat sink with mounting plate for the laser module integrated into one affordable platform. Multiple laser diode protection features ensure that your laser diode module is protected at all times. Mounting plates are available for many industry standard laser module footprints. Custom mounting plates are typically quick-turn items with a 1 week lead time. These controller modules come with an integrated QCW mode pulse generator, and can accept an external digital or analog modulation input with a 50 kHz bandwidth. They come with a remote I/O by USB or an industrial interface, and ship with control software that includes a simple to use GUI. These units offer precision current source control in both CW and pulsed modes. Pulse-widths as narrow as 10 microseconds are achievable, and available low impedance interface cables to the laser diode ensure clean pulses and eliminate overshoot.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
