型番:LDC-SLT04 メーカー: 商品コード:L002947

High Stability 4 Amp Laser Diode Current Source, 32 Watt Temperature Controller with GPIB Interface

メーカー希望小売価格: $2,730 電流: 4A-4A

Product Overview:

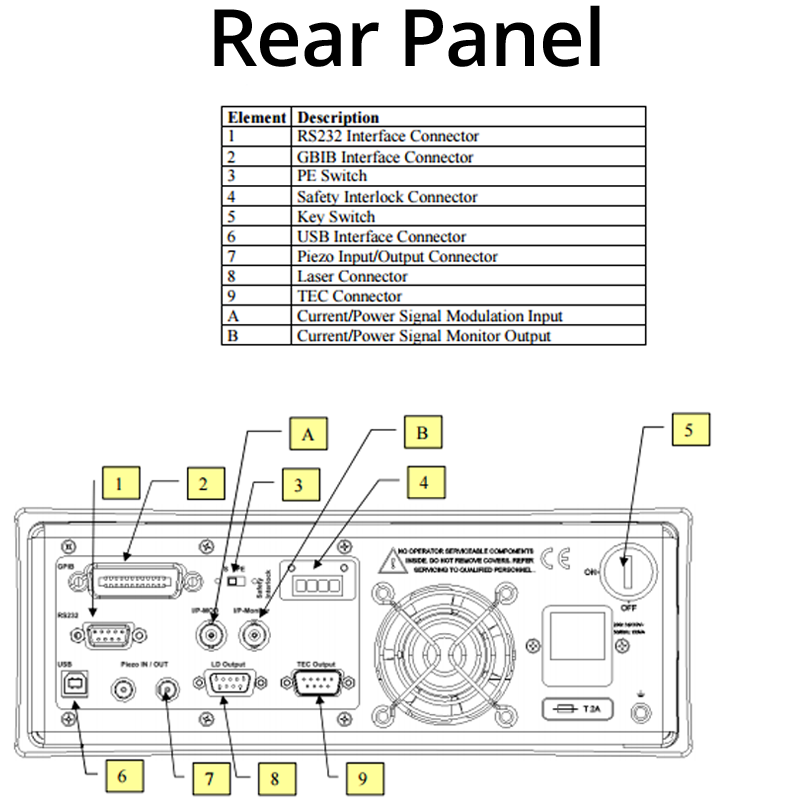

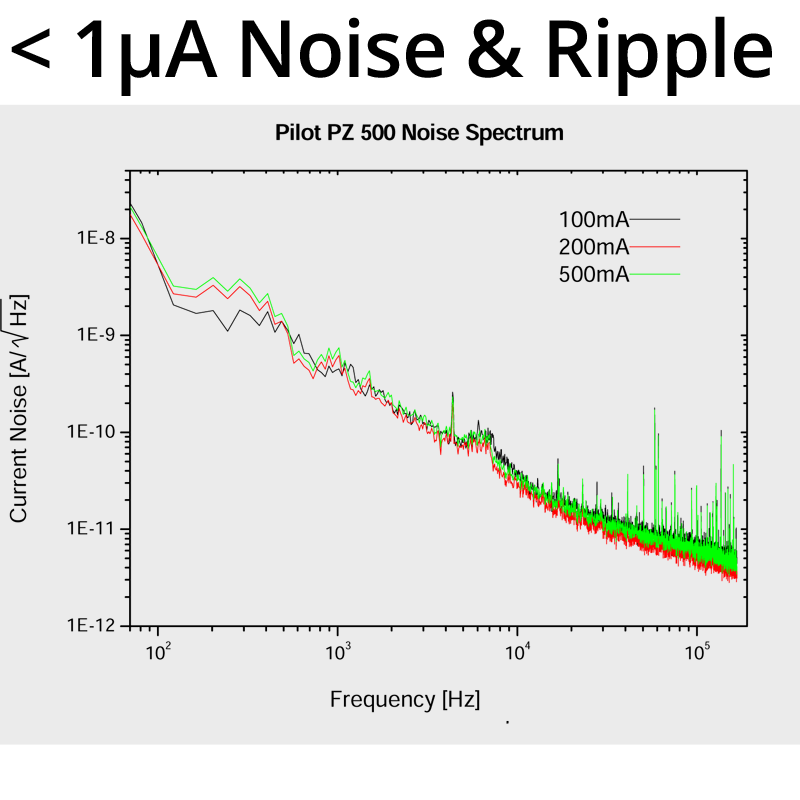

These laser diode controllers from from Sacher LaserTechnik offer high power and high stability drive current with an 3 Amp, 8 Volt TEC controller. Theses drivers are managed by a 16 Bit u-controller with internal flash memory. The output power stage is linear (not switch mode power supply) so the output drive current is much higher stability and lower noise than competing products. In addition to a fully featured front panel interface, these units are offered with GPIB, USB and RS-232 for PC control.

These controllers lead the industry with protection features, including soft-start, current limits and clamping, over-temperature auto shut-down and an audible alarm to alert the user if the laser diode under test has entered a fault condition.

価格 地域 代理店
