型番：OSTTC001　メーカー：　商品コード：L002886

Precision High Power 360 Watt Laser Diode Thermoelectric Temperature Controller

Precision High Power 360 Watt Laser Diode Thermoelectric Temperature Controller
Precision High Power 360 Watt Laser Diode Thermoelectric Temperature Controller
Precision High Power 360 Watt Laser Diode Thermoelectric Temperature Controller
Precision High Power 360 Watt Laser Diode Thermoelectric Temperature Controller

メーカー希望小売価格: $2,152

Product Overview:
The OsTech 360 Watt bench top laser diode TEC controllers offer high stability TEC control at a very affordable price. The output is a bipolar control circuit to offer cooling or heating via Peltier control elements. They offer the user full PIC control loop as well as very fast settling time for high power TEC control applications. These TEC controllers have two temperature sensor inputs, one for control of the TEC and one for control of an external fan sensor for high power fan based control applications. They supports both NTC laser diode thermistors (ie 10K) as well as I.C. sensors such as the pt100.
These controllers prevent over-temperature conditions which can quickly damage high power laser diodes. They can also be used to control other electroptical devices in research and development or manufacturing test applications.

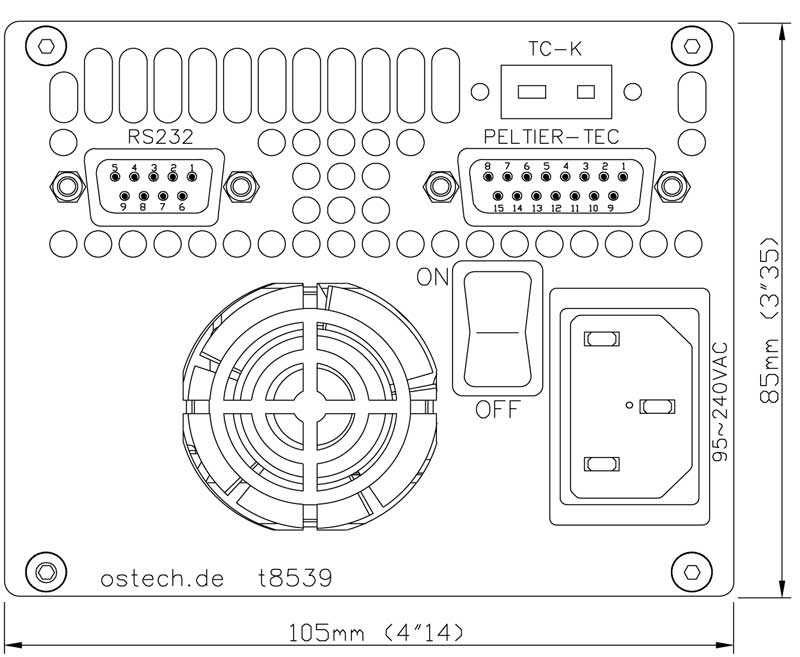

These units can be operated by RS232 or USB interface as well as a fully featured front panel with a simple to use menu command structure. Multiple TEC circuits for temperature stabilization with peltier elements can be implemented
