型番：NOL520-10　メーカー：NOLATECH　商品コード：L000112

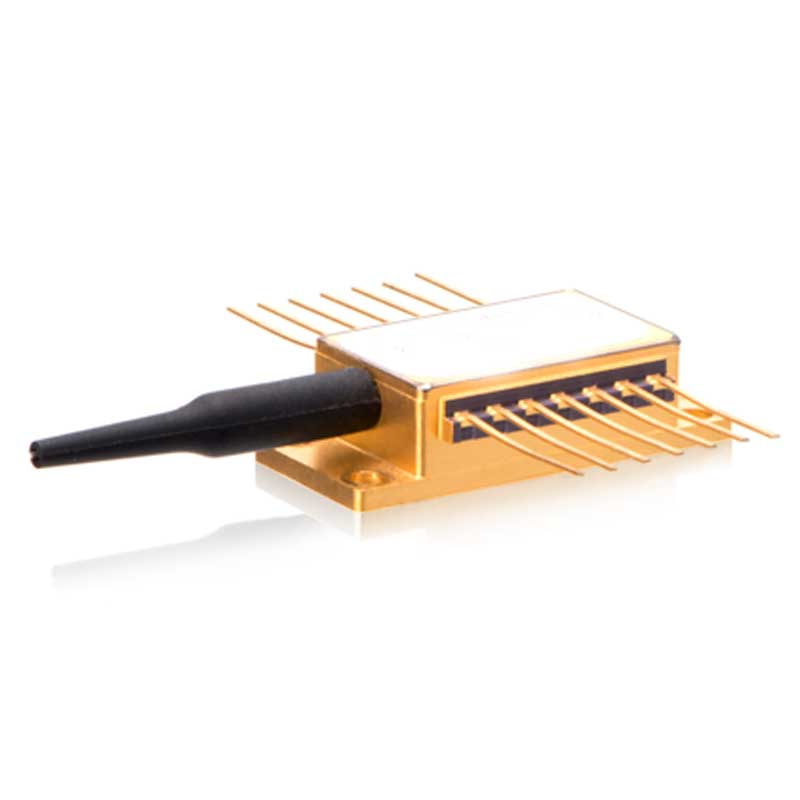

520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power

520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power
520nm Single Mode Laser Diode, 10mW Green Laser Diode with Output Power

メーカー希望小売価格: Request Price 波長: 520nm-520nm
出力: 10mW-10mW
パッケージ: butterfly
テクノロジー: green laser diode

Product Overview:

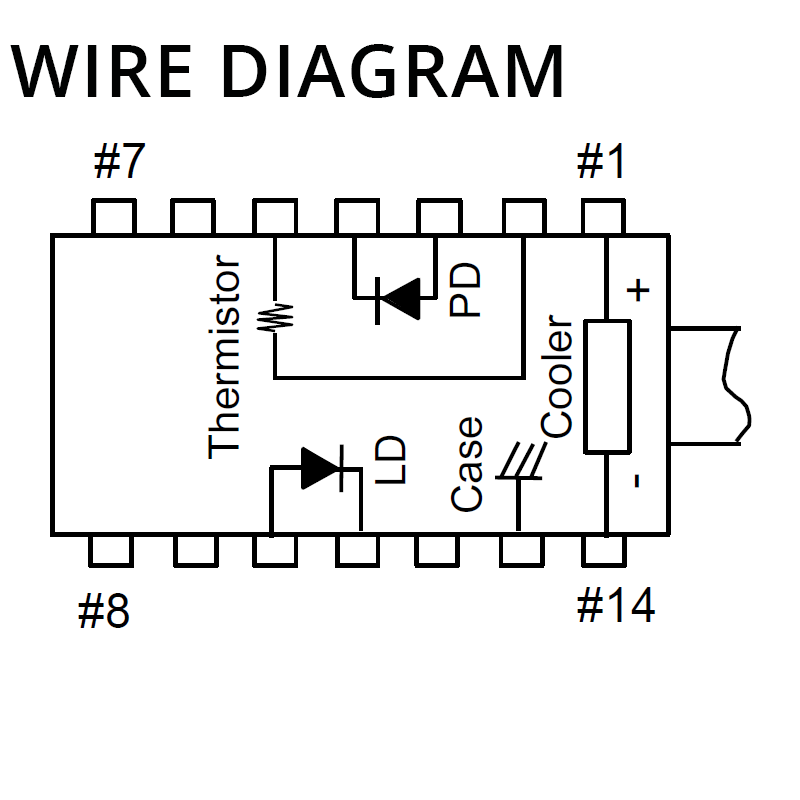

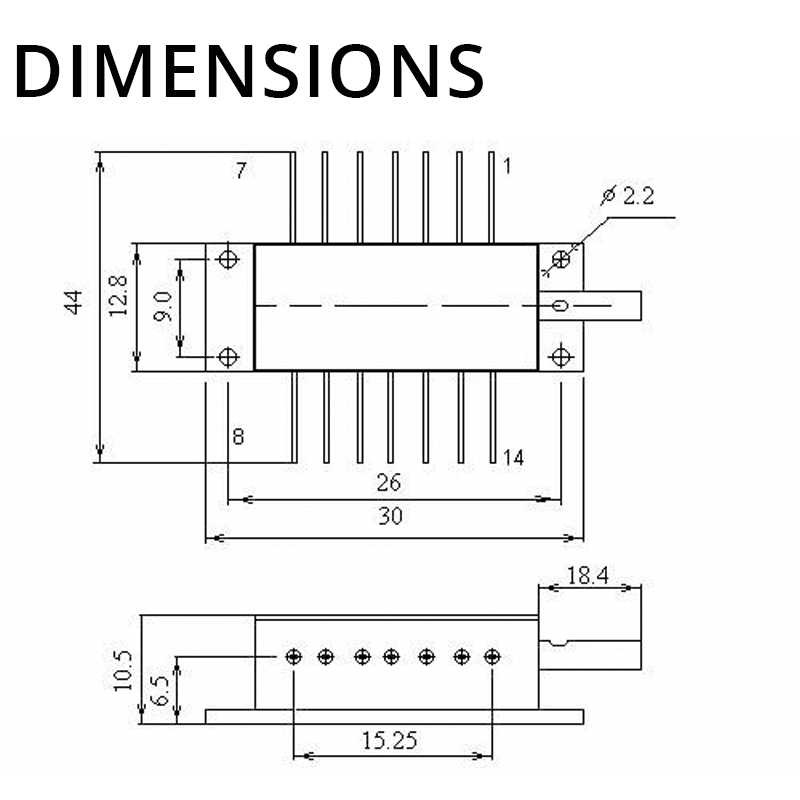

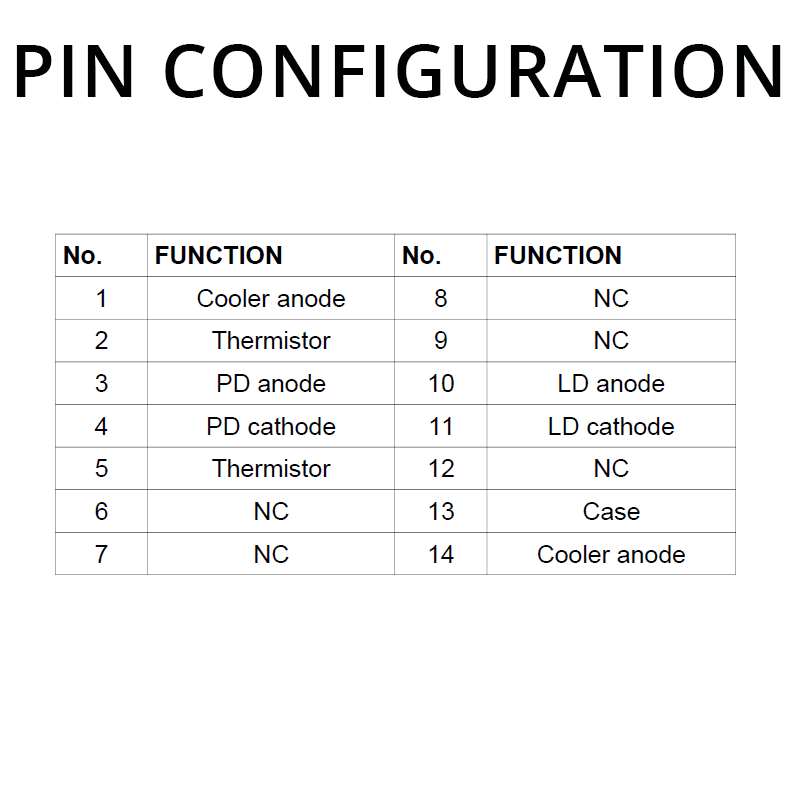

These 520nm butterfly packaged laser diodes offer a single transverse lasing mode of operation. They are designed for for research applications, optical measurement products and communication products. These lasers are packaged in a 14-pin standard butterfly with monitor photodiode and thermo-electric cooler (TEC). These modules are pigtailed with a 0.7 to 1 meter single mode polarization maintaining fiber and connectorized with an FC/PC termination.
