型番：LPLDD6000　メーカー：　商品コード：L002867

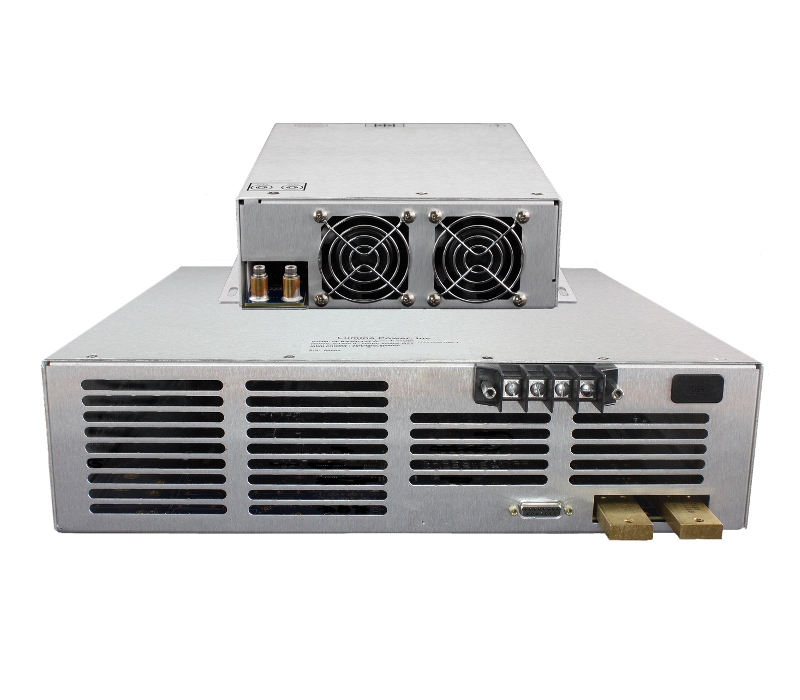

High Power Laser Diode Driver, 250 Amp Output Current, QCW and CW Modes

High Power Laser Diode Driver, 250 Amp Output Current, QCW and CW Modes
High Power Laser Diode Driver, 250 Amp Output Current, QCW and CW Modes
High Power Laser Diode Driver, 250 Amp Output Current, QCW and CW Modes
High Power Laser Diode Driver, 250 Amp Output Current, QCW and CW Modes

メーカー希望小売価格: Request Price 電流: 250A-250A

Product Overview:
These high power drivers offered by Lumina Power are from the LDD series of current sources which offer outstanding power factor of > 0.98 and overall efficiency > 80%. The connector interface offers 15 pins with enable from +5V to +15V (High=run). Operating temperature is specified from 0 degrees to 40 degrees Celsius. This 8 pound module offers rise and fall time of <1ms. Both line and current regulates to <0.5%. The current ripple is specified at <0.5% of the full scale output power and overshoot in the pulsed / QCW mode of operation is specified at less than 1 percent. For more detailed information, refer to the data sheet attached or contact Lumina Power for more information.
