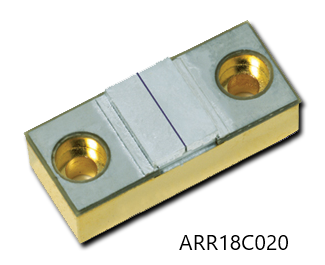

型番：ARR179C020、ARR18C020、ARR179P100、ARR179P200、ARR179P400、ARR179P500、ARR179P800、ARR179P1000、ARR179P1600　メーカー：Northrop Grumman Corporation　商品コード：L001153

1, 4, 5, 8-Bar G1 Packages

1, 4, 5, 8-Bar G1 Packages
1, 4, 5, 8-Bar G1 Packages
1, 4, 5, 8-Bar G1 Packages
1, 4, 5, 8-Bar G1 Packages

G1 Package データシート.pdf

波長: 790nm-1550nm
出力: 20W-1600W
電流: 25A-175A
電圧: 1.7V-16.0V
パッケージ: G-package
テクノロジー: High power laser diode array

The G Package is a standard in the laser industry. It often serves as a building block for large laser systems, or a stand-alone unit in a laboratory environment. It is available with up to eight bars and a maximum QCW output power of 2.4 kW. CEO offers these arrays with many values of bar-to-bar pitch (400 µm, 800 µm, 1.2 mm, 1.7 mm). The G Package is also available in a CW version capable of producing 40W of continuous power.

The G Package mounts easily into laser systems or direct-diode applications. It is available in any of CEO’s standard wavelengths (790-820 nm, 872-890 nm, 930-950 nm), and custom wavelengths are also available. Many configurations are available with fast-axis collimation, with divergence values less than 0.2° (FWHM).

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
