型番：LDPC　メーカー：　商品コード：L002862

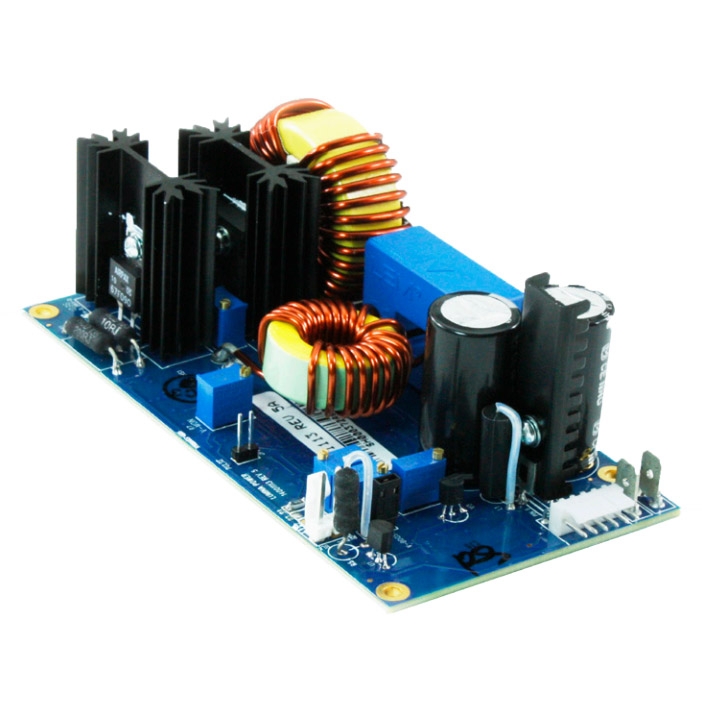

50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted

50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted
50 Amp Pulsed and CW Laser Diode Driver Module, OEM PCB Mounted

メーカー希望小売価格: Request Price 電流: 50A-50A

Product Overview:

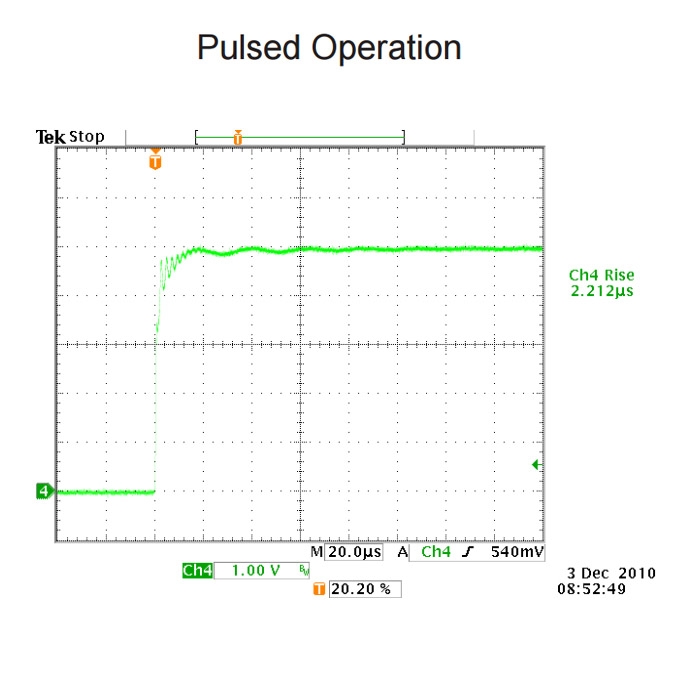

These LDPC series high power drivers are primarily designed for CW operation but have a very short rise/fall time and are easily pulsed using the pulse pin (#3) on the interface connector. These driver modules for laser diodes offer the user a compact low cost power supply for a variety of medical and industrial applications. These supplies can be ordered with any output voltage and current as long as you do not exceed the maximum parameters listed.
The LDPC diode drivers are designed in response to industry demand for smaller packaging as this new light-based technology continues to migrate into applications such as dentistry, dermatology, industrial marking and welding.
The LDPC laser diode drivers are available in two power levels. Models to ~ 100watts (50amps) can be operated from 12 or 15 volts while power levels up to 225 watts require 24VDC input. The LDPC power supplies can be ordered with any output voltage and current as long as you do not exceed the maximum parameters listed.

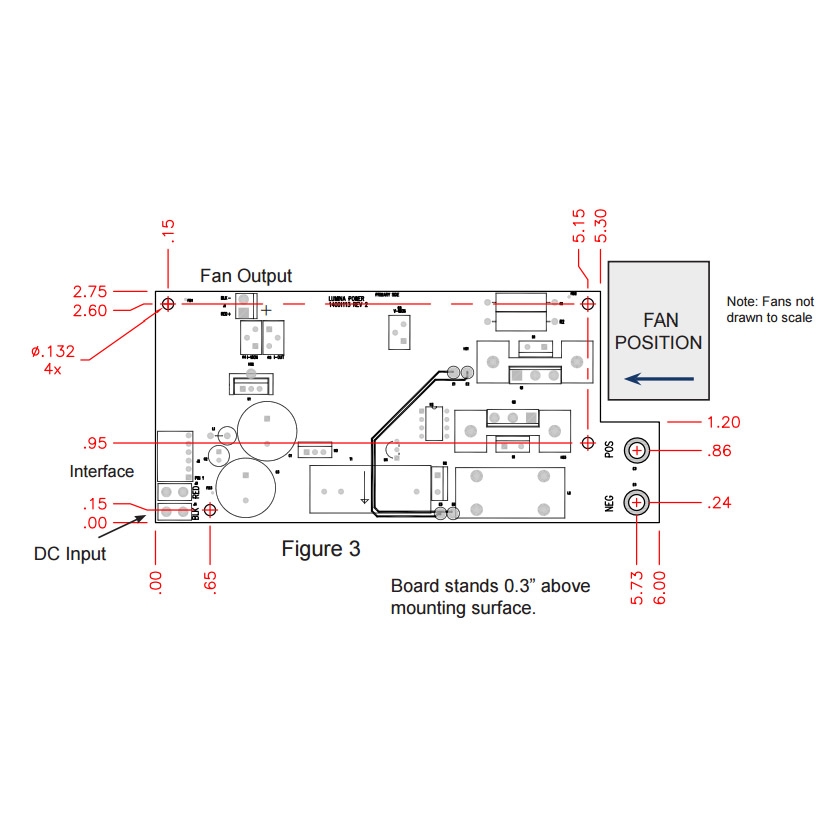

The LDPC interface is a simplified version of the LDD series controls utilizing the same analog 10 volt programming. The connector it utilizes is a 6 pin right angle board mounted Molex #22-05-3061.
