型番：QS905D1S3JT03U、QS905D1S3JT06U、QS905D1S3JT09U　メーカー：LASER COMPONENTS GmbH　商品コード：L003688

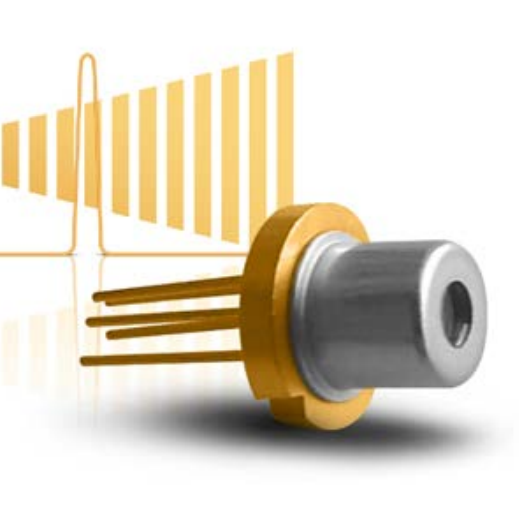

QuickSwitch® Pulsed Laser Diode【QS-905 Series】

QuickSwitch® Pulsed Laser Diode QS-905 Series データシート.pdf

波長: 895nm-915nm
出力: 67W-93W
電流: 1mA-10mA
パッケージ: Hermetic TO-56 package (5 pins)

< Description >
These unique 905 nm pulsed laser diodes generate the shortest pulse duration worldwide for devices of this type. Developed and manufactured by Laser Components Canada, the QuickSwitch® PLDs are made for fast and reliable laser-based distance measurement applications (LiDAR) and scanners for security and aerospace use.

PLD, high current switch and charge storage capacitor are enclosed in a compact TO56 housing. The high current loop is fully integrated into the housing, which is also equipped with an additional ground pin independent from both the signal and supply returns. This results in a Faraday cage effectively protecting the QuickSwitch® and its surroundings from electromagnetic interference.
Depending on the PLD chip, the QuickSwitch® reaches peak powers of up to 93W at 2.5 ns. We will gladly supply a suitable evaluation board for fast commissioning when requested.

< Features >
▪ Hermetic TO-56 package (5 pins)
▪ 905 nm triple junction laser diode for optical output power to 90 W
▪ Typical pulse width of 2.5 ns
▪ Low voltage charge storage: 20 V to 80 V DC
▪ Pulse frequency to 200 KHz
▪ Evaluation board available

< Applications >
▪ High resolution Range Finding for consumers
▪ Laser scanning / LIDAR
▪ Drones
▪ Automotive
▪ Robotics
▪ Military
▪ Industrial
