型番： メーカー：Coherent 商品コード：L002796
Picosecond Laser, 1064nm, 50µJ
波長: 1064nm-1064nm

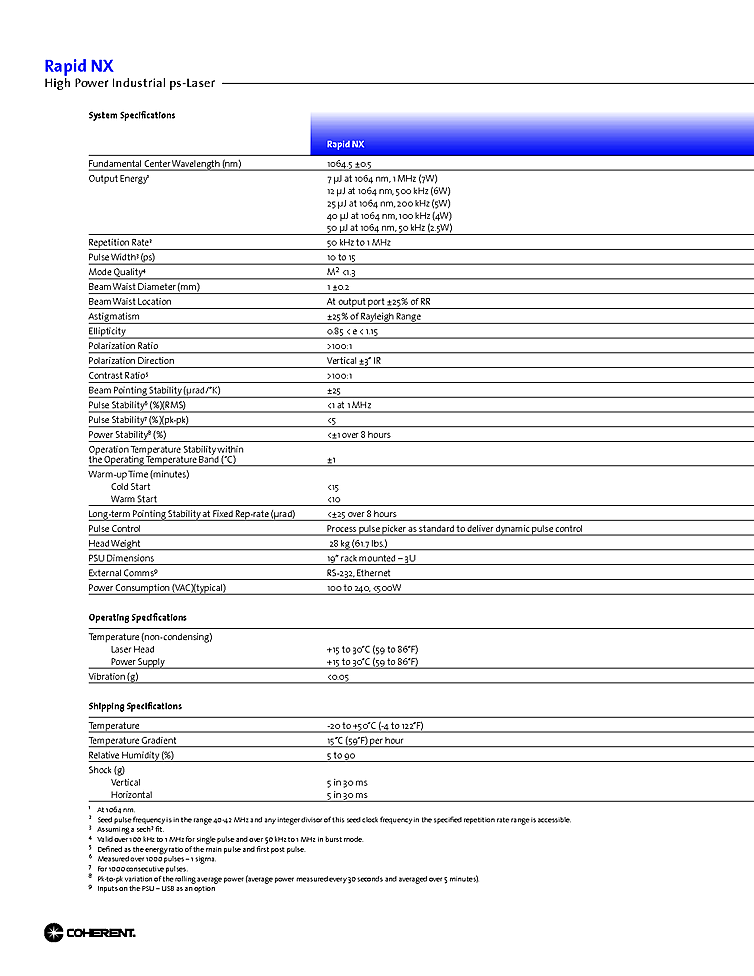

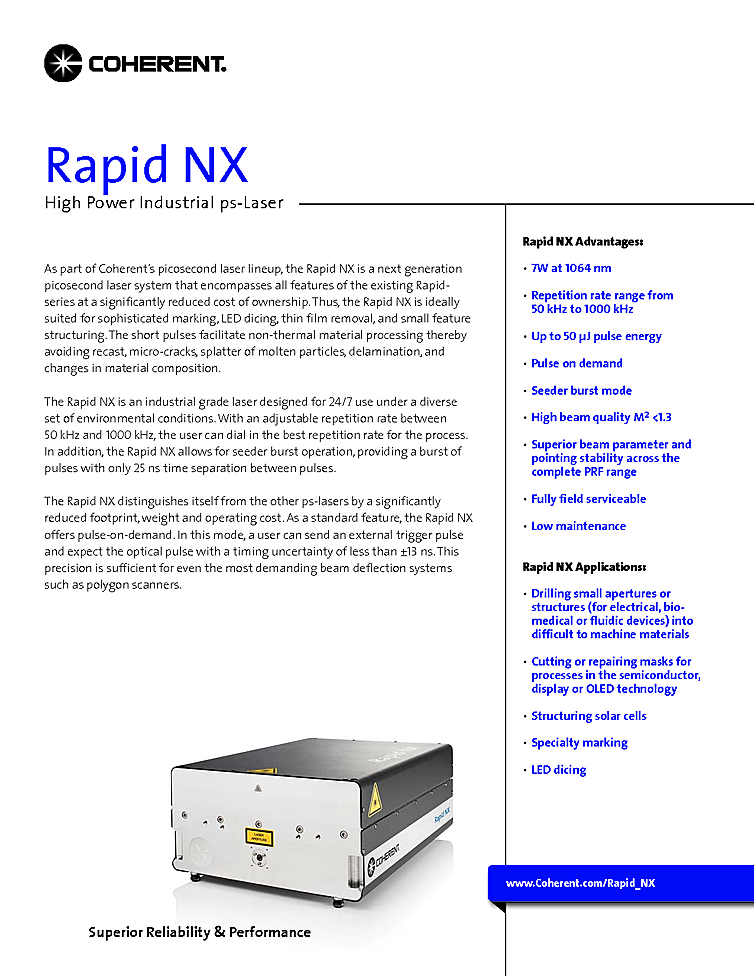

Coherent picosecond solid state laser with high energy output. The laser was designed for sophisticated marking, LED dicing, thin film removal, and small feature structuring. The short pulses facilitate non-thermal material processing thereby avoiding recast, micro-cracks, splatter of molten particles, delamination, and changes in material composition. Picosecond pulse width laser output from 10ps to 15ps at a pulse repetition intervals from 50kHz to 1MHz. Output energy ranges from 7μJ at 1 MHz to 50µJ at 50 kHz with average output powers from 7 watts to 2.5 watts. Coherent laser wavelength is 1064nm.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | コヒレント・ジャパン株式会社 | ||
