型番：　メーカー：SemiNex Corporation　商品コード：L001818

1270 - 19xx nm, > 3300mW

1270 - 19xx nm, > 3300mW
1270 - 19xx nm, > 3300mW
1270 - 19xx nm, > 3300mW
1270 - 19xx nm, > 3300mW

メーカー希望小売価格: $796 波長: 1270nm-1650nm
出力: 3300mW-4500mW
パッケージ: 4-pin-butterfly
テクノロジー: High Power Multi-Mode

1270nm, 1310nm, 1350nm, 1450nm, 1470nm, 1550nm or more High Power Indium Phosphide laser chips, Multi-Mode, from SemiNex Lasers. InP laser chips to meet our customers specific optical and electrical performance needs. Diodes, bars and packages are tested to meet customer and market performance demands.
Typical results and packaging options are shown.

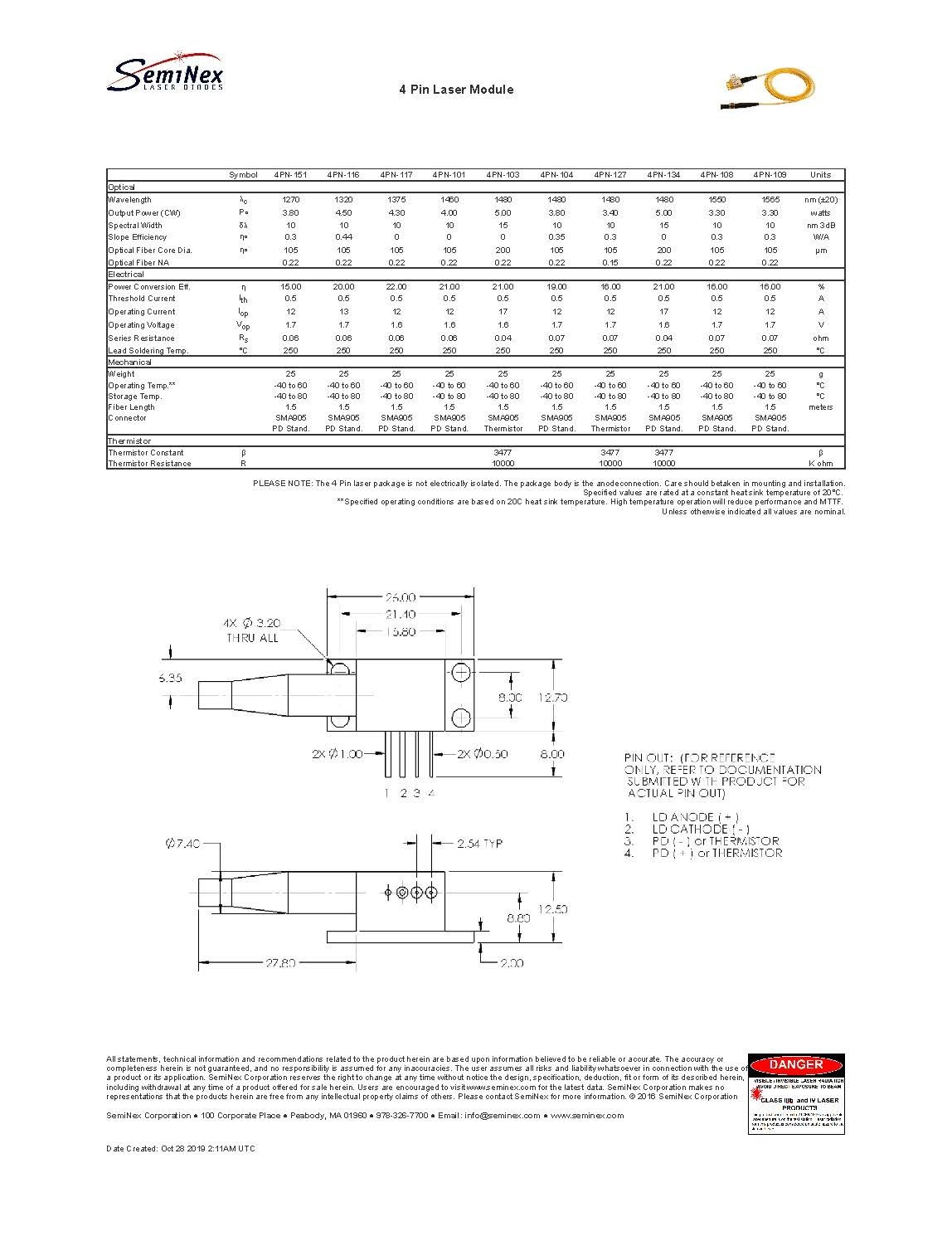

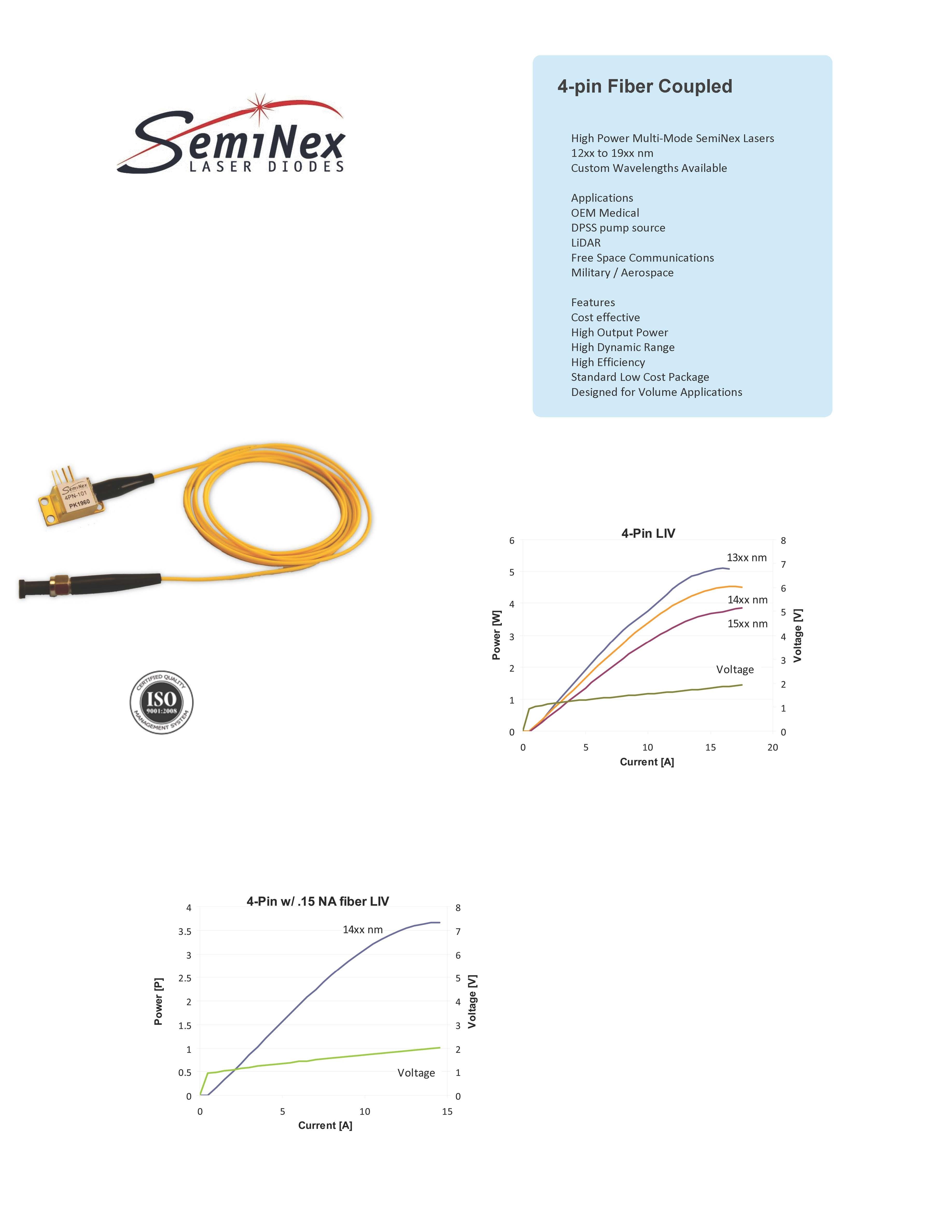

These diode lasers offer > 3.3W of CW Operation Power at wavelengths from 1270nm up to 19xx nm laser wavelengths. Devices are offered in a 4-Pin Fiber-Coupled package. Refer to the attached specification sheet to view a typical continuous wave LIV plot of optical versus current and other information. Threshold current is 0.6 Amps and the operational current is listed at 12 amps.
