波長: 1025nm-1035nm
出力: 5W-50W
エネルギー: 10 µJ-150 µJ
テクノロジー: Femtosecond Laser
パルス幅: < 350 fs to > 10 ps
エネルギー安定性: < 1 % rms over 100 hours
重さ: 23 kg
冷却方法: Satsuma/HP/HP²: Air-cooled、Satsuma HP³: Water-cooled

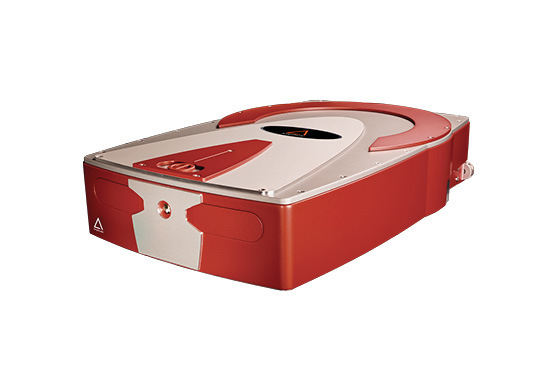

The Satsuma family of femtosecond laser offers versatility in the most compact aircooled laser platform on the market. Satsuma is a cost-efficient solution providing high repetition rate and high energy, up to 150 µJ.

Versatile and full-featured, Satsuma femtosecond lasers are equipped with: FemtoBurst™ (choose number of pulses, rhythms, time between each pulse from 25 to 100 ns) and SuperSync Control for getting more precise synchronization with a high speed scanning system. Satsuma femtosecond laser is available with green, UV and deep UV outputs.

< Key Features >
・Air-cooled up to 20 W
・ FemtoBurst™
・SuperSync Control
・ Optional green, UV and DUV outputs
・Industrial design for 24/7 operation

< Applications >
Industry:
Microelectronics
Micromachining
Flat Panel Display Repair

Medical:
Ophthalmology
Medical Device Manufacturing

Science:
Multiphoton Imaging
Optogenetics
Ultrafast Spectroscopy

< Specifications >
Average Power / Energy Per Pulse:
Satsuma　> 5 W/ > 10 µJ
Satsuma HP　> 10 W / > 20 µJ
Satsuma HP²　> 20 W / > 40 µJ or 150 µJ* (*High Energy Option)
Satsuma HP³　> 50 W / > 40 µJ or 150 µJ* (*High Energy Option)

Pulse Width　< 350 fs to > 10 ps
Repetition Rate　 From single shot to 40 MHz
Central Wavelength　1030 +/- 5 nm
Beam Quality　M²<1.2
Beam Circularity　> 87 %
Beam Pointing Stability　<25 µrad/°C
Long Term Mean Power Stability　< 1 % rms over 100 hours
Warm-up Time　< 30 min

< Dimensions >
All Models　52 x 33 x 12 cm

< Weight >
All Models　23 kg
