型番：　メーカー：Innovative Photonics Solution　商品コード：L001702

976nm Spectrum Stabilized Laser

波長: 976nm-976nm
出力: 6000mW-6000mW
パッケージ: butterfly
テクノロジー: narrow linewidth

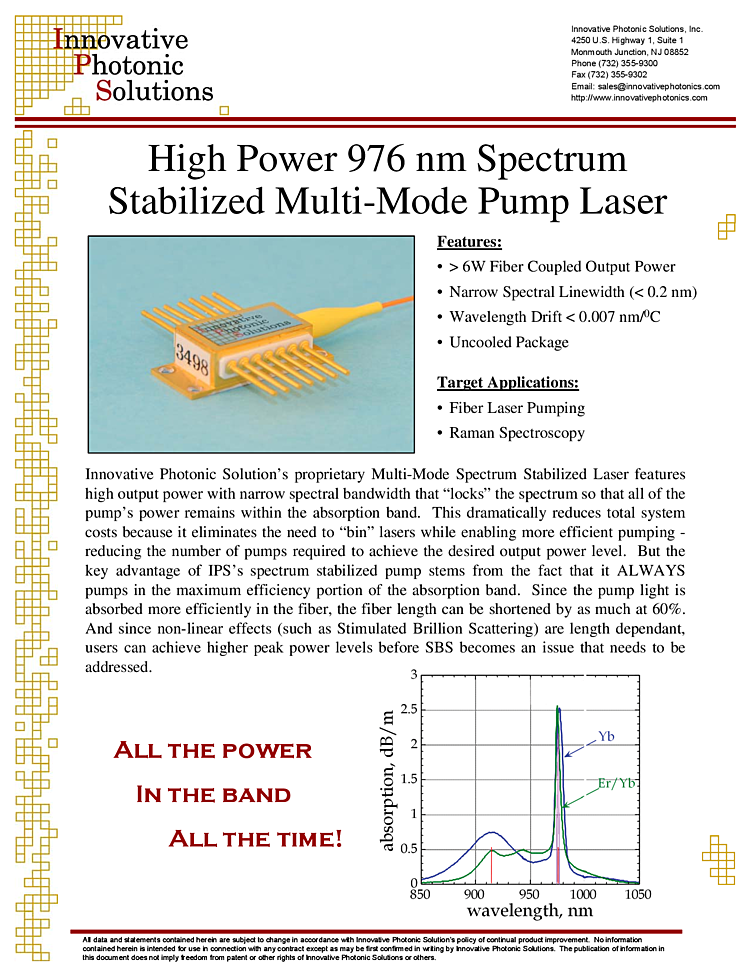

976nm Spectrum Stabilized

Features:
- > 6W Fiber Coupled Output Power
- Narrow Spectral Linewidth (< 0.2 nm)
- Wavelength Drift < 0.007 nm/0C
- Uncooled Package

Target Applications:
- Fiber Laser Pumping
- Raman Spectroscopy

Innovative Photonic Solution’s proprietary Multi-Mode Spectrum Stabilized Laser features high output power with narrow spectral bandwidth that “locks” the spectrum so that all of the pump’s power remains within the absorption band. This dramatically reduces total system costs because it eliminates the need to “bin” lasers while enabling more efficient pumping - reducing the number of pumps required to achieve the desired output power level. But the
key advantage of IPS’s spectrum stabilized pump stems from the fact that it ALWAYS pumps in the maximum efficiency portion of the absorption band. Since the pump light is absorbed more efficiently in the fiber, the fiber length can be shortened by as much at 60%. And since non-linear effects (such as Stimulated Brillion Scattering) are length dependant, users can achieve higher peak power levels before SBS becomes an issue that needs to be
addressed.

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
代理店が登録されていません

976nm Spectrum Stabilized Laser
