型番：　メーカー：Photonics Industries International Inc.　商品コード：L002679

Nanosecond Laser, 532nm, 150µJ

Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ
Nanosecond Laser, 532nm, 150µJ

波長: 532nm-532nm

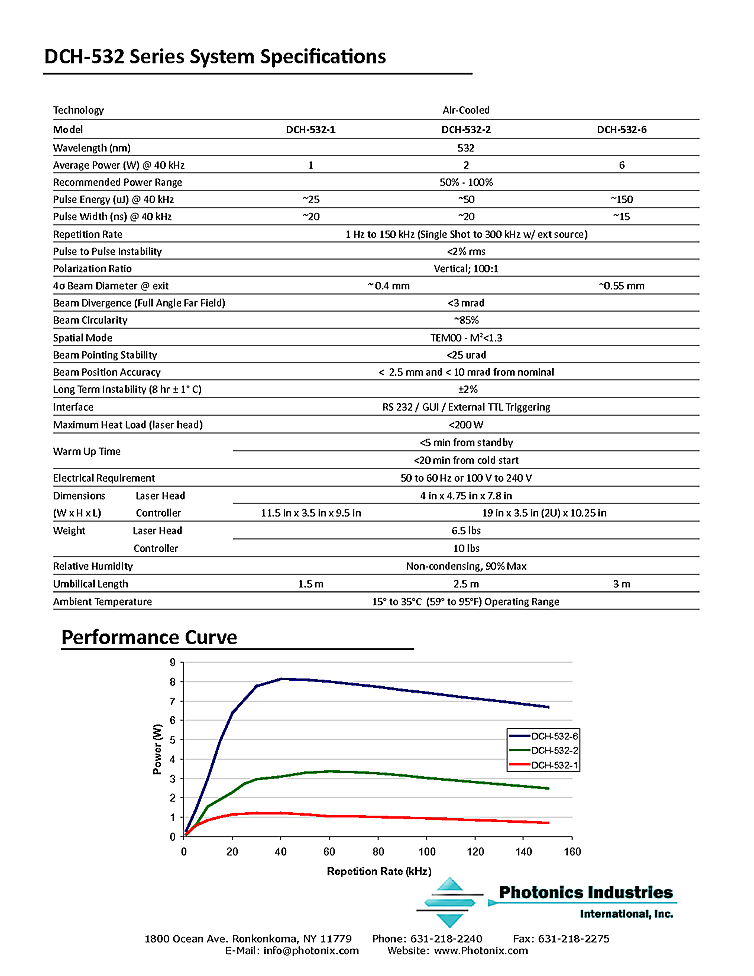

Nanosecond laser using Nd:YVO technology from Photonic Industries. Laser features Air-cooled Design, Field Replaceable Pump Diodes, Patented Intracavity Green Generation, Total Pulse Control, and Compact, Rugged, Monolithic Laser Head. Beam quality is M2<1.2 with spatial mode of TEM00. Nanosecond laser output can be adjusted form 1Hz to 300kHz with a pulse 20ns. Average power output is up to 6 watts. Long term instability up to +/-2% over 8 hours with temperature changes of ± 1° C. Laser parameters and adjustments to laser operation can be achieved via RS-232 Computer Control. Nanosecond laser output energy up to 150µJ at a wavelength of 532nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 北海道 レイチャーシステムズ株式会社
