メーカー希望小売価格: CCM-std ¥456,139 / CCM-HP ¥574,933 出力: -200W
電流: 13A-21A
電圧: 23V-36V
冷却方法: Air

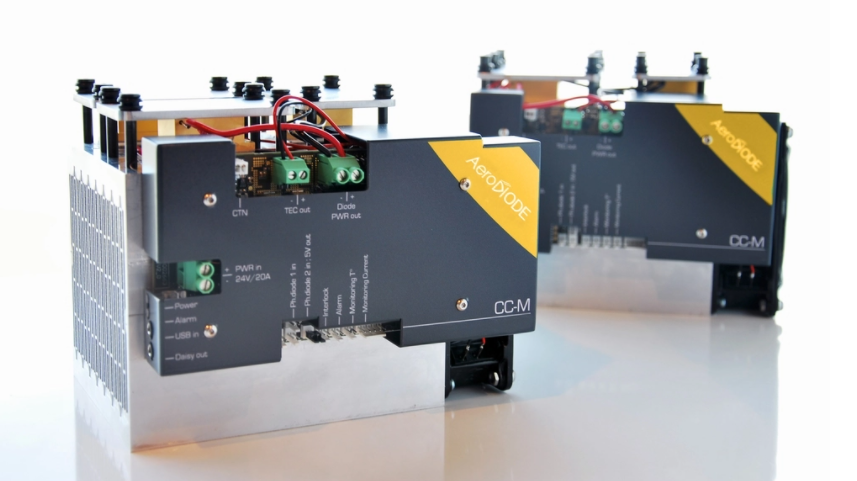

This High Power Laser Diode driver is compatible with all multimode fiber coupled multi-emitter laser diodes from Nlight, Lumentum, IPG, Dilas etc.

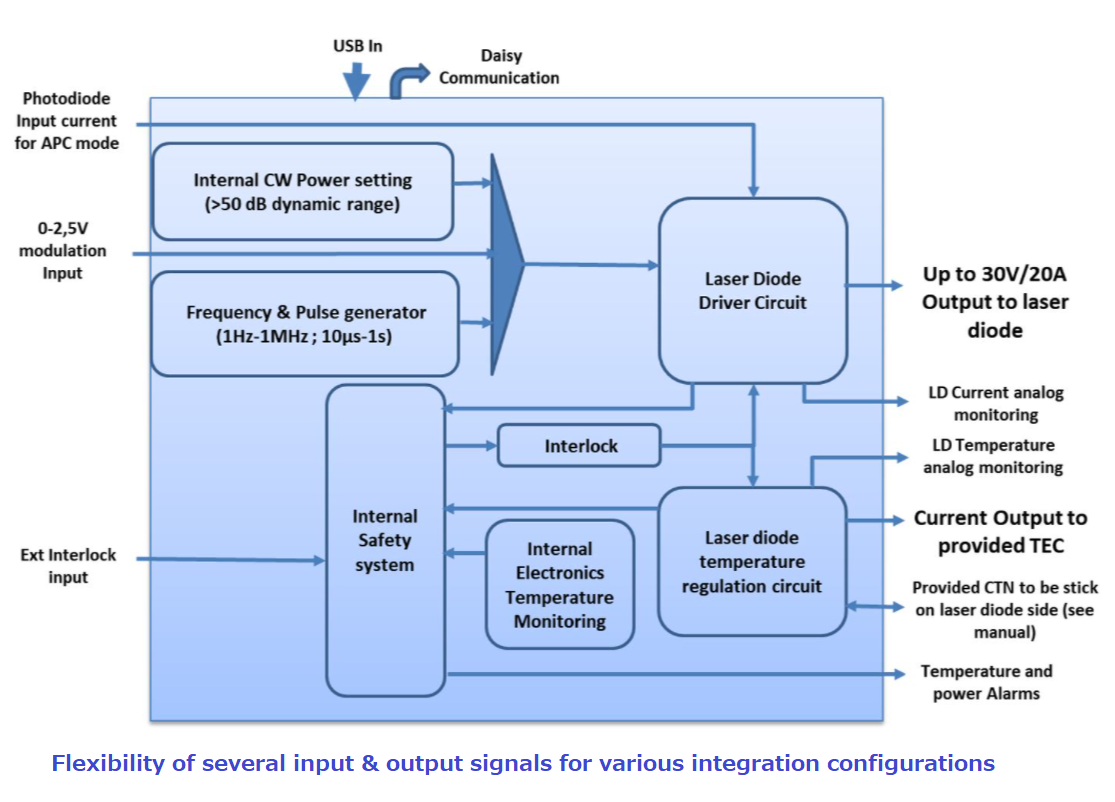

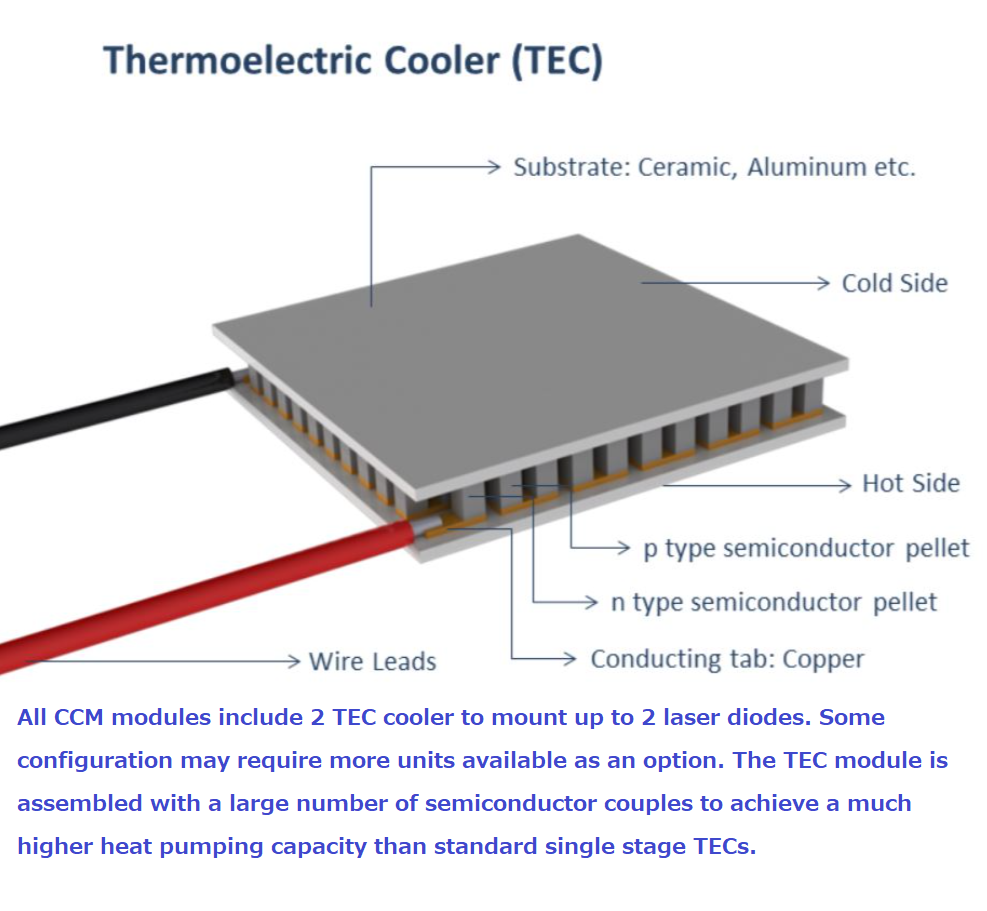

It is a low noise complete solution with 36V-21A laser driver, TEC controller and air-cooling fan regulation. TEC and CTN elements are provided and compatible for single or multiple laser diode driving. This high power laser diode driver is generally used to deliver CW current. It is also able to deliver pulses which are generated internally by an on-board pulse generator, or on-demand from an external analog modulation signal. It is the most compact device with such performances and this makes it an ideal tool for OEM integration into your product.

< High power laser diode driver Key features >

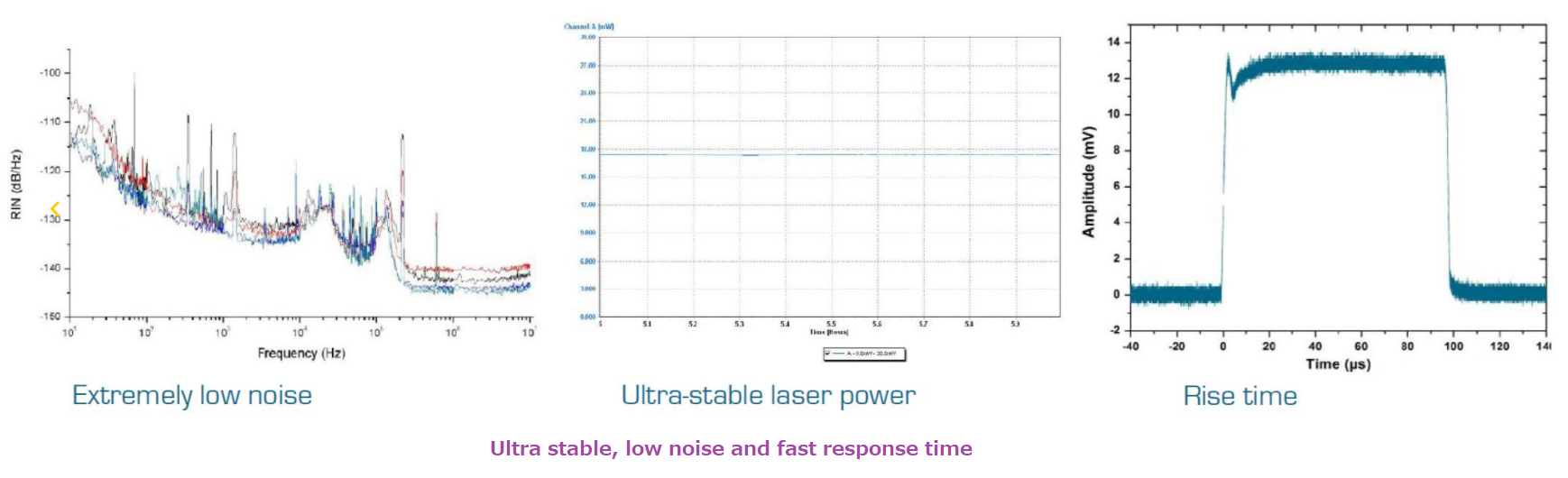

・Ultra-stable laser power for short and long term operations
・Up to 200W CW power with new generation laser diodes
・Max modulation frequency : 100 kHz
・This product can work in both CW or Pulsed mode.
・Highly efficient (> 80 % from plug)

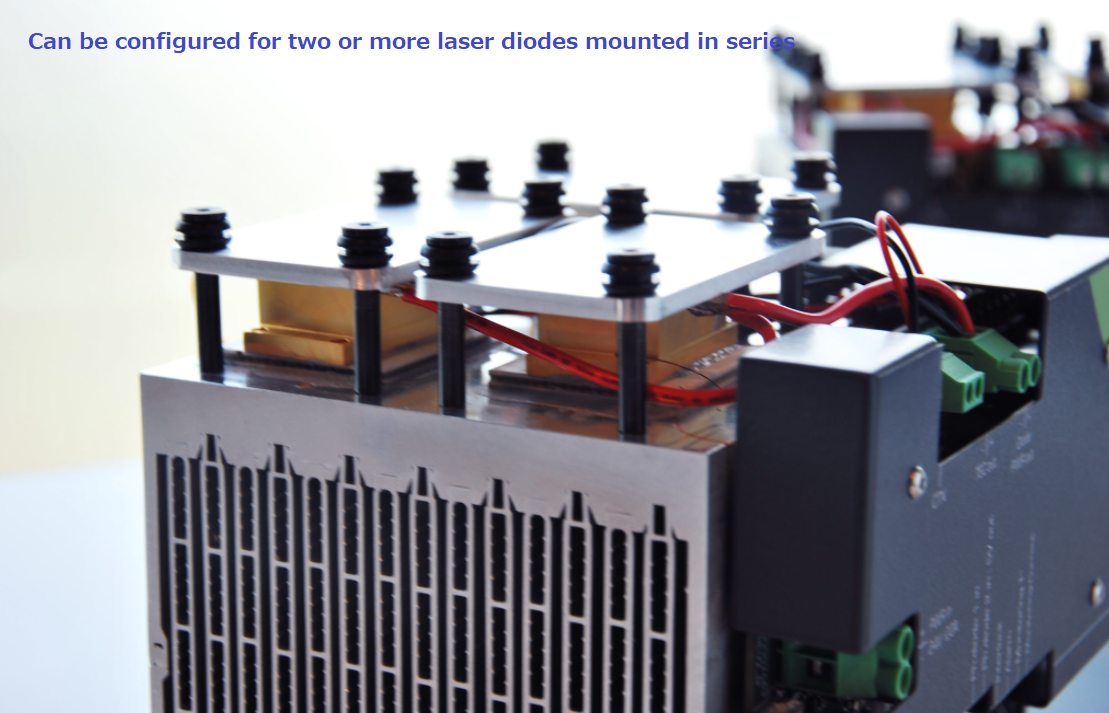

・Can be configured for several laser diodes mounted in series
・Automatic fan regulation for quiet operation at low power

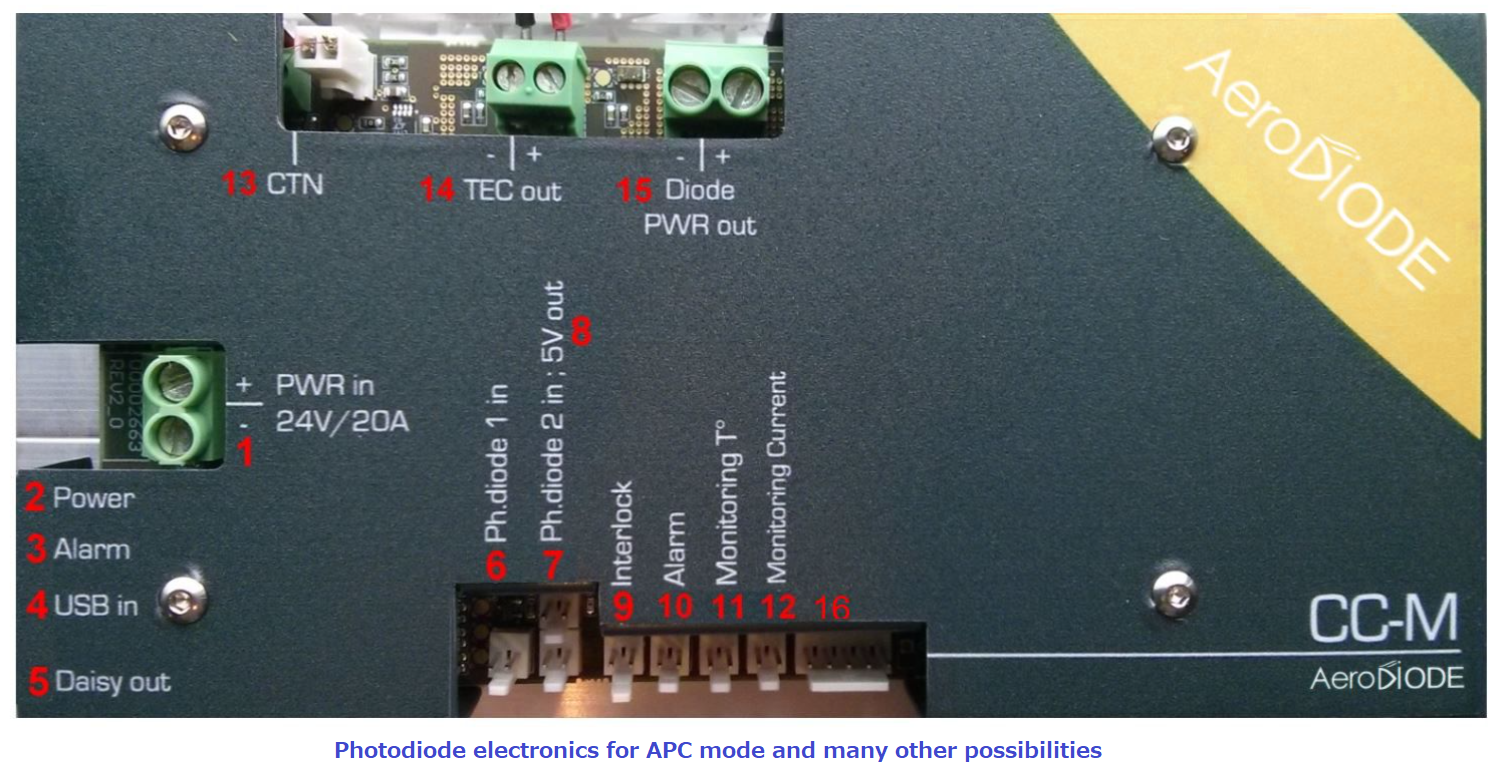

・Photodiode power monitoring input
・ACC (Automatic Current Control) and APC (Automatic Power Control) modes
・Smart control (USB interface & GUI)
・Many available libraries (LabVIEW, DLLs, Hexa, Python)

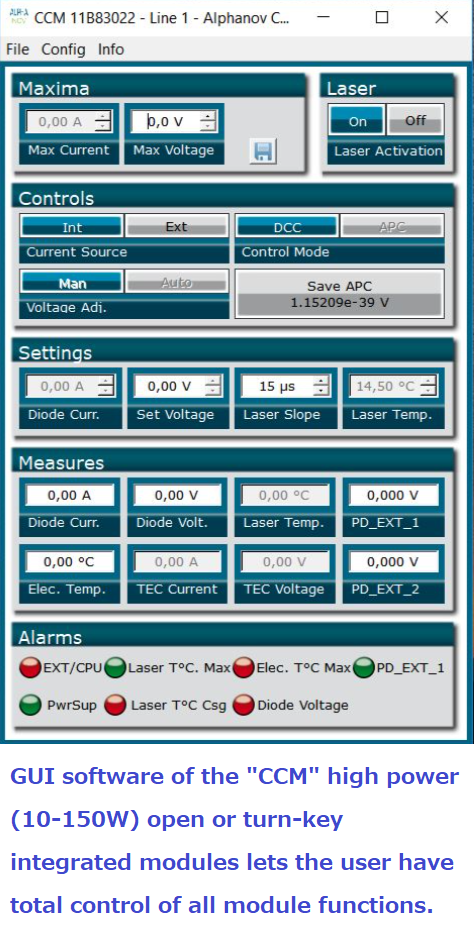

Applications of this high power laser diode driver include fiber laser pumping, nondestructive control etc. CCM high power laser diode driver is part of our “Multiboard” laser driver and synchronization module family. These are are ideal solutions to help R&D teams reach their best performance by facilitating fast and cost effective development of integrated solutions. The GUI software lets the user have total control of all module functions.
