型番:Tangerine、Tangerine HP、Tangerine HP²、Tangerine SP メーカー:Amplitude Laser Inc. 商品コード:L002651

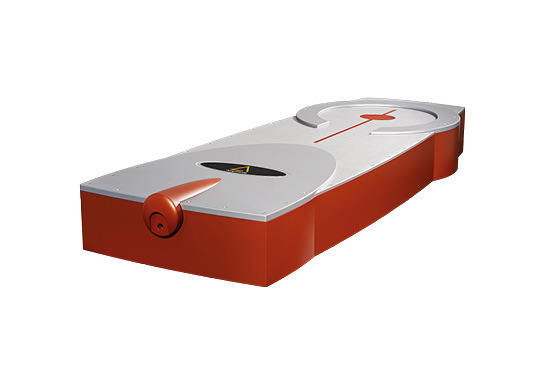

Highest Pulse Energy Femtosecond Laser : Tangerine

波長: 1025nm-1035nm
出力: 20W-50W
エネルギー: 100µJ-250µJ
テクノロジー: Femtosecond Laser
パルス幅: Tangerine/Tangerine HP/Tangerine HP²: < 350 fs to > 10 ps、Tangerine SP: < 150 fs
エネルギー安定性: < 1 % rms over 100 hours
重さ: Laser Head: 93 kg、Power Supply 1: 15 kg、Power Supply 2: 12 kg
冷却方法: Water-cooled

Tangerine is a powerful femtosecond laser combining both high repetition rate (going up to 40 MHz and adjustable according to your needs) and high energy per pulse going up to 250 µJ.

Versatile and full-featured, Tangerine femtosecond laser is notably equipped with SuperSync Control for getting more precise synchronization with a high speed scanning system, and Short Pulse (< 150 fs pulsewidth).

This laser can also be associated with a large range of add-ons such as industrial frequency conversions down to deep UV, tunable Mango OPA platform and Non-Linear Compression to achieve pulse duration from < 100 fs down to the few cycle regime, ideally suited to generate high flux XUV radiations and attosecond pulses.

The industrial Tangerine femtosecond laser is the ideal solution for research & development in micro processing and scientific applications.

Tangerine is part of Amplitude’s femtosecond lasers range, internationally recognized as reliable and stable. Their very short pulse widths lead to both the lowest heating effect on the market and the best ablation efficiency, reaching an unparalleled process quality.

< Key Features >
・Short Pulse option < 150 fs
・ SuperSync Control
・Frequency conversion from Soft X-ray to THz

< Applications >
Industry:
Microelectronics
Micromachining

Science:
Ultrafast Spectroscopy
High Harmonic Generation / Attoscience

< Specifications >
Average Power / Energy Per Pulse:
Tangerine > 20 W / > 100 µJ
Tangerine HP > 35 W / > 200 µJ
Tangerine HP² > 50 W / > 250 µJ
Tangerine SP Up to 50 W / Up to 200 µJ

Pulse Width:
Tangerine/Tangerine HP/Tangerine HP² < 350 fs to > 10 ps
Tangerine SP < 150 fs

Repetition Rate From single shot to 40 MHz
Central Wavelength 1030 nm +/- 5 nm
Beam Quality TEM00, M²<1.3
Beam Circularity > 87 %
Long Term Mean Power Stability < 1 % rms over 100 hours
Warm-up Time < 30 min

< Dimensions >
All models 120 x 42 x 15 cm

< Weight >
Laser Head 93 kg
Power Supply 1 15 kg
Power Supply 2 12 kg

< Cooling >
All Models Water-cooled
