型番： メーカー：Melles Griot (京セラオプテック株式会社） 商品コード：L002566
CW Laser, 561nm, 50mW
波長: 561nm-561nm
出力: 50mW-50mW

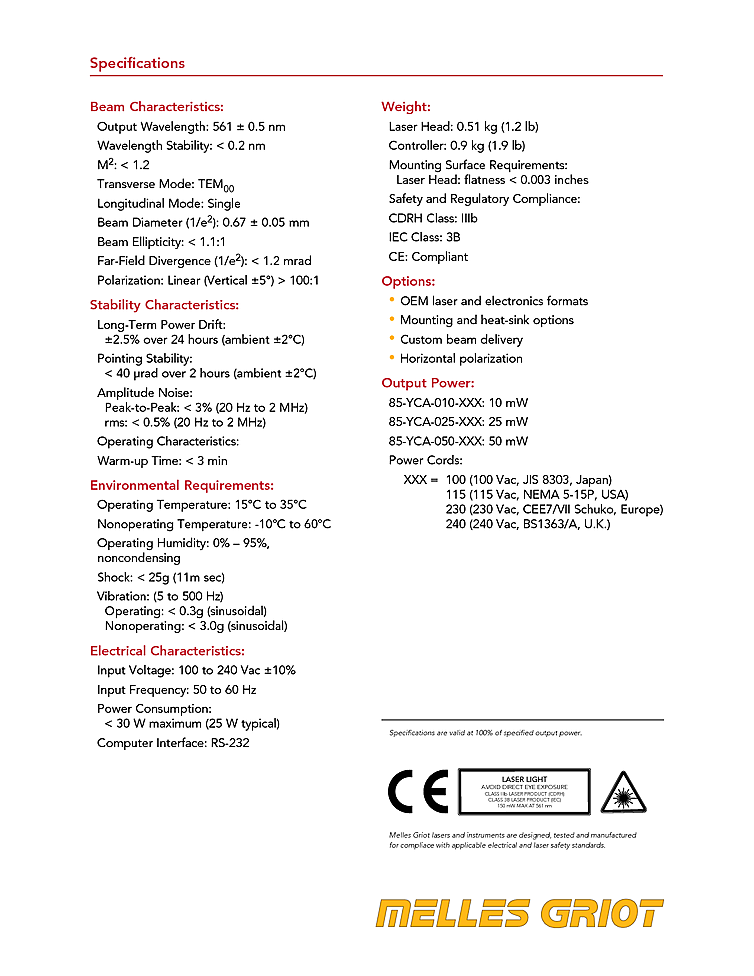

Diode pump solid state laser from Melles Griot. CW laser has a single transverse and longitudinal mode wit beam quality of M2<1.2. The all solid state laser was designed to be lightweight and compact and is a retrofit for krypton ion lasers with a drop in beam diameter of 0.67mm. For remote operation the laser has a RS-232 computer interface. Careful attention to design of hte laser allows for low noise operation with RMS noise less then 0.5% and peak to peak noise less then 3% over a frequency bandwidth of 20Hz to 2MHz. CW laser has output power up to 50 mW at a wavelength of 561 nm.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | |||
| 要問い合わせ | メレスグリオ株式会社 ジャパンオフィス | ||
