型番：TiC　メーカー：Avesta Project Ltd.　商品コード：L002528

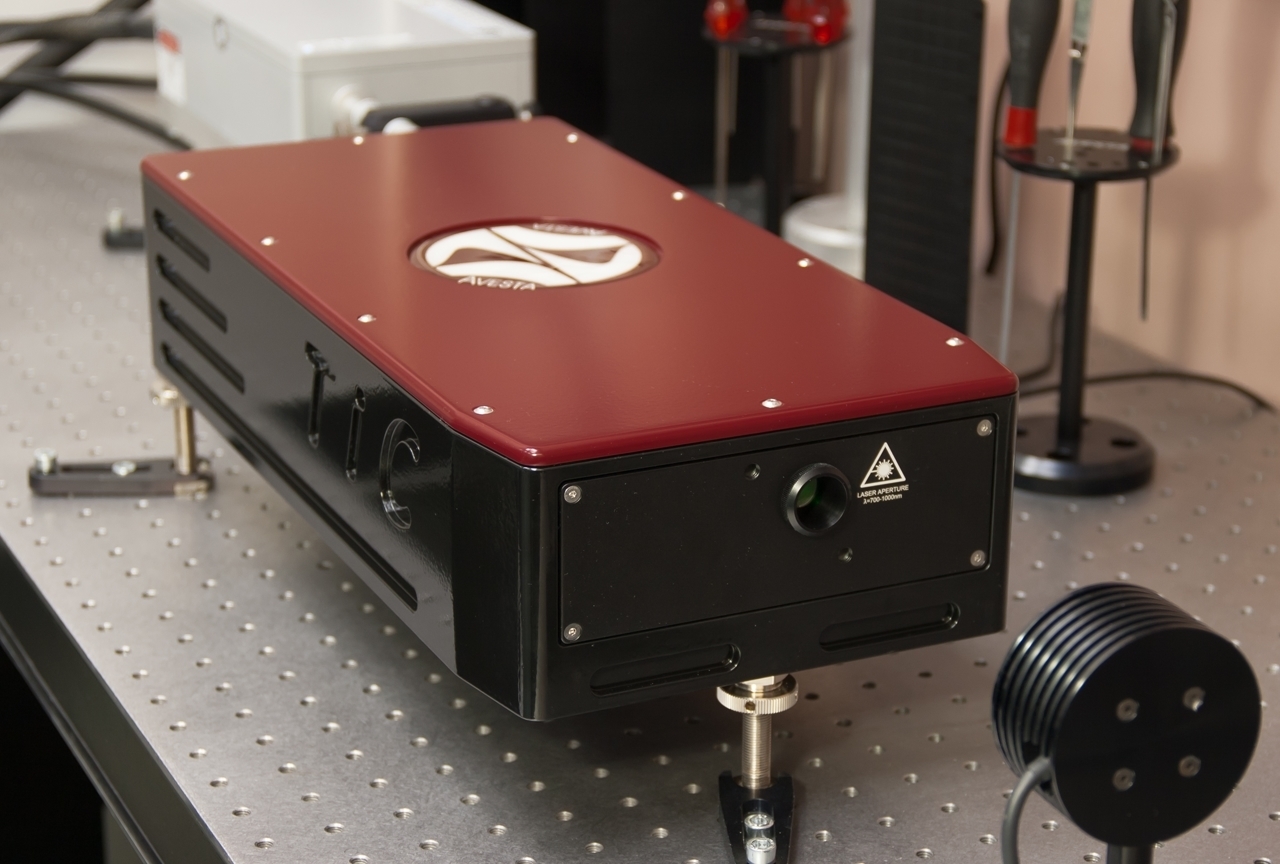

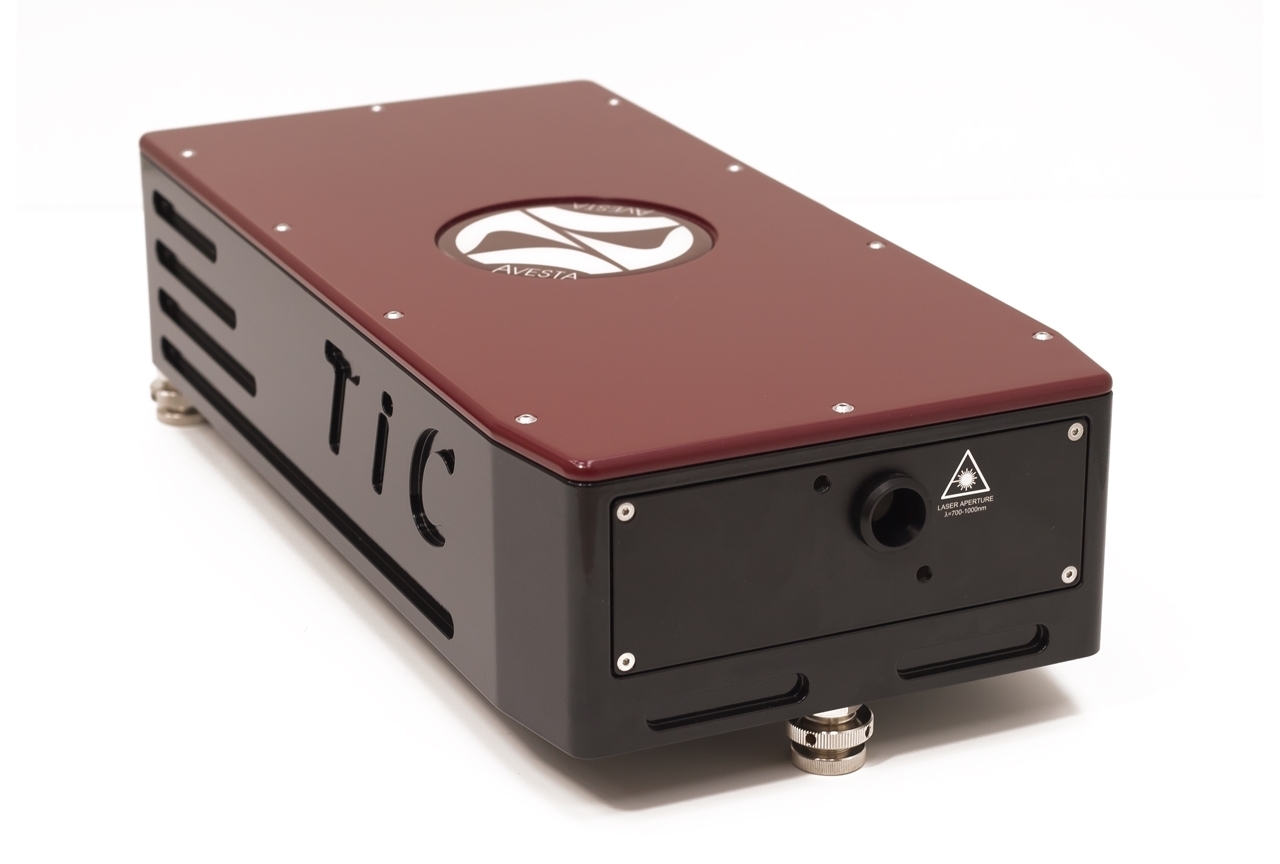

Ti:Sapphire Continuous Wave Laser

TiC データシート.pdf

波長: 700nm-1000nm
出力: 150mW-4W
テクノロジー: Ti:Sapphire Continuous Wave Laser
ビーム径: <2 mm
拡がり角: <1 mrad

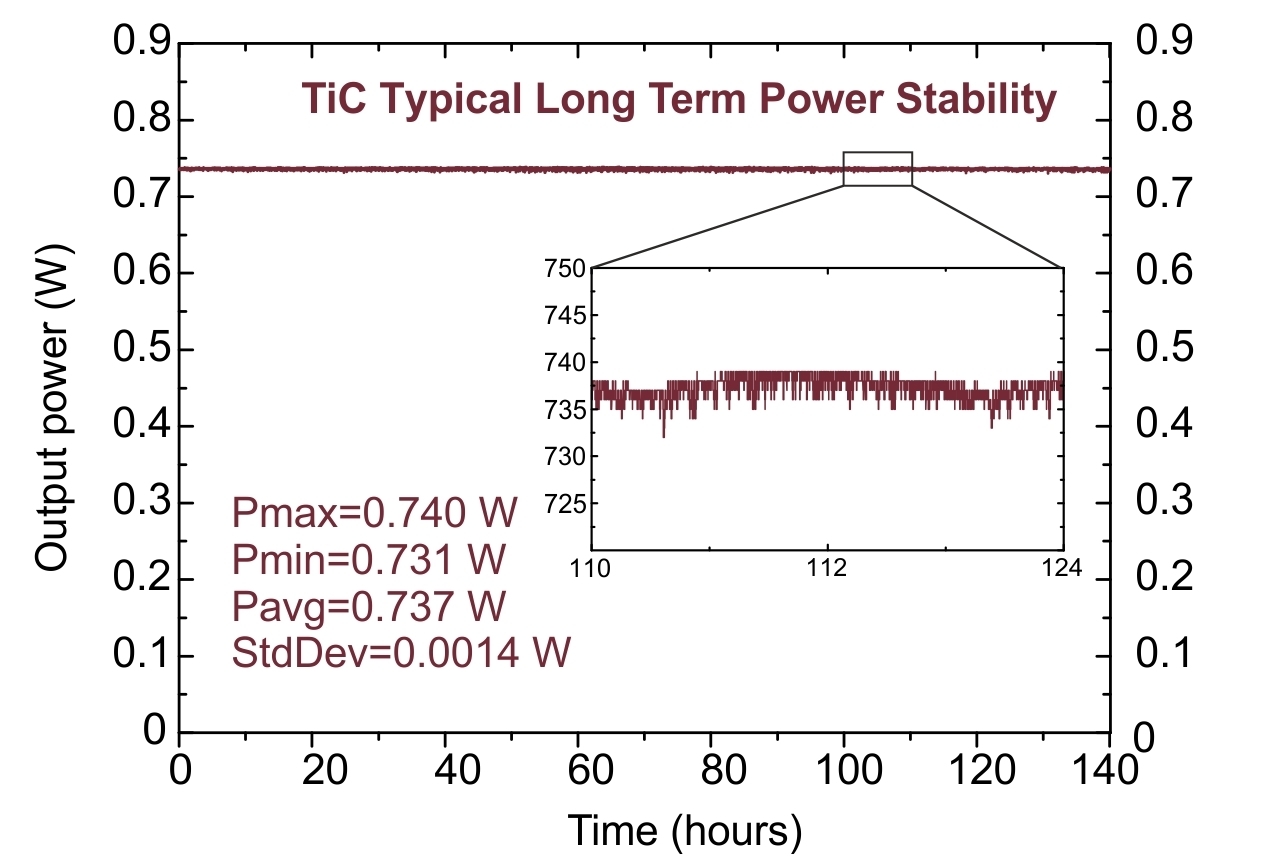

エネルギー安定性: <0.2% rms

【Description】

Continuous wave Ti:Sapphire laser features broad wavelength tuning range (700-1000 nm) and finds itself as a useful tool for many fields of fundamental research, especially various spectroscopy applications.

The wavelength tuning is carried out by a birefringent Lyot filter and can be either manually controlled or motorized via a step motor with USB connection to a PC. Two etalons can be optionally placed into the cavity in order to narrow the linewidth of the generated radiation down to 2 GHz.

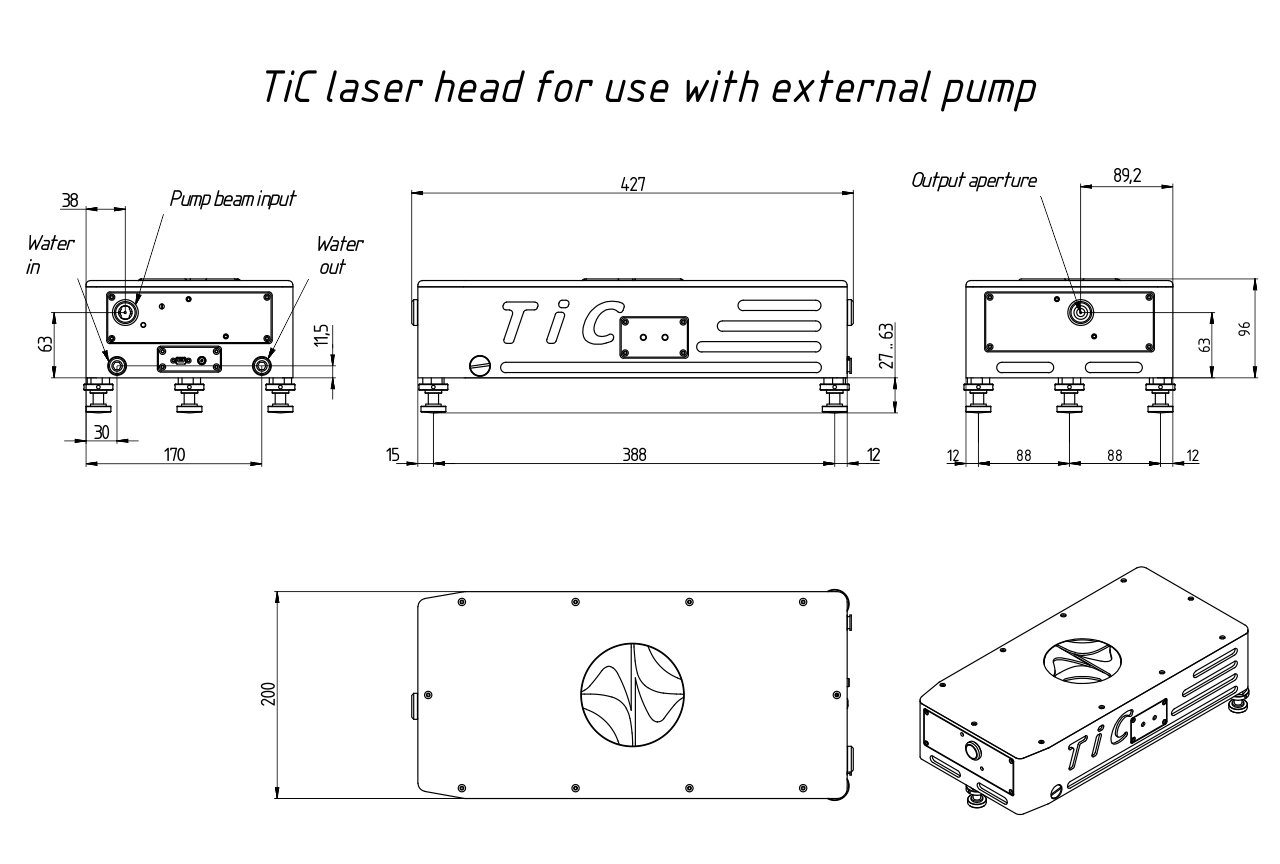

The CW Ti:Sapphire laser needs to be pumped by a CW DPSS pump laser at 532 nm. Our company offers the oscillators without the pump laser, as well as a version with integrated pump laser with pump power varying from 2 W to 8 W.

Optional fiber-coupled modification is available. The radiation is steered into a fiber with 4 um core diameter. The optical scheme allows easy switching between the free-space and the fiber outputs via a flip mount.

【Feature】

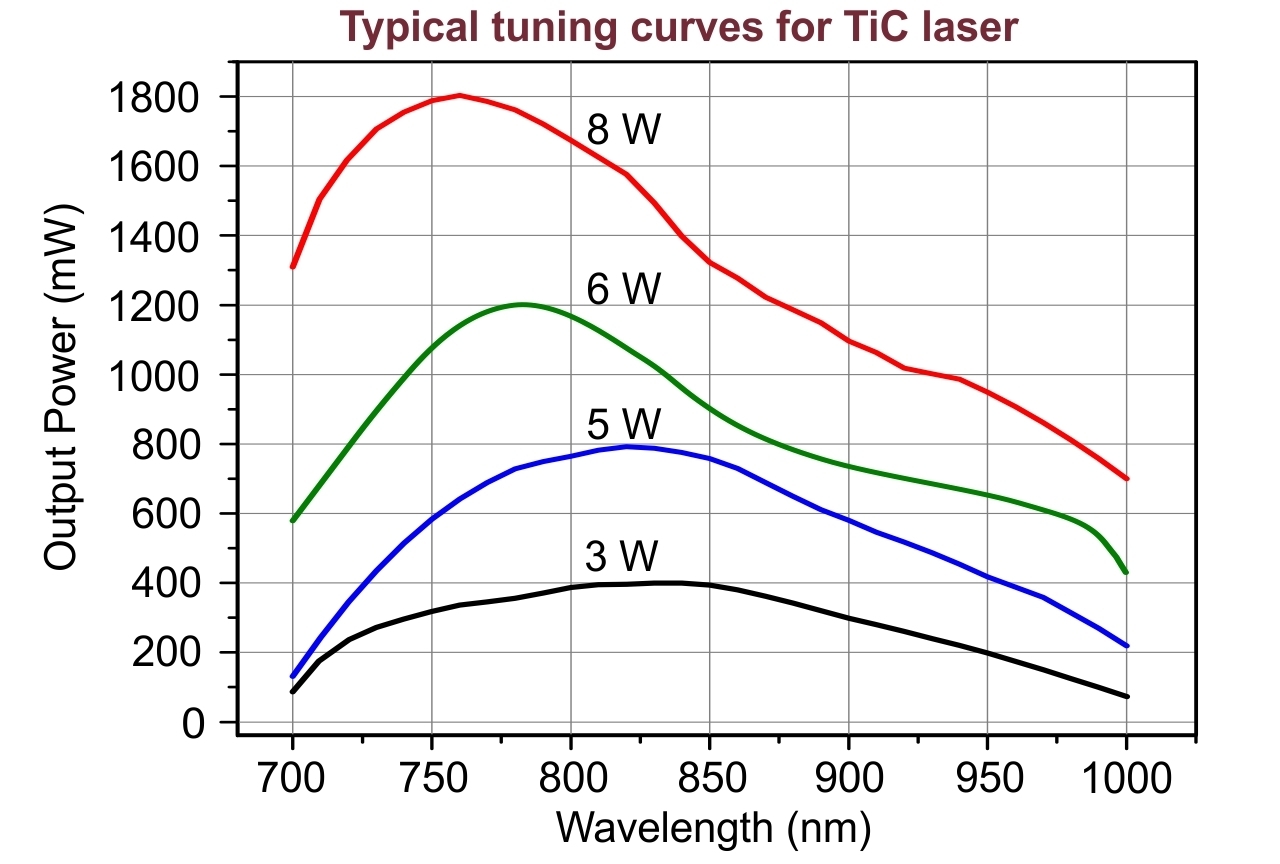

700-1000 nm tuning range with a single set of optics
690...1060 nm available customized and optimized wavelengths
>1.8 W at 800 nm average output power
Down to 2 GHz linewidth (with optional etalons)

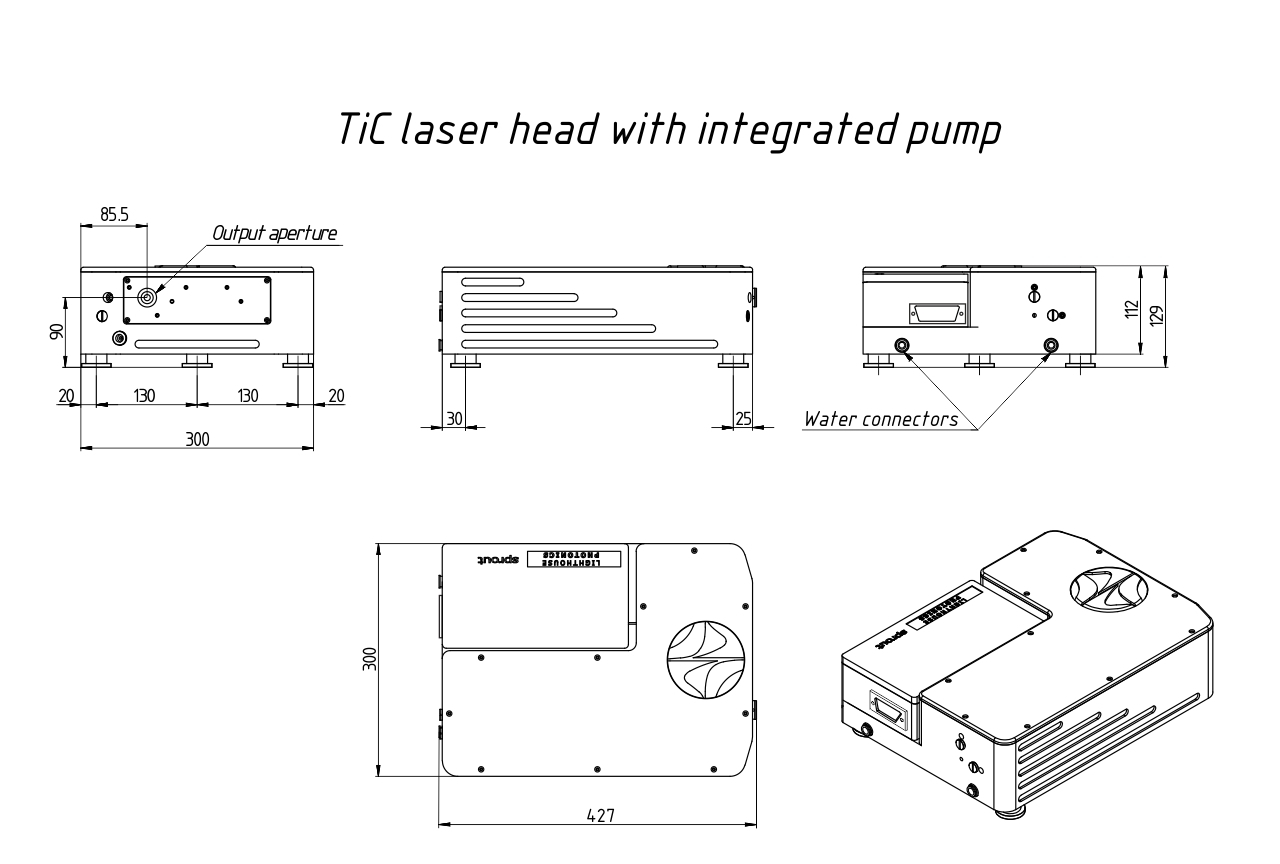

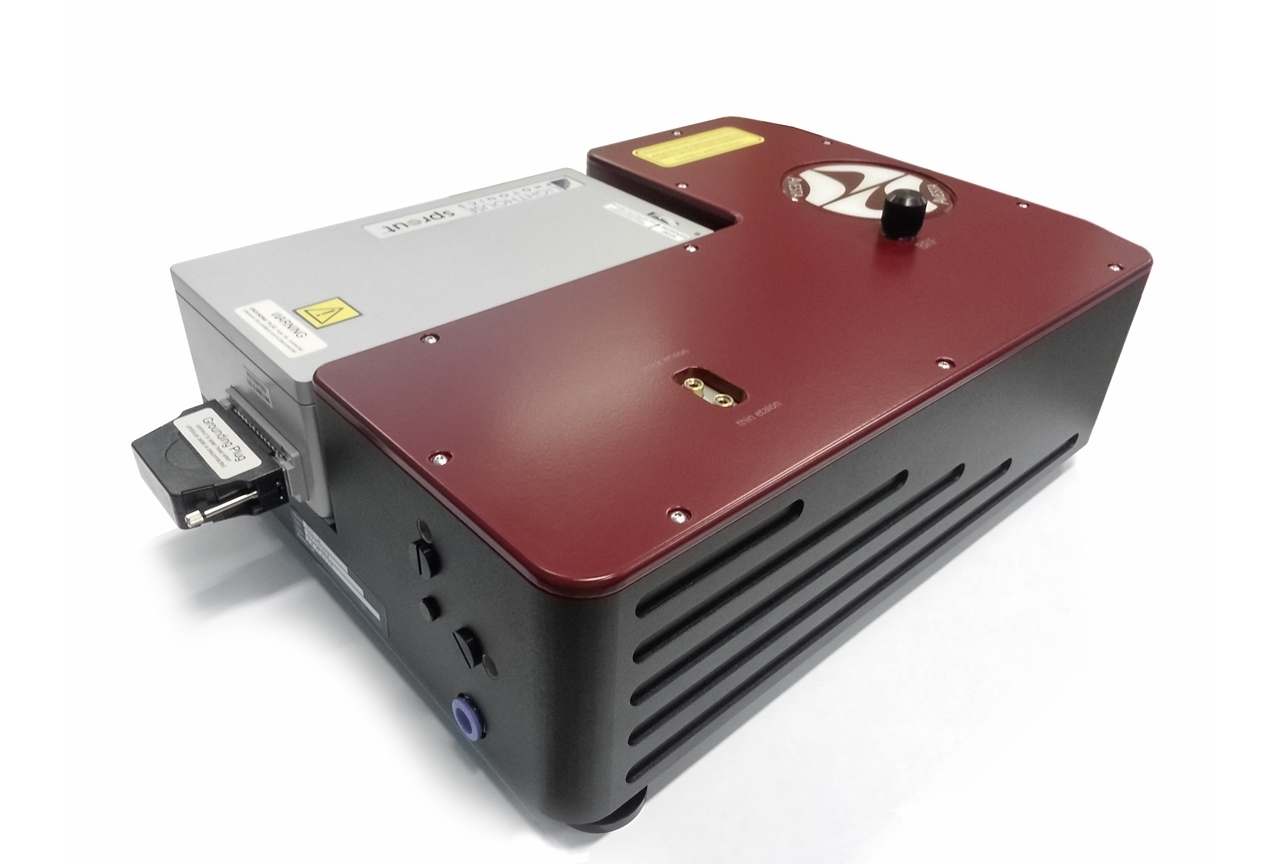

Integrated on-board pump laser option

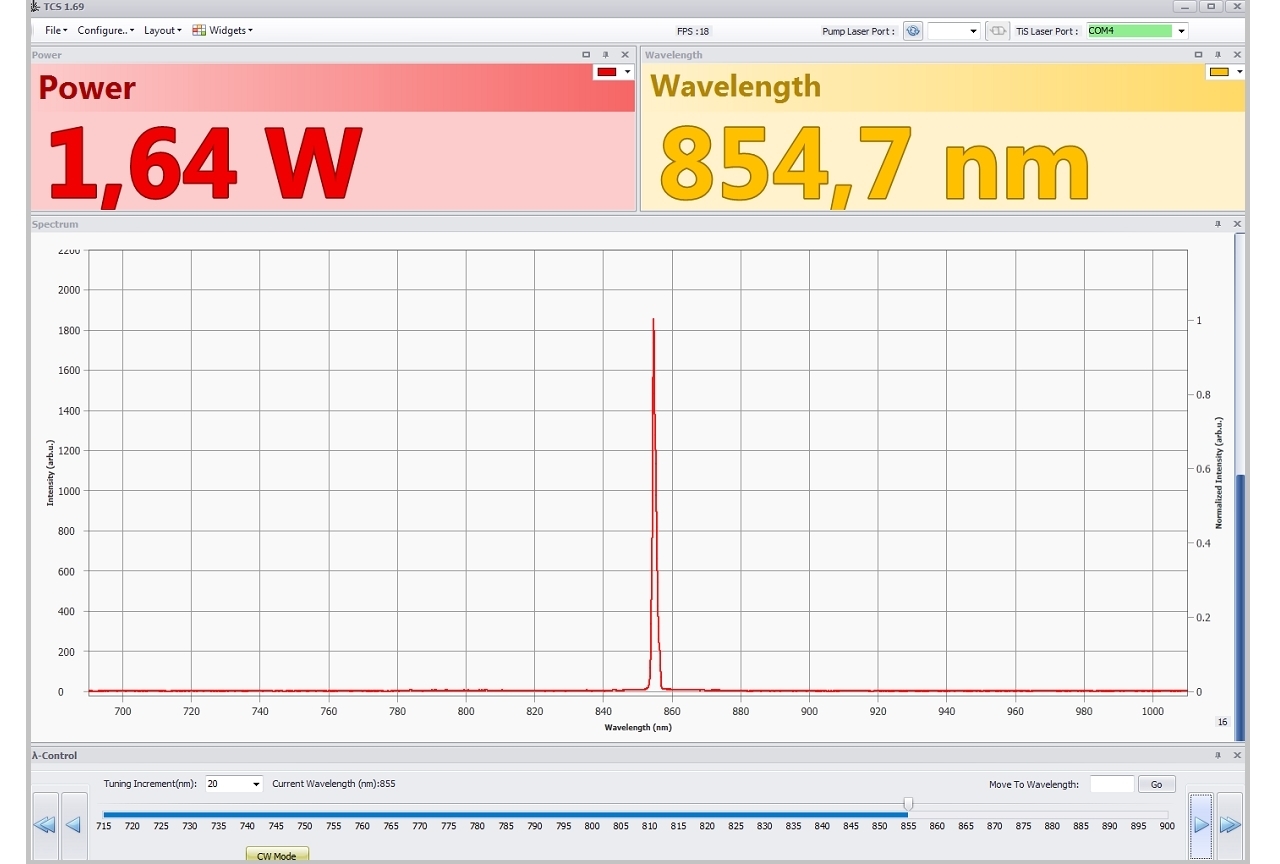

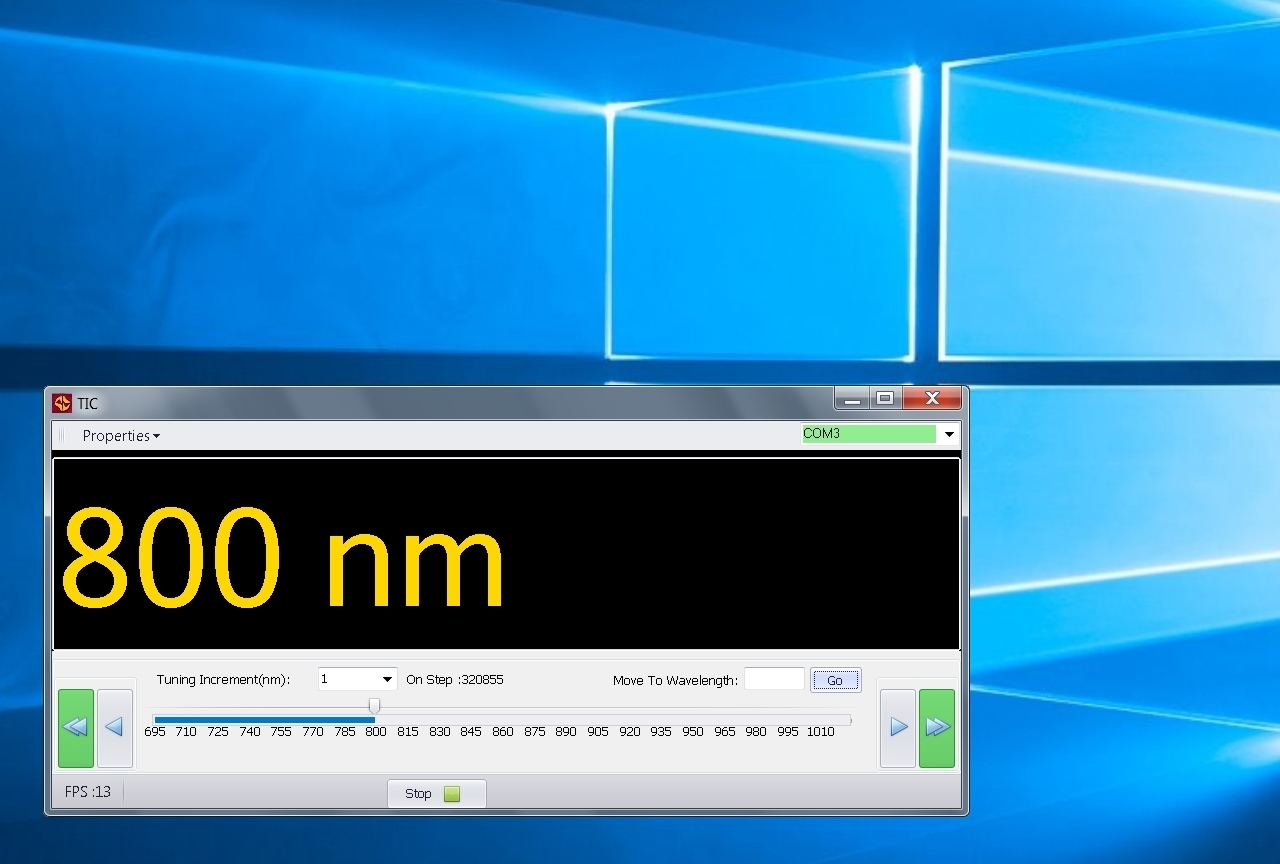

Automated wavelength tuning and Windows software
Built-in spectrometer and power meter (optional)
Optional built-in fiber coupling
