型番：GS-320-QFI、GS-160-QFG、GS-120-QFU　メーカー：Northrop Grumman Corporation　商品コード：L002493

DPSS Nd:YAG Laser Systems【Gigashot FT】

DPSS Nd:YAG Laser Systems【Gigashot FT】
DPSS Nd:YAG Laser Systems【Gigashot FT】

Gigashot FT データシート.pdf

波長: 355nm-1064nm
出力: 12W-32W
パルスの最大繰返し: < 100Hz - 1000Hz
エネルギー: 120mJ-320mJ
テクノロジー: Nd:YAG Laser
ビーム径: < 6.5 mm
拡がり角: < 0.6 mrad
エネルギー安定性: < 1.0 (GS-320-QFI)、< 1.5 (GS-160-QFG)、< 2 (GS-120-QFU)
冷却方法: Water cooled

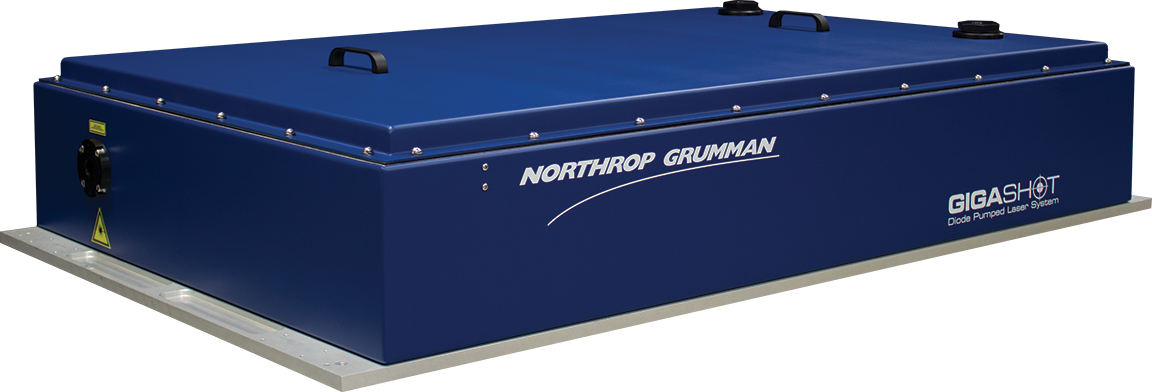

The Gigashot™ FT is a diode-pumped solid–state (DPSS) Nd:YAG laser that delivers 320 mJ per pulse at 1064 nm / 160 mJ per pulse at 532 nm / 120 mJ per pulse at 355 nm at a repetition rate of 100 Hz. The laser has a Master Oscillator-Power Amplifier (MOPA) architecture with an output beam that has a ‘flat top’ beam profile in the near field – making it ideally suited for pumping ultrafast Ti:Sapphire amplifiers and OPCPAs.

The Gigashot™ FT laser features long life laser diode bars and delivers excellent pulse-to-pulse and long term stability which is ideally suited for use in scientific, industrial, and medical applications. The laser is supplied with a 2 year/10,000 operating hour diode warranty. Injection seeding is optional.

Customized versions of the Gigashot™ FT are also available (including oscillator/amplifier configurations for increased pulse energy).


【Applications】

・Scientific
・Industrial
・Medical
