型番：　メーカー：Spectra-Physics　商品コード：L002461

Q-Switched Laser, Nanosecond, 532nm, 14kW

Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW
Q-Switched Laser, Nanosecond, 532nm, 14kW

波長: 532nm-532nm
出力: 14kW-14kW
テクノロジー: Q-Switched Laser

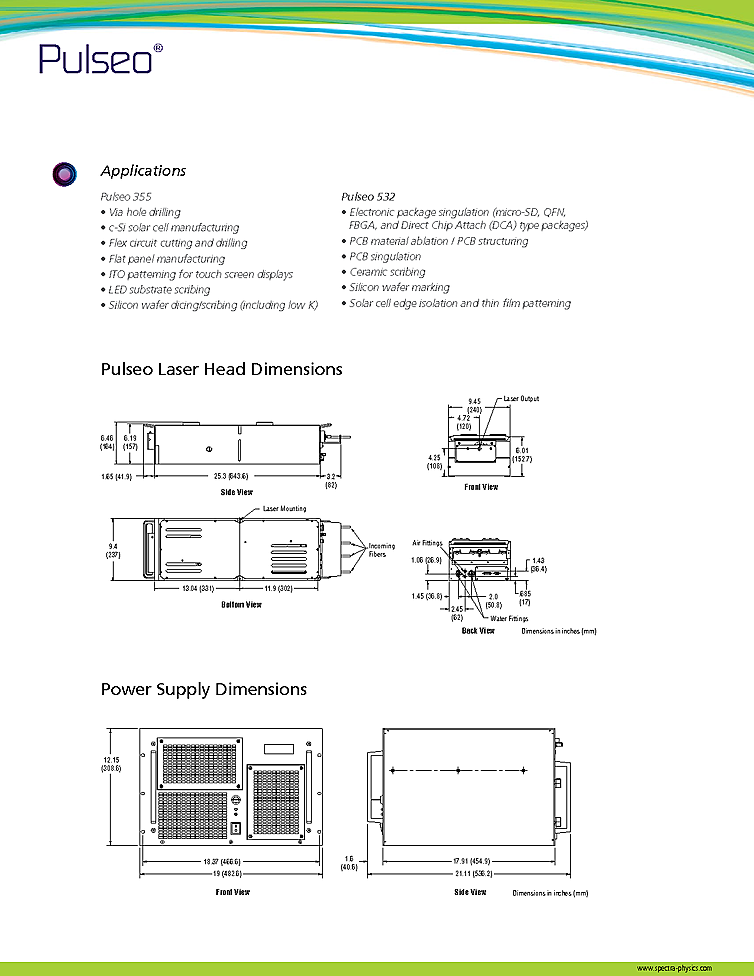

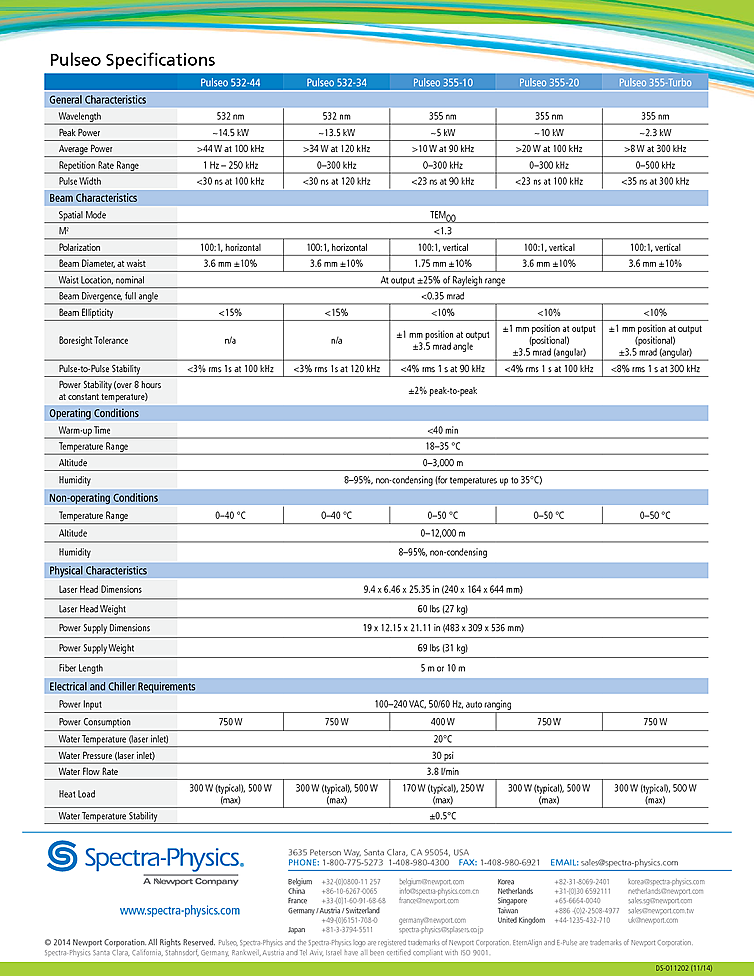

Spectra-Physics Q-switched laser with nanosecond pulse output. Compact and user friendly ensures fast stetup and the laser was designed for high uptime and field serviceability. Long life laser diode selection for reliable long term use and low cost of ownership. Application for the 532nm includes Electronic package singulation, PCB material ablation / PCB structuring, Ceramic scribing, Silicon wafer marking, and Solar cell edge isolation and thin film patterning. Beam quality of M2<1.3 with pulse-to-pulse stability of less then 3% rms 1s at 100 kHz and 8 hour power stability of +/-2% peak to peak. Q-Switched laser with peak output power of 14kW at a wavelength of 532nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ スペクトラ・フィジックス株式会社
