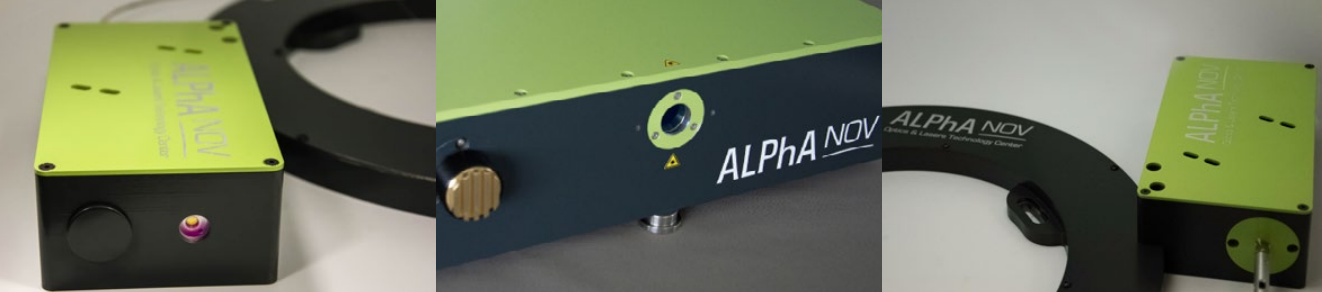

型番：S-CB　メーカー：ALPhA NOV　商品コード：L002458

1030nm-1064nm / >100W　High-power special fiber amplifier

1030nm-1064nm / >100W　High-power special fiber amplifier
1030nm-1064nm / >100W　High-power special fiber amplifier
1030nm-1064nm / >100W　High-power special fiber amplifier
1030nm-1064nm / >100W　High-power special fiber amplifier

High-power special fiber amplifier S-CB データシート.pdf

波長: 1030nm-1064nm
出力: 30W-200W
エネルギー: -1mJ
テクノロジー: Fiber Laser
サイズ: 1.5mm-2.5 mm

Based on its expertise in laser design and state-of-the-art fiber interfacing, ALPhANOV can build custom turn-key multi100-Watt monolithic laser amplifiers with superior stability. Our amplifiers rely on Yb-doped microstructured fiber architectures. It can be tailored to meet specific requirements in terms of power, temporal regime and other functionalities.

< Key Features >
(Optical performances)
• Operational regime: pulse / single-frequency
• Pulse repetition rate : 50 MHz typ.
• Input signal power: 2 - 4 W (17 - 20 dB)

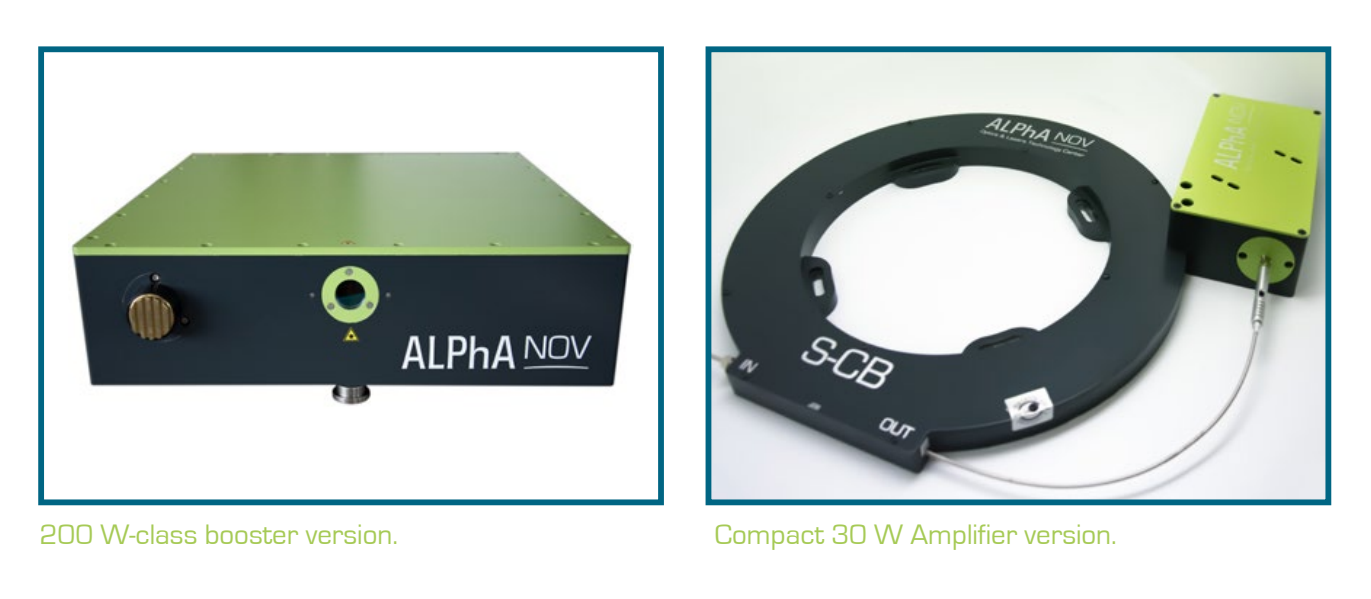

• Output power: 30 - 200 W (booster version)
• Output peak power: up to 0.5 MW
• Output pulse energy: up to 1 mJ
• Output beam quality: M² < 1.2
• PER: > 15 dB
• Output power tuning: 5 - 100 %
• Output free space beam size (1/e²): 1.5 - 2.5 mm
• Isolation: > 30 dB
• Output long term power stability (hrs): < 2 %
• Stability: 1000 hrs

(Optical interfaces)
• Input interface: high power FC/APC connector, bare fiber
• Output interface: isolated/collimated beam

(Pump specification)
• Number of diode ports: 2 or 6 (on-demand)
• Pump diodes: up to 60 W, CW or pulsed Rise/fall times > 10 μs

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
