型番：AP-1950　メーカー：AdValue Photonics　商品コード：L002447

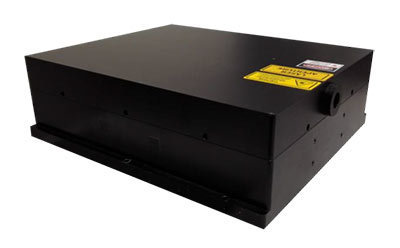

1.95 μm / 5W　EVERESTnano 2μm Pulsed Fiber Laser

EVERESTnano-2µm-AP-1950 データシート.pdf

波長: 1.95 μm-1.95 μm
出力: 5W-5W
テクノロジー: Pulsed Fiber Laser
パルス幅: 5ns
冷却方法: Water cooled (portable recirculating chiller available as an option)

< Optical Characteristics >
Operation mode: Pulsed
Pulse energy: >50 µJ
Pulse repetition rate: 100 kHz
Polarization: Random
Beam quality, M2: < 1.3
Output power stability: Within ±5%
Output delivery: Collimated output beam
(For custom requirements, please contact AdValue Photonics.)

< General Characteristics >
Operating temperature: +10 to +30 ˚C
Storage temperature: -10 to +70 ˚C
Power requirement: AC 100~240 V (50/60Hz) (operating with AdValue Photonics Control Unit)
Warm-up time: 10 minutes

< Features >
・Laser emission wavelength 2 μm
・Nanosecond pulses
・High peak power and pulse energy
・Near diffraction limited beam quality
・Rugged OEM package and compact size

< Applications >
・Solar Photovoltaic
・Semiconductor
・Electronics
・Automotive
・Home appliance
・Scientific research
