型番： メーカー：Melles Griot (京セラオプテック株式会社） 商品コード：L002563

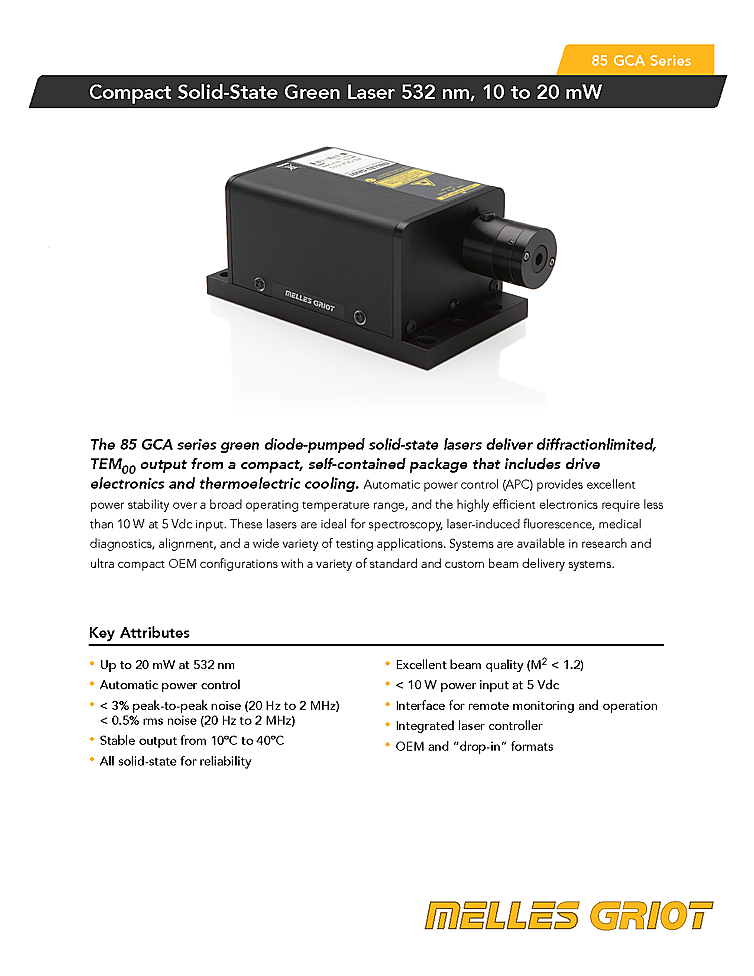

CW Laser, 532nm, 20mW
波長: 532nm-532nm
出力: 20mW-20mW
CW laser from Melles Griot is a compact design with integrated laser controller for easy integration into customer applications. The solid state laser was designed for low noise with rms noise from 20Hz to 2Mhz of less then 0.5% and peak to peak noise of less then 3%. Beam quality of M2<1.2 with achieved with CW laser and a divergence less then 1.25mrad. RS-232 remote interface is included with the diode pump solid state laser for remote monitoring and operation. Effecient laser design requires less then 10 watts of power from 5 volt DC supply. CW laser has up to 20 mW at 532 nm of output power.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | |||
| 要問い合わせ | メレスグリオ株式会社 ジャパンオフィス | ||
