型番：DFB-1550-C5-X-A-XX-X-X-20　メーカー：Applied Optoelectronics, inc.　商品コード：L002170

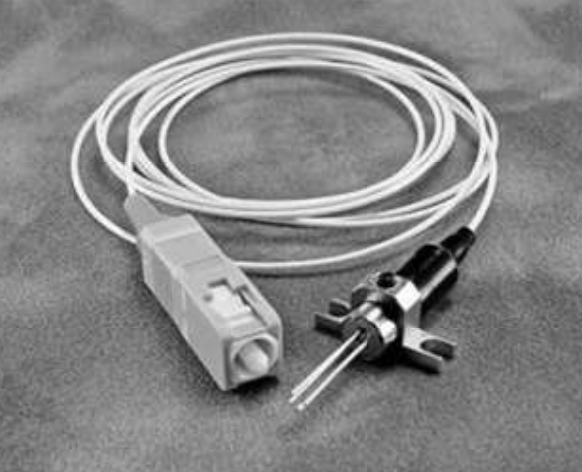

Coaxial Pigtail of MQW-DFB Laser for CATV return-path

Coaxial Pigtail of MQW-DFB Laser for CATV return-path
Coaxial Pigtail of MQW-DFB Laser for CATV return-path

DFB-1550-C5-X-A-XX-X-X-20 データシート.pdf

波長: 1530nm-1570nm
出力: 2mW-
電流: 60mA-80mA
パッケージ: 5.6-mm TO-style package with SMF pigtail
テクノロジー: DFB Laser

【Description】

The DFB-1550-C5-X-A-XX-X-X-20 series of Multi Quantum Well (MQW) Distributed Feedback (DFB) lasers have been designed specifically for analog applications, especially CATV return-path. The devices feature high output power, wide operating temperature range, low distortion characteristics, low RIN noise, and high side mode suppression. Their uncooled, hermetically sealed, coaxia fiber pigtailed packages are a cost-effective means of providing a highly linear light source for intermediate-reach and long-reach analog transmission applications.


【Features】

Advanced Multiple Quantum Well (MQW) Distributed Feedback (DFB) Laser Design
Low Distortion: IMD2 max –50 dBc、IMD3 max –55 dBc
RIN < -140 dB/Hz
Cost-effective Uncooled Laser Technology
SMSR typ. 40 dB
5.6-mm TO-style package with SMF pigtail


【Applications】

CATV Return-path
Analog transmission
