型番：OSTLDX1940　メーカー：OsTech electro optical instruments 　商品コード：L002043

Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode

Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode
Calibrated Turn-Key System with Integrated 1940nm, 10 Watt DILAS Laser Diode

メーカー希望小売価格: Request 波長: 1940nm-1940nm
出力: 10W-10W
パッケージ: Turn-Key Source and Control System
テクノロジー: Integrated DILAS Lasers Bar or Array

Product Overview:

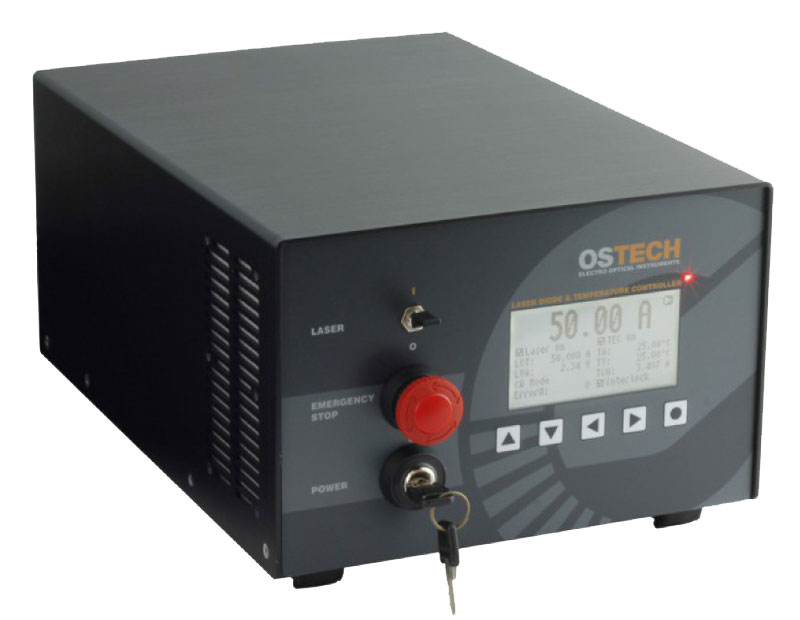

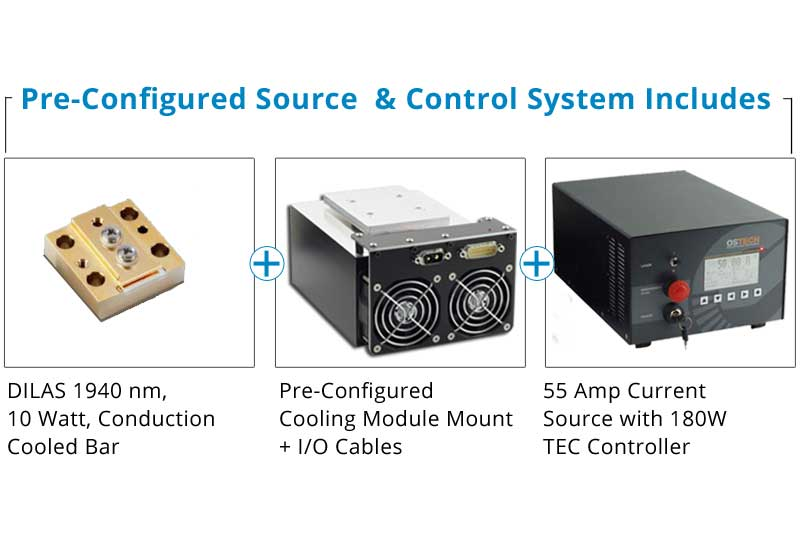

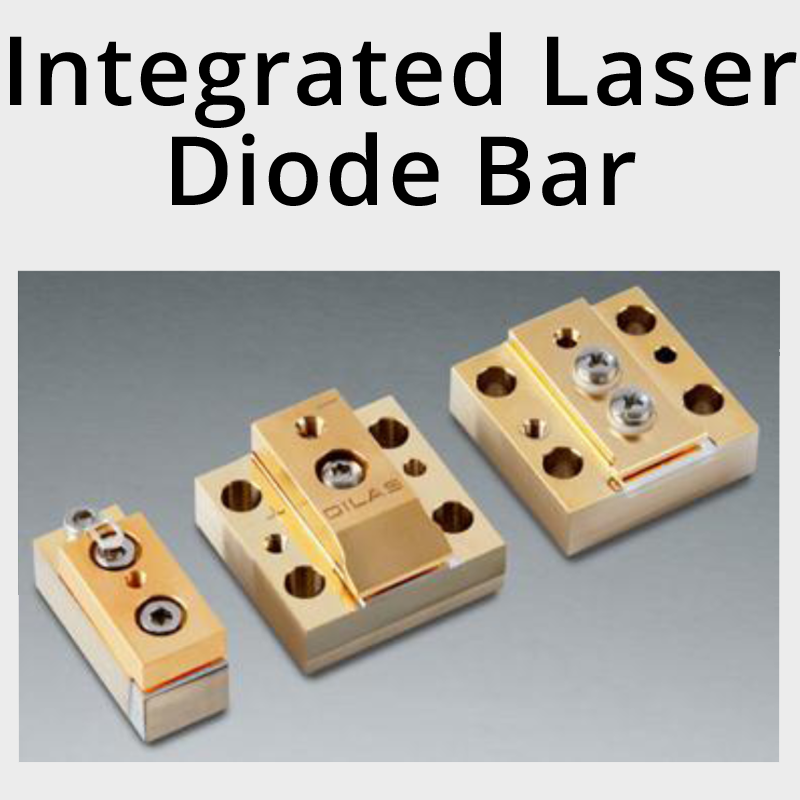

These 1940nm, 10 Watt source and control systems offer a complete plug and play solution for R&D laboratory applications. These units includes a DILAS conduction cooled single-bar with 19 emitters. This source and control system is comprised of an 10 Watt DILAS conduction cooled module, an OsTech 55 Amp current source with 180 Watt temperature controller, and a high power cooling module. The cooling module comes pre-configured for the DILAS module. The controller is optimized for high power modules and is pre-tested and calibrated with the laser module prior to shipment.

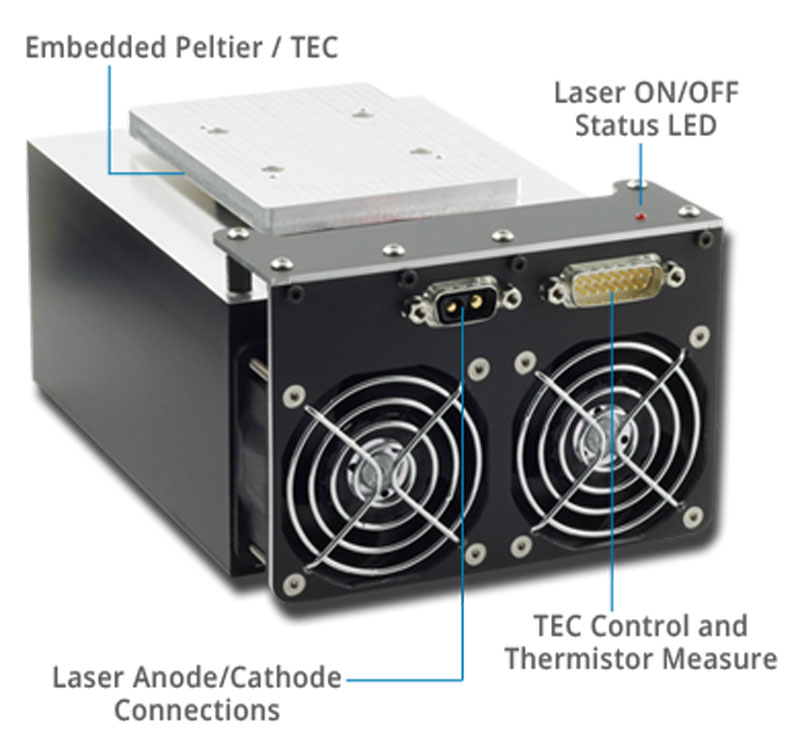

The laser diode heat sink is a high performance mounting solution designed for high power laser diode modules. It is a convenient and high performance solution for cooling and temperature stabilization of laser diodes in laboratory environments.
