型番:E532-10-3(43X200)APT30 メーカー:Picotronic GmbH 商品コード:L000190

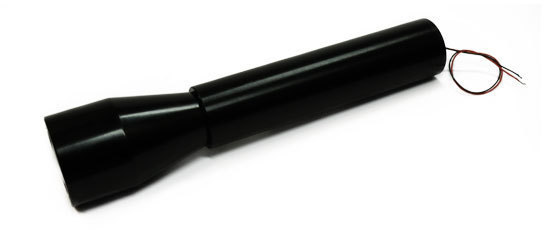

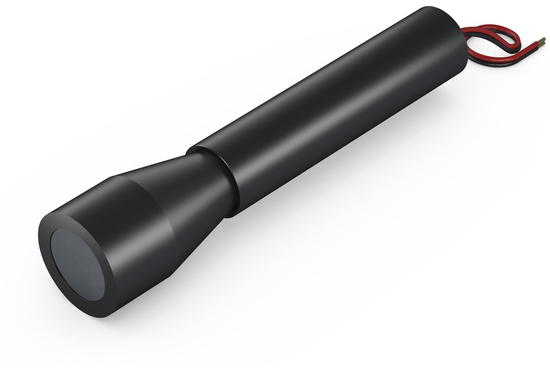

10mWGreen Isolated Expander Lasermodule (APT30)

メーカー希望小売価格: €352,02 波長: 532nm-
出力: 10mW-
電流: 250mA-750mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Expander Laser

Isolated Expander lasermodule, green, 532nm, 10mW, 3V DC, 43x200mm, class 2M

• Operating Voltage 3 V DC
• Glas lenses anti reflex coated
• Uniform illumination
• Laser Class 2M
• Image processing

< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power typ 10 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 250 typ 500 max 750 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape expander
Laser Class 2M
Beam Diameter 30 mm
Size of Laserdot <30mm@5m
Operating Distance 100 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Stability +/- 20% @ 15-30°C
Focus fixed (5.0m)
Warm up time < 15 min

< Electrical Parameters >
Potential of Housing isolated

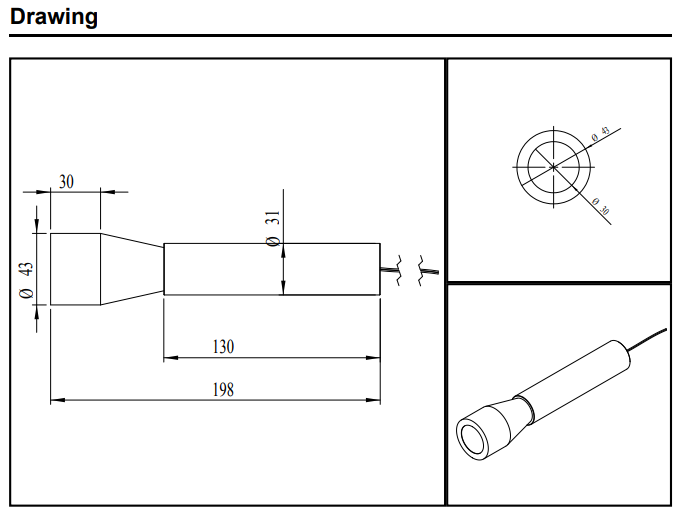

< Mechanical Parameters >
Size Ø43x200 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 30 mm
Housing Color black
Weight 250 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
