型番:AP-ML メーカー:AdValue Photonics 商品コード:L003215

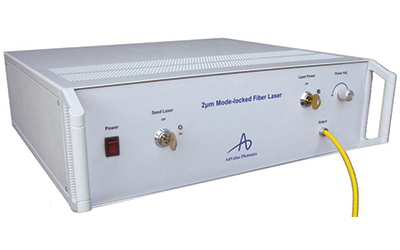

1.95±0.05µm / 5mW 2 Micron Mode-Locked Fiber Seed Laser

波長: 1.9µm-2µm
出力: 5mW-5mW
テクノロジー: Locked Fiber Seed Laser
パルス幅: 350 to 950 fs options
冷却方法: Forced air

< Optical Characteristics >
Average power (nominal): 5 mW nominal
Pulse repetition rate: 20-50 MHz (non-adjustable factory set)
Beam quality, M2: < 1.1
Output polarization: Random (option: linear polarization)
Output fiber: SMF-28 single mode fiber, 3 mm jacket, 1 m length, no connector
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: +18 to +30℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Short pulse width
・Broad spectral bandwidth
・Diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・Mid-IR generation
・Nonlinear optics studies
・Spectroscopy
・Research & development
