型番：　メーカー：Denselight　商品コード：L001892

1383nm, Narrow Linewidth Laser

1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser
1383nm, Narrow Linewidth Laser

波長: 1383nm-1383nm
出力: 40mW-40mW
スペクトル幅: < 500kHz

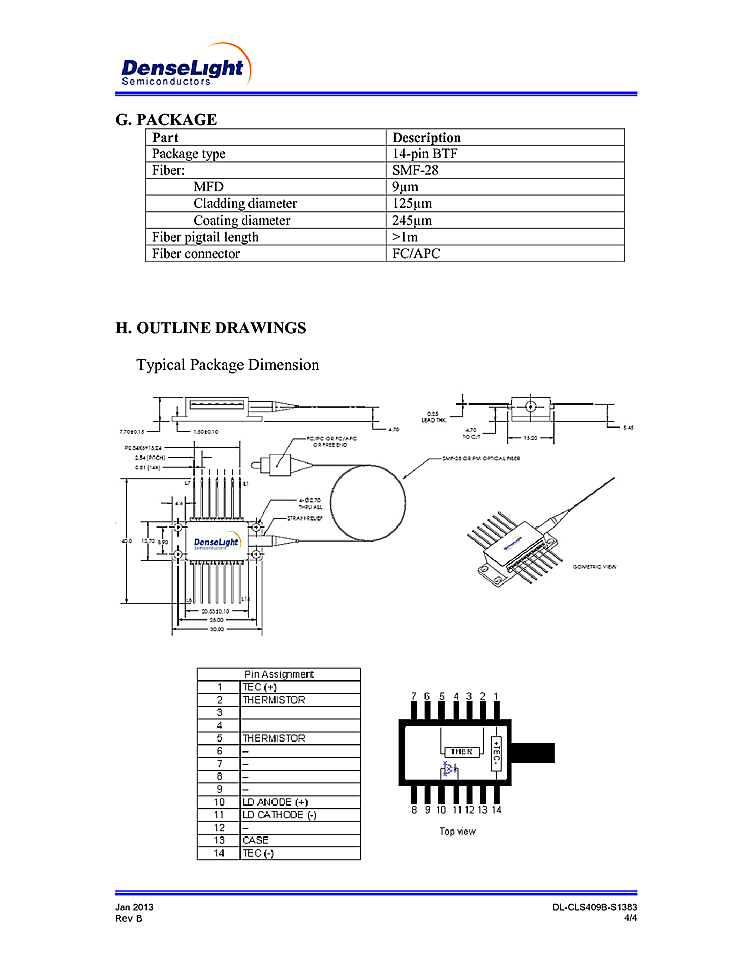

パッケージ: butterfly
テクノロジー: narrow linewidth laser

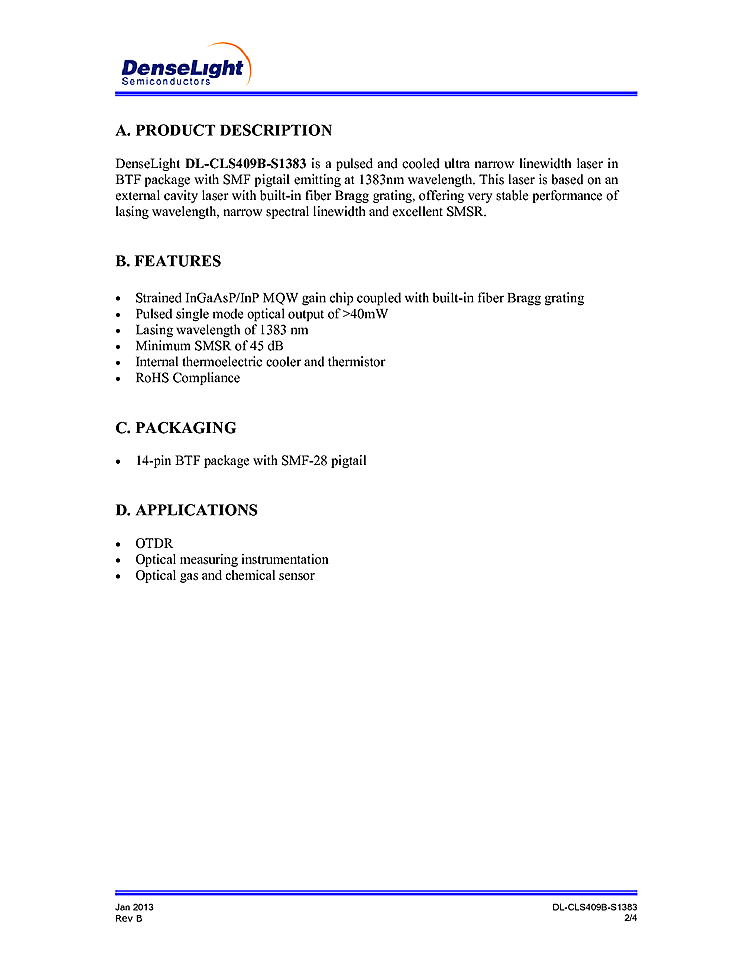

1383nm The DenseLight Laser is a pulsed and cooled ultra narrow linewidth laser in a butterfly package with single mode fiber pigtail emitting at 1383nm wavelength. This laser is based on an external cavity laser with built-in fiber Bragg grating, offering very stable performance of lasing wavelength, narrow spectral linewidth and excellent SMSR.

KEY FEATURES:Built-in fiber Bragg grating, pulsed single mode optical output of > 40mW, lasing wavelength of 1383 nm, minimum SMSR of 45 dB, Internal TEC and thermistor, narrow linewidth, RoHS Compliance
