型番：AP-SF　メーカー：AdValue Photonics　商品コード：L003216

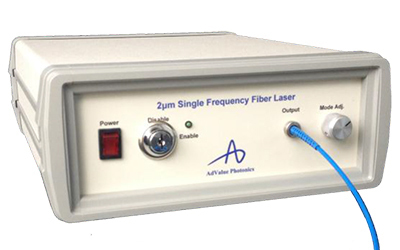

1950nm / 30mW　2 Micron Single-Frequency Fiber Seed Laser

1950nm / 30mW　2 Micron Single-Frequency Fiber Seed Laser
1950nm / 30mW　2 Micron Single-Frequency Fiber Seed Laser
1950nm / 30mW　2 Micron Single-Frequency Fiber Seed Laser
1950nm / 30mW　2 Micron Single-Frequency Fiber Seed Laser

AP-SF データシート.pdf

波長: 1950nm-1950nm
出力: -30mW
スペクトル幅: < 500kHz
テクノロジー: Frequency Fiber Laser Seed
冷却方法: Forced air

< Optical Characteristics >
Operation mode: CW
Operating wavelength: 1950 nm (option: 1900-2100 nm)
Wavelength accuracy: ±1 nm nominal
Max. output power: 30 mW (higher or lower power available)
Spectral linewidth: 10 kHz, 50 kHz
Frequency stability: +/-100 MHz per minute
Beam quality, M2: < 1.1
Output polarization: Linearly Polarized
Fast tuning range: 200 MHz, ~ 20 MHz/V with PZT (Option available)
Thermal tuning range: 0.3 nm (Option available)
Output delivery: Panda PM1550 fiber, 3 mm jacket, 1 m fiber length, FC/APC connector, keyed to slow axis
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: +20 to +35℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Customizable operating wavelength
・Single longitudinal mode
・Very narrow spectral linewidth
・Single mode fiber delivery
・Turn-key system with no maintenance

< Applications >
・LIDAR
・Gas sensing
・Frequency conversion
・Research & development
