型番:DA532-1-3(20X95)-01607 メーカー:Picotronic GmbH 商品コード:L000183

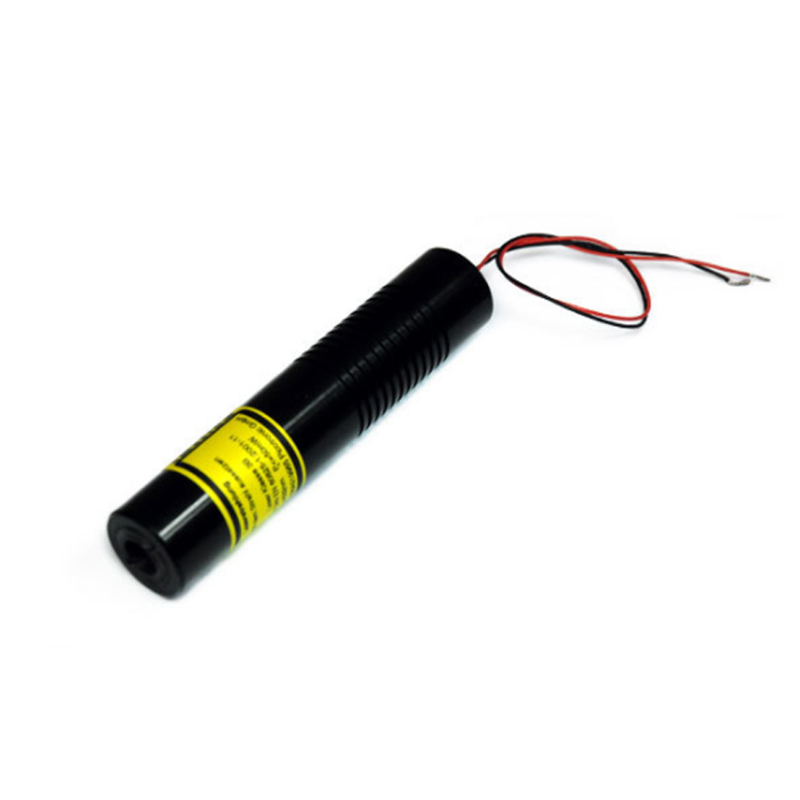

1mW Green Isolated Dot Lasermodule (01607)

メーカー希望小売価格: €179,75 波長: 532nm-
出力: 1mW-
電流: 80mA-280mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Dot Laser
拡がり角: 0.2 mrad

Isolated, dot lasermodule, green, 532nm, 1mW, 3V DC, 20x95mm, class 2

• Operating Voltage 3 V DC
• Laser Class 2
• Fixed focus
• Large operating range
• Isolated housing

< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power typ 1 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 80 typ 180 max 280 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Dot
Laser Class 2
Divergence 0.2 mrad
Beam Diameter 9 mm
Size of Laserdot 9.5@40m
Operating Distance 100 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Focus collimated
Warm up time < 15 min

< Electrical Parameters >
Potential of Housing isolated

< Mechanical Parameters >
Size Ø20x95 mm
Material aluminium

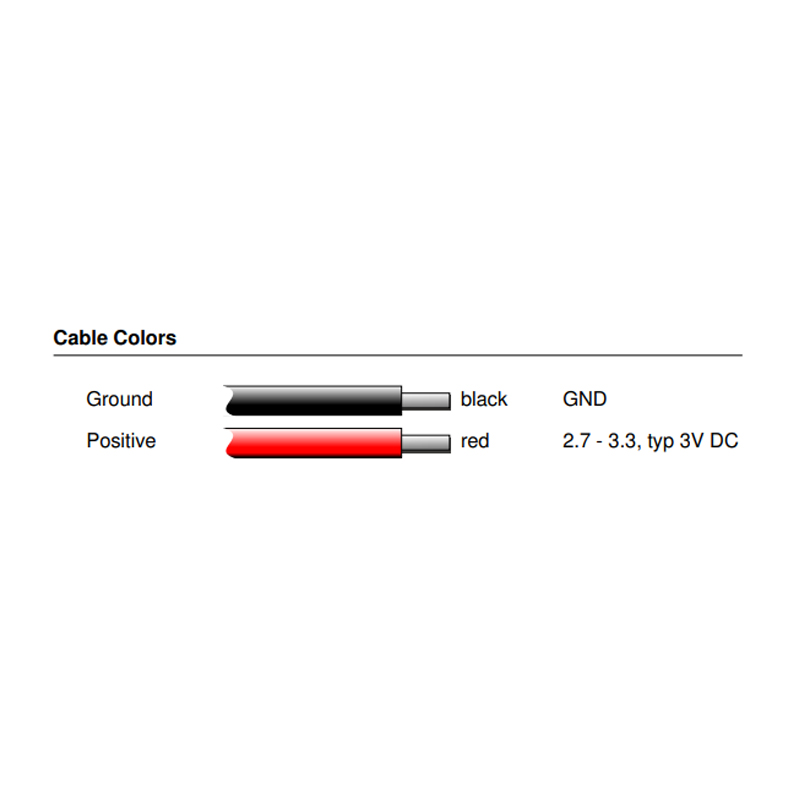

Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 8 mm
Housing Color black
Weight 63 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
