波長: 980nm-
出力: 365mW-
電流: 45mA-

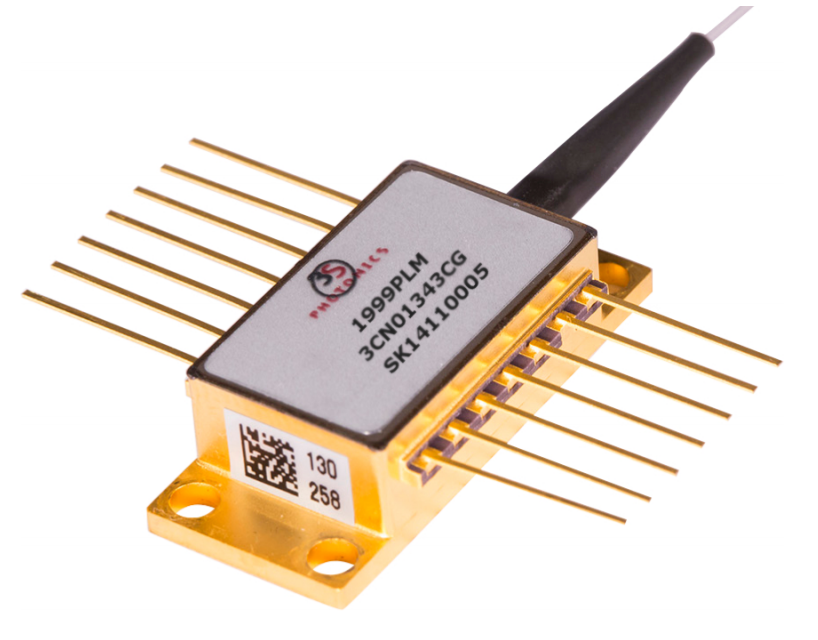

The 1999PLM is a new generation of 980 nm terrestrial pump modules powered by an in-house chip technology. Low Profile, 14-pin butterfly modules are available with an operating power up to 330mW. They incorporate a thermoelectric cooler (TEC), a precision NTC thermistor and a back-facet monitoring photodiode. The wavelength is “locked” utilizing a fiber Bragg grating (FBG) located in a Single Mode HI1060 Fiber (SMF) pigtail. The module meets TelcordiaTM GR-468-Core requirements for hermetic 980nm pump modules.

The following parameters are specified BOL for a Tsubmount = 25 °C, Tcase = -5 °C to 75 °C, VBFM = -5 V and -50 dB max back-reflection unless otherwise stated.
[PUMP LASER]
Threshold current (mA)：Typ. 45　Max 60
Nominal operating power (mW)：Min 150
Kink free power (mW)：1.1 x Pnom
Forward current (mA)　 Typ. / Max
Pnom= 150 mW：　　　260　290
Pnom= 200 mW：　　　330　365
Pnom= 250 mW：　　　400　440
Pnom= 300 mW：　　　470　515
Pnom= 330 mW：　　　520　570
Forward voltage (V) @ 330 mW：Max 2.0
Peak wavelength tolerance (nm) @ Tcase= TFBG= 25 °C 0.1 x Pnom to Pnom：Max ±0.5
Wavelength tuning vs temperature (Tgrating= -5 to 75 °C) (nm/℃)：Typ. 0.01　Max 0.02
Spectral width @ -3 dB (nm) 0.1 x Pnom to Pnom：Max 1.0
Power in band (%) Pnom ：Min 90
Optical power stability (%) Peak to peak, 10 Hz-50 kHz, 60 sec, Pnom：Typ. <1　Max 2
Power consumption, EOL (W) Pnom = 330 mW： Max 3.5

[MONITOR DIODE]
Responsivity (µA / mW)：Min 0.5　Max10
Dark current (nA)：Typ. 50　Max100

[THERMO-ELECTRICAL COOLER]
Cooling capacity (℃)：Min 50
TEC voltage (EOL) (V)：Max 2.1
TEC current (EOL) (A)：Max1.4
TEC Power consumption (W)：2.9

[THERMISTOR]
Resistance (kΩ) 25℃：Min 9.5　Typ. 10　Max 10.5
Constant (K)：Min 3600　Max 4200

(1) Ith is the intersection point with the x-axis of a linear fit of the P(I) curve between 15 mW and 50 mW
(2) A kink is detected when the local slope dP/dI is below Smin or above Smax. Smin is defined as 0.5xSavg and Smax is defined as 1.5xSavg
(3) EOL forward current I(EOL)= 1.1x I(BOL)
(4) Pband is defined as the power within the band p ±1.5 nm vs the total output power
