波長: 905nm-905nm
出力: 25W-25W
パッケージ: TO-can
テクノロジー: pulsed high power

905nm The HPD Series 2100 are high peak power, 905 nm pulsed diode lasers designed for applications that require powers up to 66 mW/µm of junction length at 200 ns Pulse Width. These broad area emitters have excellent reliabilityand good quantum efficiency. Single emitters from 75 µm to 380 µm junction length are standard. Other wavelengths from 635 nm to 980 nm, along with both linear and stacked arrays, are available on special order.
The 905 nm laser may be overdriven at narrower pulse widths using Pod = Po * (200/Pwd) 1/2. Standard packages include 5.6mm, 9mm, TO18 coaxial, and TO5 twin lead. Options include fiber pigtails. R0 detectors are available in some packages for range finding applications. Applications include hand held rangefinders, laser speed detectors, ceilometers, weapons simulation, and proximity fuses.

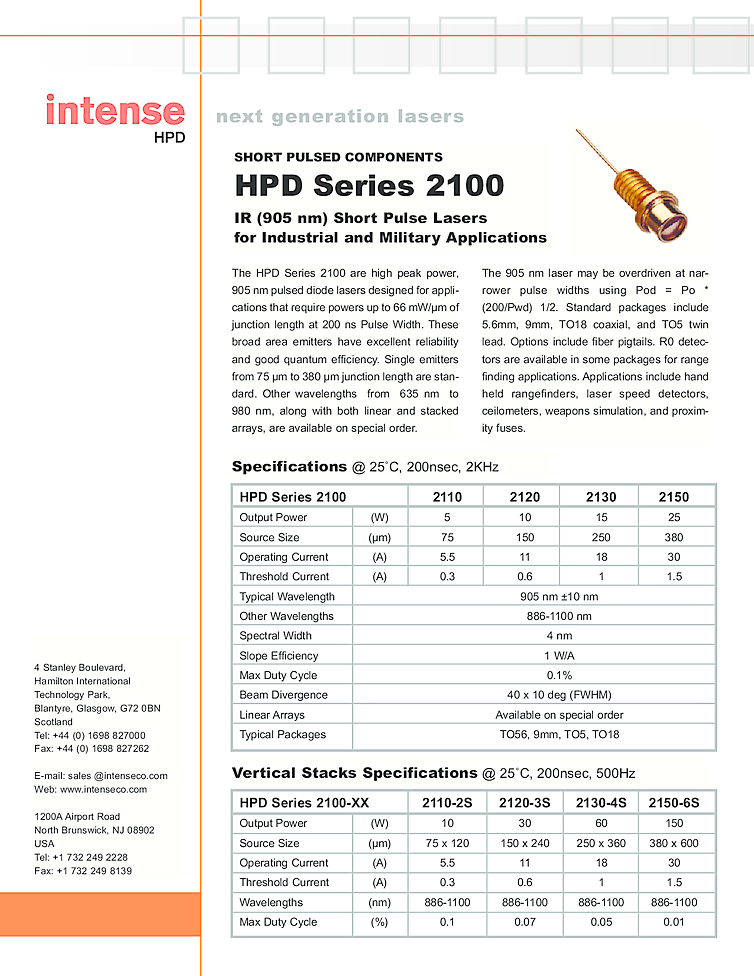

SHORT PULSED COMPONENTS: HPD Series 2100 IR (905 nm) Short Pulse Lasers for Industrial and Military Applications.

The HPD Series 2100 are high peak power, 905 nm pulsed diode lasers designed for applications that require powers up to 66 mW/μm of junction length at 200 ns Pulse Width. These broad area emitters have excellent reliability and good quantum efficiency. Single emitters from 75 μm to 380 μm junction length are standard. Other wavelengths from 635 nm to 980 nm, along with both linear and stacked arrays, are available on special order.
Standard packages include 5.6mm, 9mm, TO18 coaxial, and TO5 twin lead. Options include fiber pigtails.
R0 detectors are available in some packages for range finding applications. Applications include hand held rangefinders, laser speed detectors, ceilometers, weapons simulation, and proximity fuses.

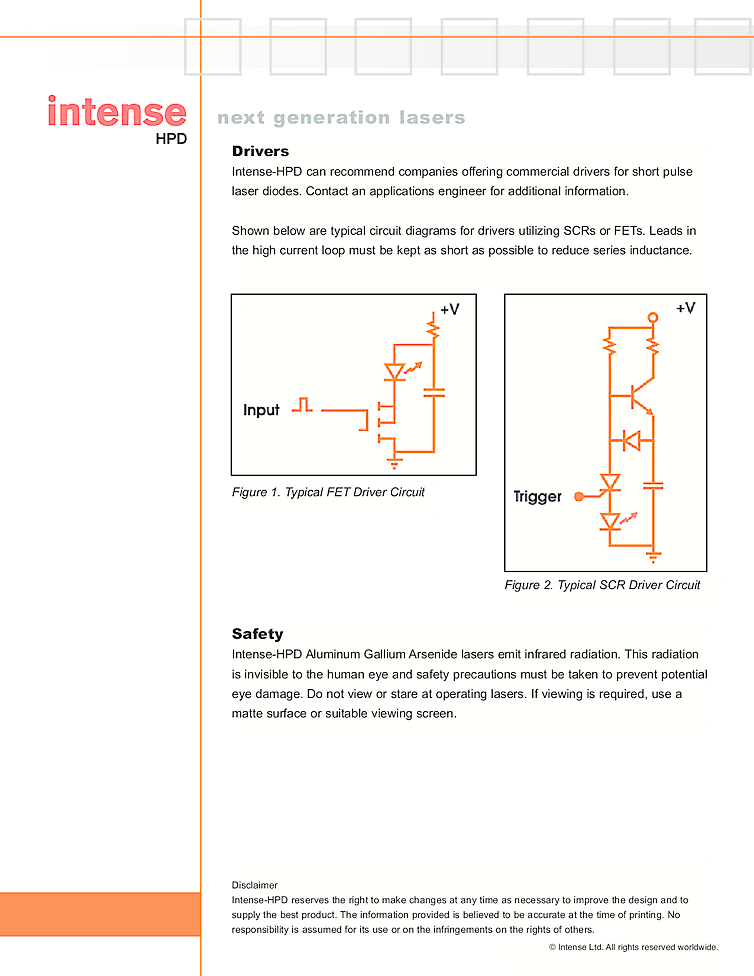

Drivers:
Intense-HPD can recommend companies offering commercial drivers for short pulse laser diodes. Contact an applications engineer for additional information.
