型番： メーカー：QD Laser 商品コード：L001210
940nm Laser Diode, 285mW
波長: 940nm-940nm
出力: 285mW-285mW
パッケージ: TO-can
テクノロジー: Fabry-Perot

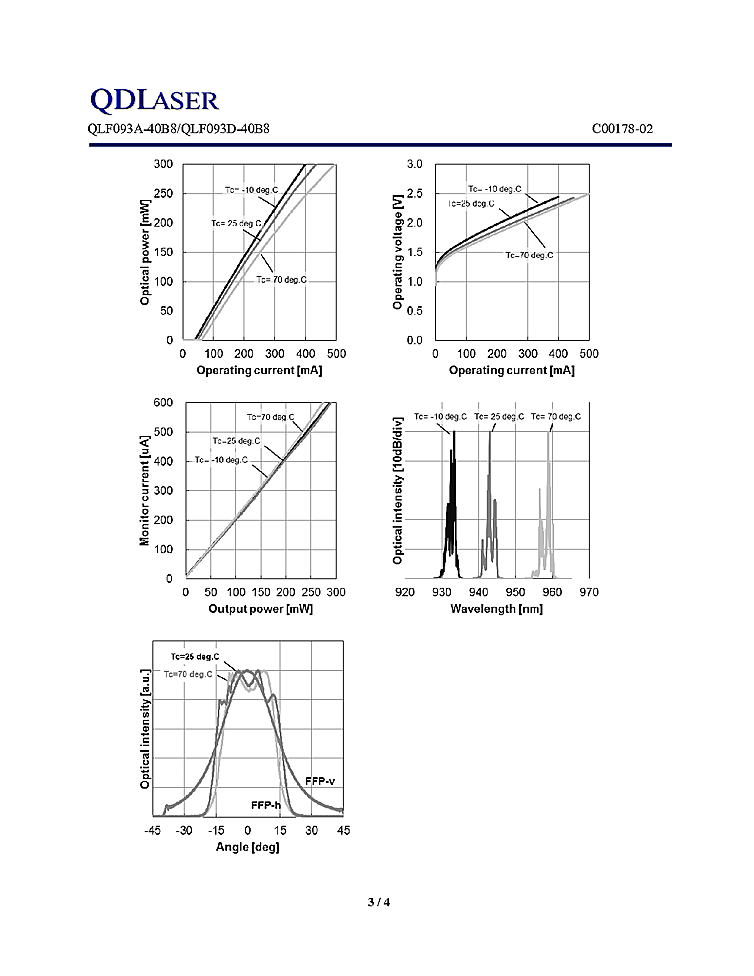

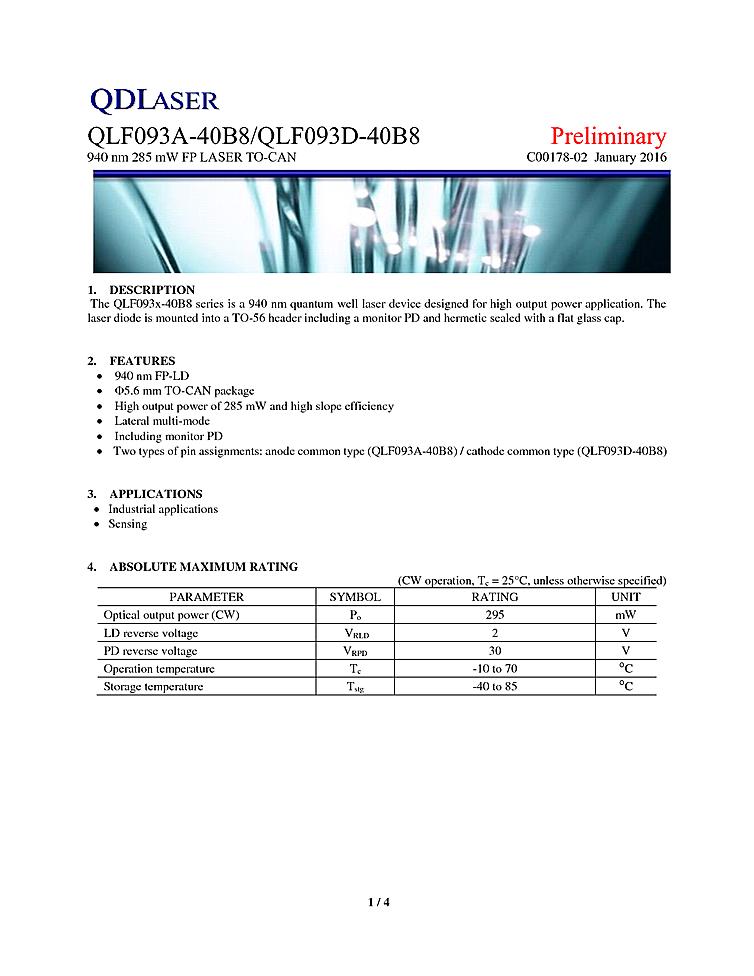

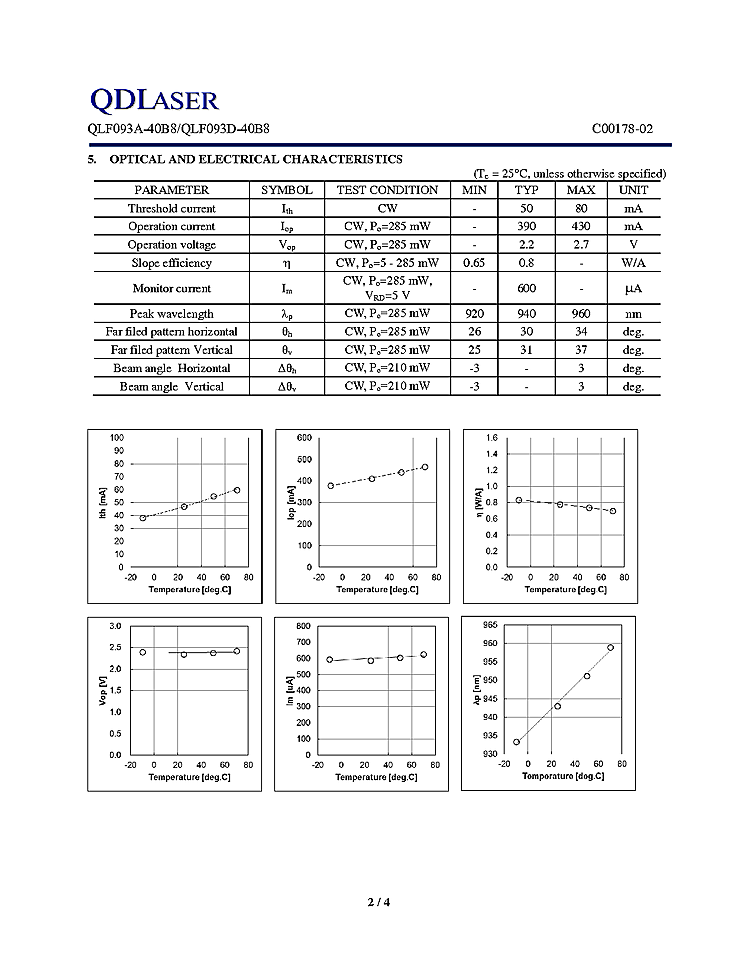

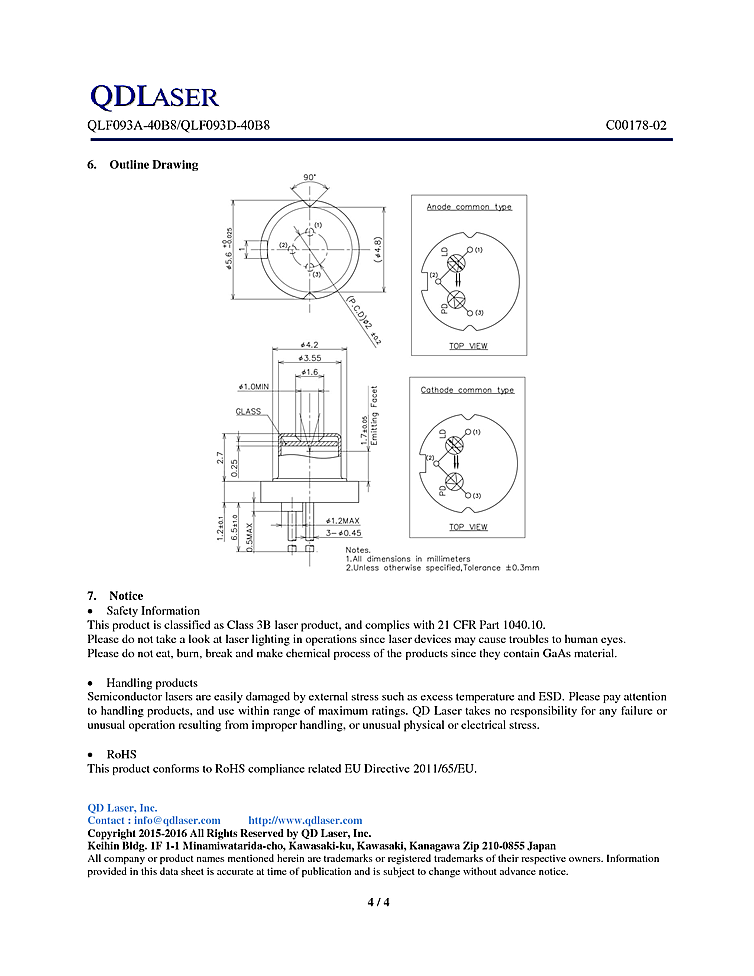

940nm laser diodes from QD Laser Japan are quantum well lasers offering high output power. These devices are offered in an industry standard 5.6 mm (TO-56) can packaged header. They offer Monitor Photodiode. These Fabry-Perot LD's offer 280mW of optical output power at 940 nm. They offer a high slope efficiency and lateral multi-mode operation. There are two types of pin assignments: anode common type and cathode common type.
APPLICATIONS:
- Industrial applications
- Sensing
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 京都府 | 株式会社光響 | |
