型番:Centrale メーカー:AeroDIODE 商品コード:L003582

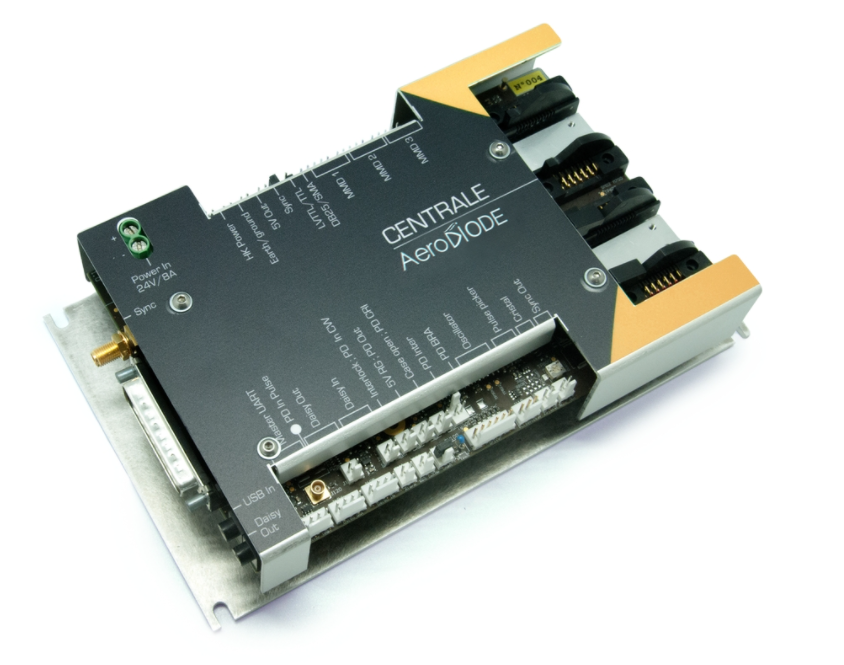

Fiber laser diode driver : two channels & other dedicated functionalities

メーカー希望小売価格: ¥532,289 電流: 500mA-1500mA

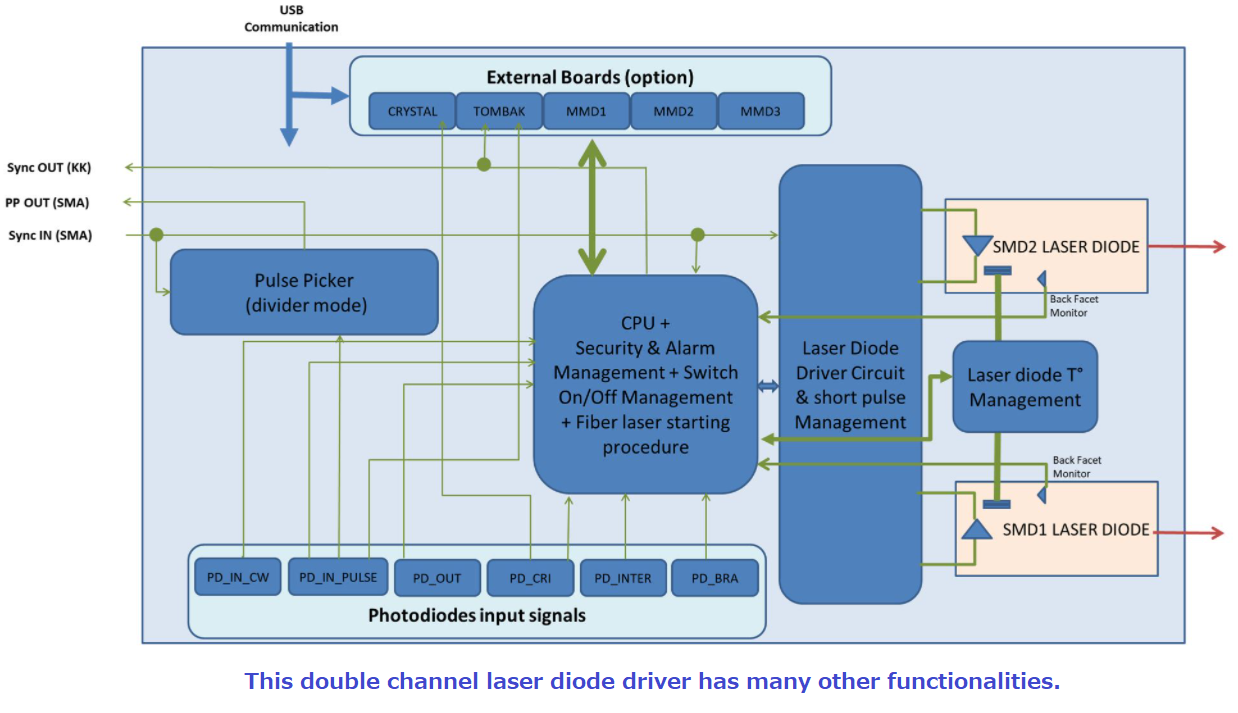

This fiber laser diode driver integrates two laser diode drivers, 6 photodiode electronics, a pulse-picker synchronization tool and many other dedicated functionalities for nearly any type of fiber laser architecture.

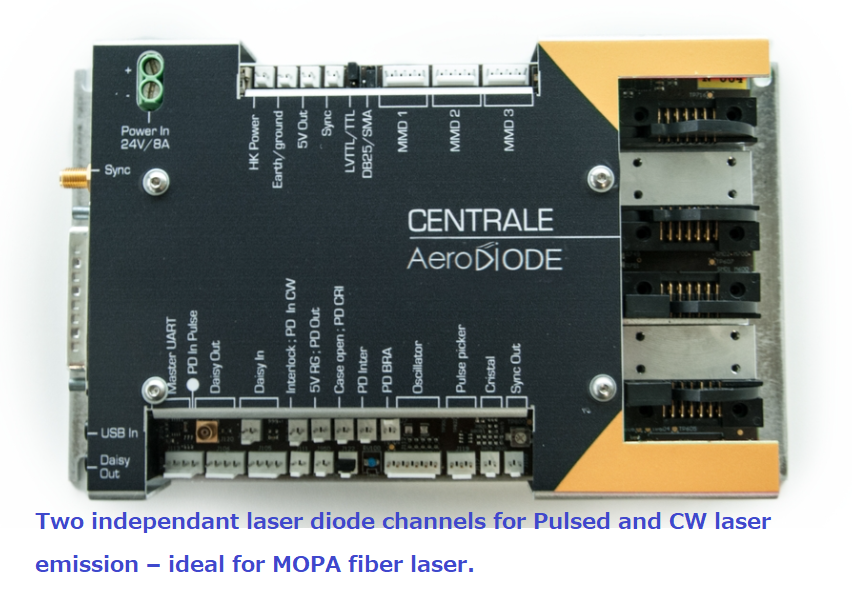

This fiber laser diode driver allows you to develop a complete fiber laser prototype in only a few weeks. There is one “pulsed & CW” channel for seed laser diode and one “CW” channel for pump laser diode. It is compatible with any type of fiber laser architectures : Mode-locked, Q-Switch, MOPA with any type of seeder like EOM modulated diodes, Gain Switched diodes, Microchip etc.

< Key features >

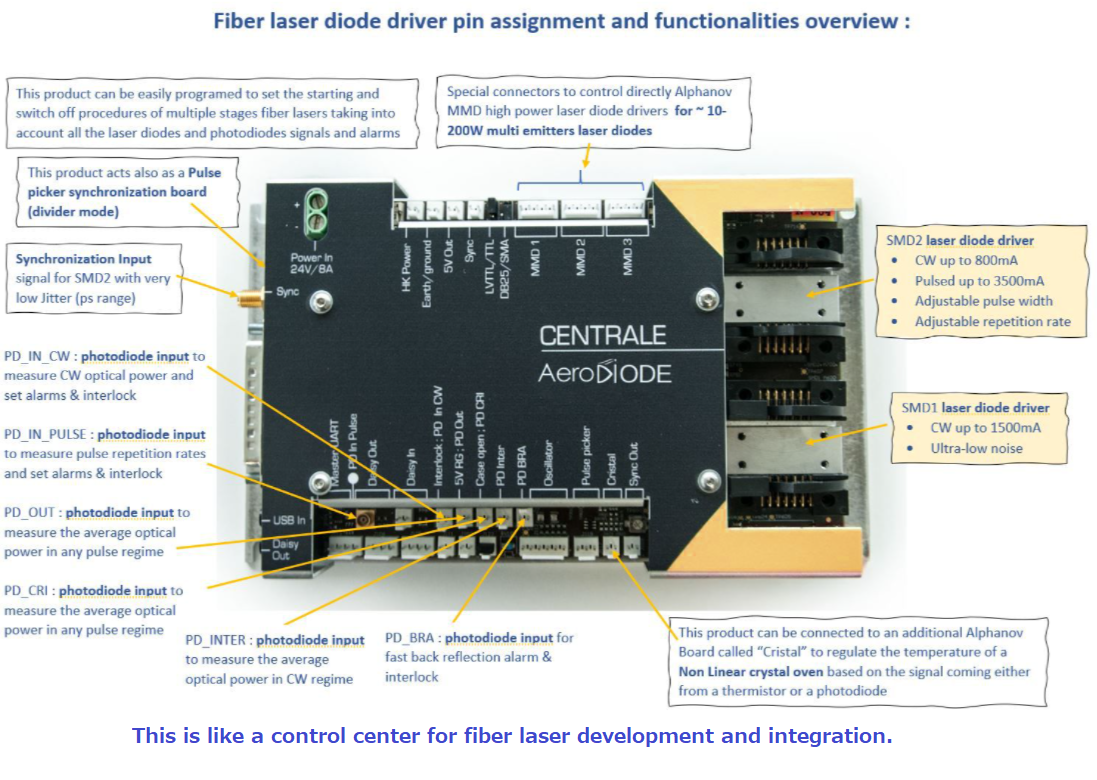

Drives several optoelectronics elements independently or simultaneously :

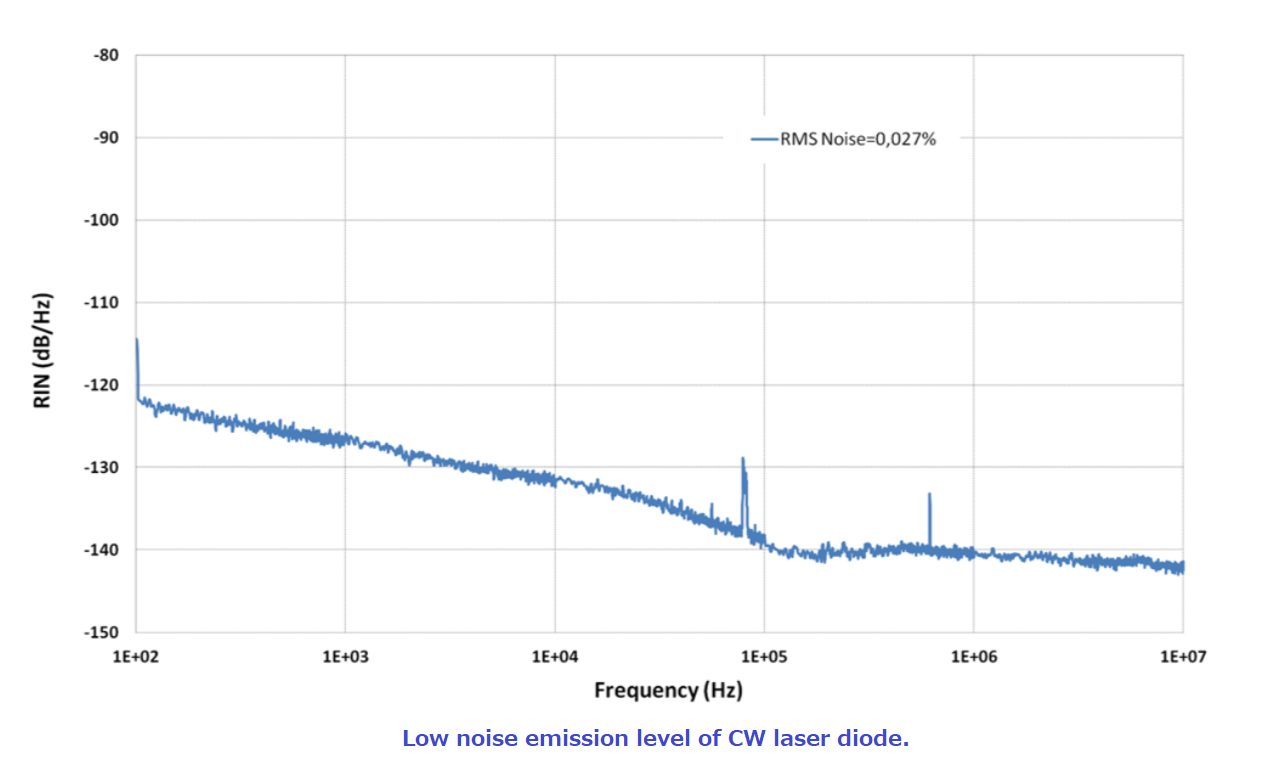

• 1 Butterfly laser diode in CW regime up to 1.5 Amp with very low noise floor
• 1 Butterfly laser diode for pulsing 1 nsec to CW with internal pulse duration and repetition rate adjustments
• 2 Photodiodes to measure CW optical power with high precision
• 1 Photodiode to measure the repetition rate of an optical signal
• 2 Photodiodes to measure the average optical power of a pulsed signal
• 1 Photodiode to measure the optical back reflected power in CW or pulse regime
• 20 different alarms with potential interlock effects

• Special pump pulse regimes for low repetition rate or pulse-on-demand configurations
• Special interconnections with ALPhANOV Multiboard Series to allow complete integration of complex
fiber laser architectures (MOPA, Modelocked, Q-Switch, EOM modulation etc.)

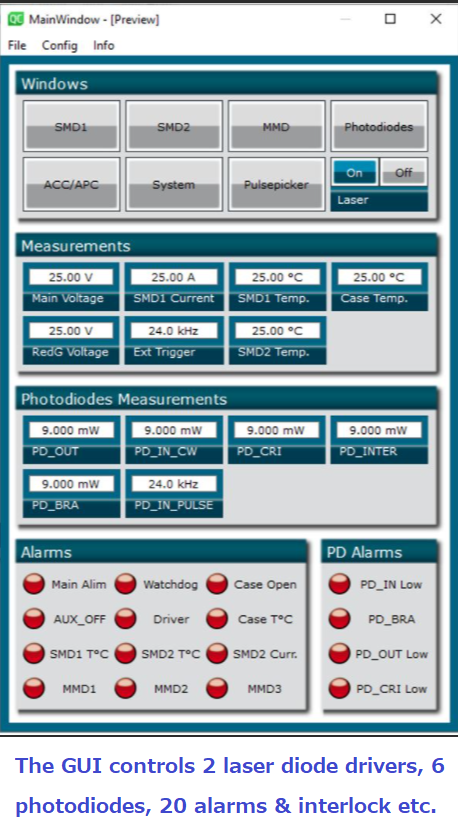

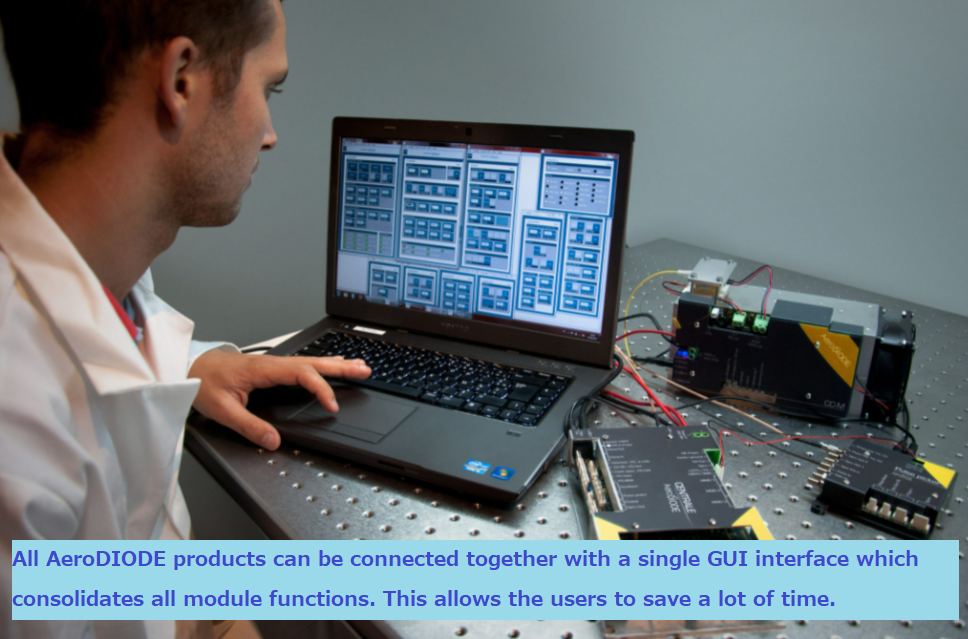

• Smart control (USB interface to drive simultaneously several modules from AERODIODE laser electronics
series)
