型番：OSTLDX976　メーカー：OsTech electro optical instruments 　商品コード：L001196

Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module

Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module
Calibrated Turn-Key System with Integrated 976nm, 45W Jenoptik Laser Diode Module

メーカー希望小売価格: $6,495.00 波長: 976nm-976nm
出力: 45W-45W
パッケージ: Turn-Key Source and Control System
テクノロジー: integrated JENOPTIK Laser Module

Product Overview:

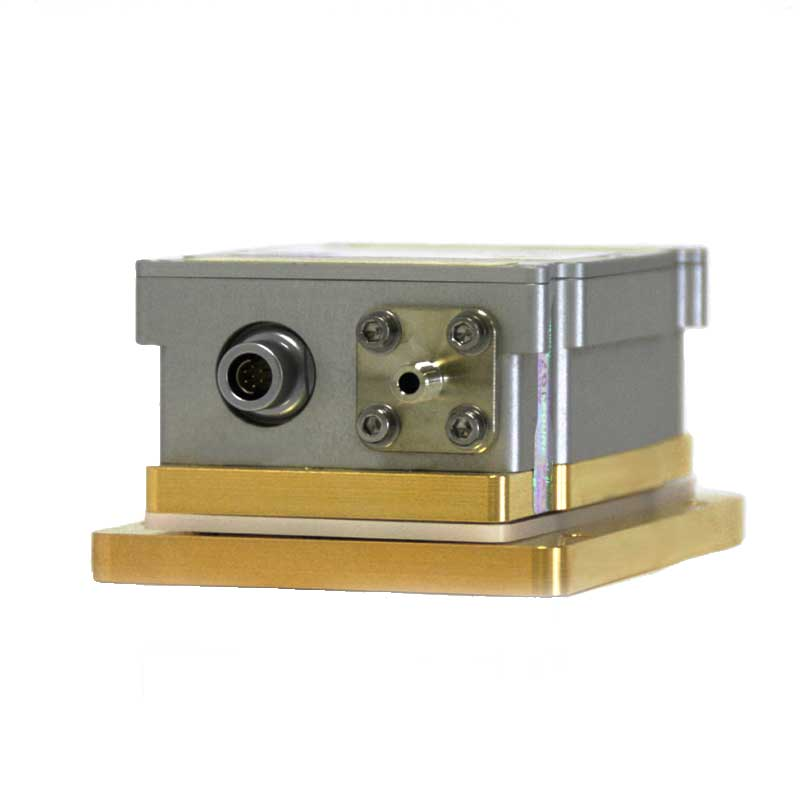

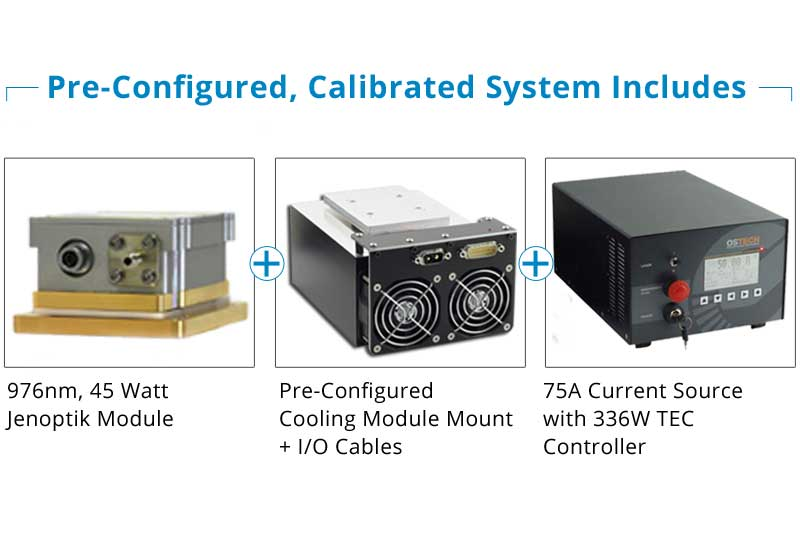

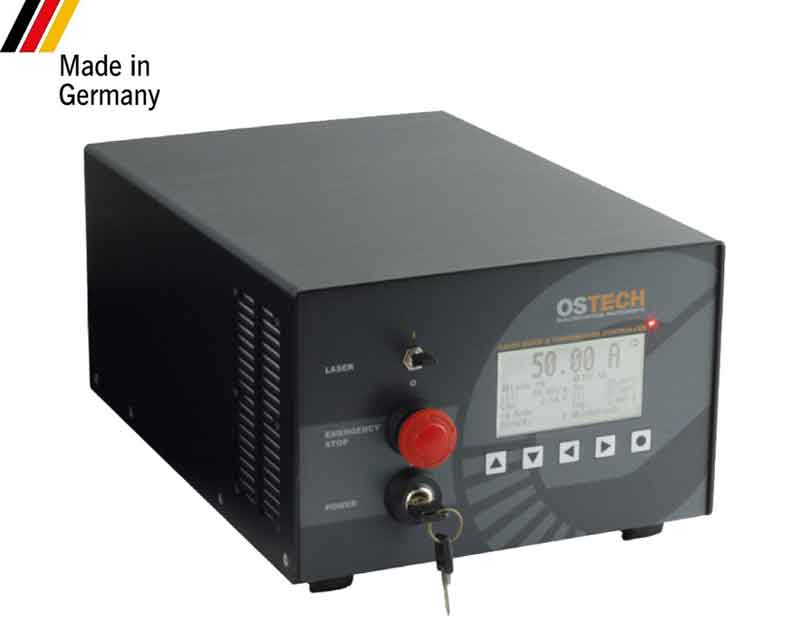

These OsTech Laser Systems 976nm, 45 Watt source and control systems offer a complete plug and play solution for R&D applications. The OSTLDX976 is a pre-configured and pre-tested solution which includes a high reliablity Jenoptik 45CPXF-1L module, a 75 Amp current source with 336 Watt temperature controller, and a high power cooling module. The cooling module comes pre-configured for the module. The controller is optimized for high power fiber coupled modules and is pre-tested with the laser module prior to shipment.

The laser diode heat sink is a passively cooled high performance mounting solution designed for high power laser diode modules. It is a convenient and high performance solution for cooling and temperature stabilization of laser diodes in laboratory environments.
