型番：905D1S3JT03X、905D1S3JT06X、905D1S3JT09X　メーカー：LASER COMPONENTS GmbH　商品コード：L003701

High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】

High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】
High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】
High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】
High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】
High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】
High Power Multi-Junction Pulsed Laser Diodes 【905D1S3JT0XX Series】

905D1S3JT0XX データシート.pdf

波長: 895nm-915nm
出力: 40W-115W
電流: 13.5A-40A
パッケージ: Hermetic and custom designed package

< Description >

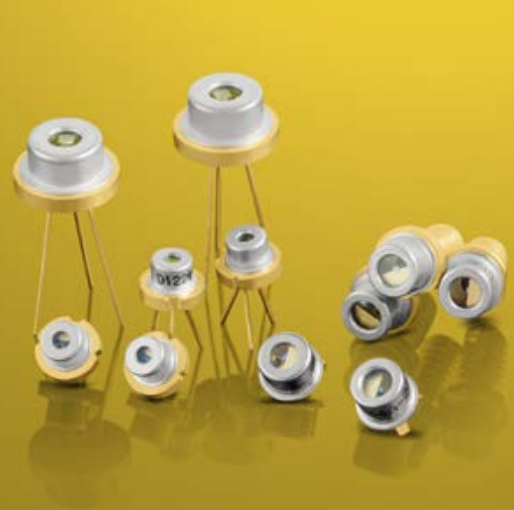

LASER COMPONENTS Canada produces high power pulsed laser diodes (PLDs) at 905 nm. The AlGaAs structure of the 905 series allows for high reliability and temperature stability; it also achieves the best beam characteristics. These 905 nm PLDs are available in a TO-18, 5.6 mm, 9 mm, or 8-32 Coax housing as well as a chip on a ceramic submount. Customer-specific arrays and PLDs with other wavelengths are also available on request.
These laser diodes are used in range finding, speed monitoring, laser radars, security scanners, and laser light curtains or in testing and measurement systems.

< Features >
▪ Multi-junction devices up to 115 W
▪ 75 µm, 150 µm and 225 µm source size
▪ 3.2 W/A efficiency
▪ Proven InGaAs/GaAs high reliability structure
▪ High power multi-junction structure for narrow far field
▪ Excellent temperature stability
▪ Hermetic and custom designed package

< Applications >
▪ Range finding
▪ Surveying equipment
▪ Weapons simulation
▪ LiDAR
▪ Obstacle detection
▪ Medical

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社アルクゥズ
要問い合わせ 光貿易株式会社
要問い合わせ 株式会社アイ・アールエム・システム（IR Components のみ）
要問い合わせ 株式会社オプトサイエンス
