型番： メーカー：Roithner Lasertechnik GmbH 商品コード：L000116
405nm Laser Diode Module, 100mW
波長: 405nm-405nm
出力: 100mW-100mW
パッケージ: SELF CONTAINED MODULE
テクノロジー: n/a

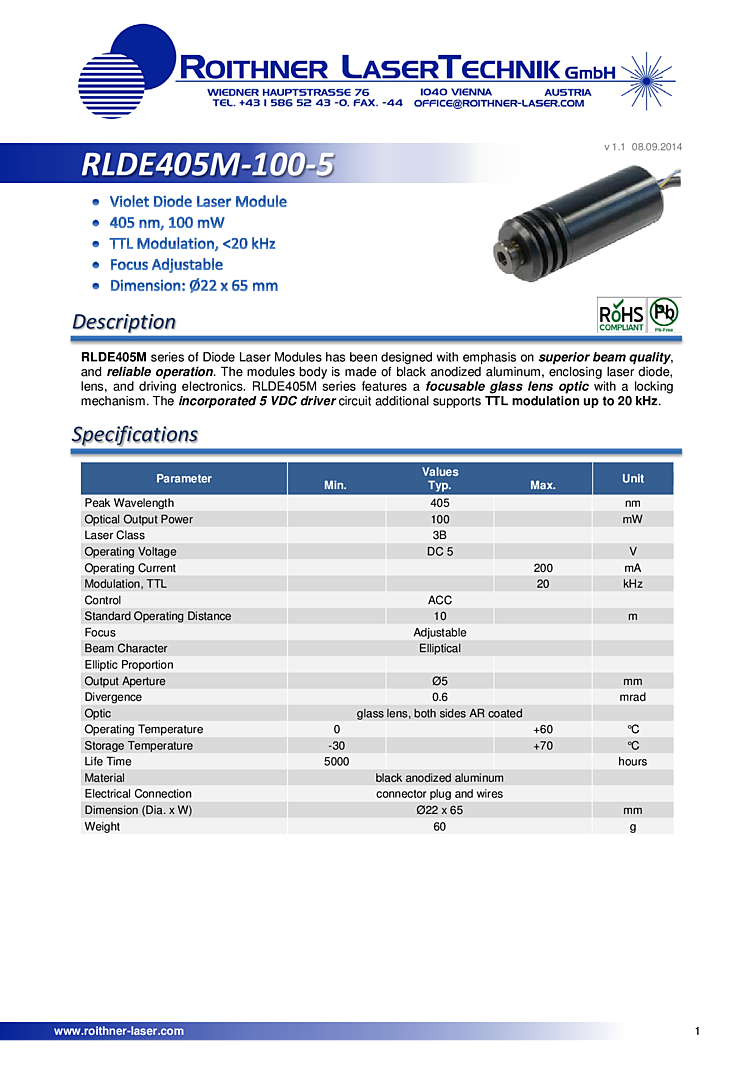

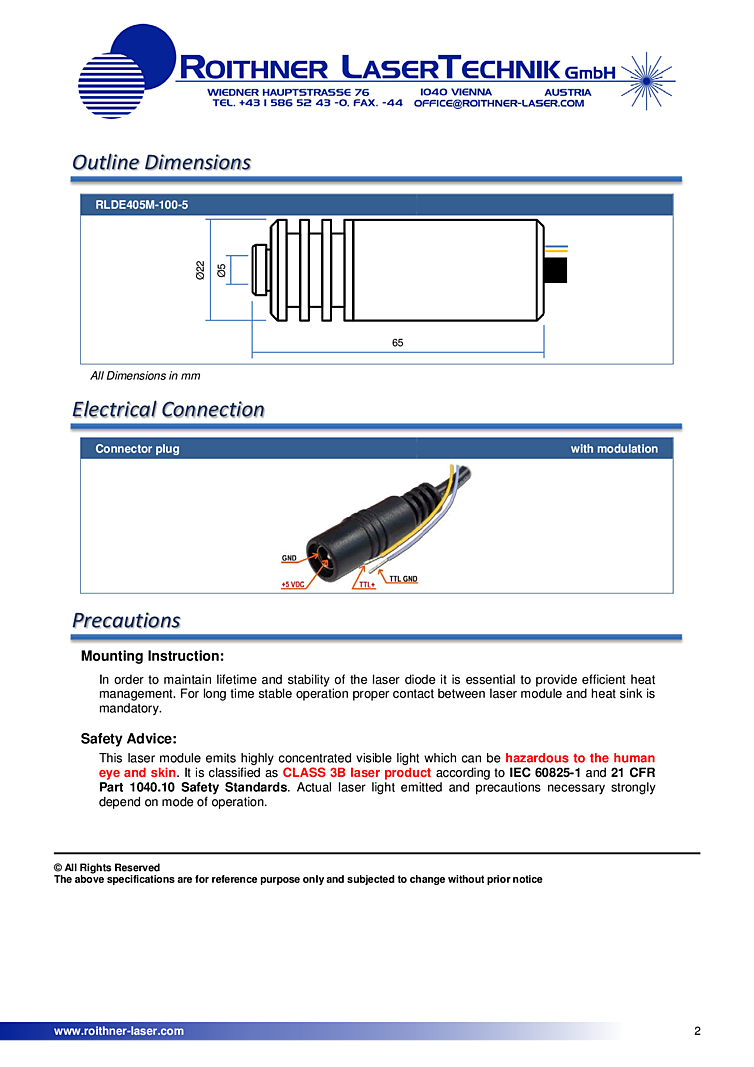

405nm laser diode module from Roithner LaserTechnik data sheet specifies that is has been designed with an emphasis on superior beam quality and reliable operation. The devices is made of black anodized alumuminum, enclosing the laser diode and the control electronics. Furthermore, this 405 nm device specicification document details a focusable glass lens optic with locking mechanism. There is an integrated 5V DC driver circuit and this diode laser can accept up to 20 KHz of TTL modulation. The optical output power is 100mW and the specified drive current is specified at 200mA maximum. The laser class is 3B and the operating voltage is specified at 5V (power supply).
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
