型番：　メーカー：World Star Tech　商品コード：L001106

852nm GaAlAs Laser, 50mW

852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW
852nm GaAlAs Laser, 50mW

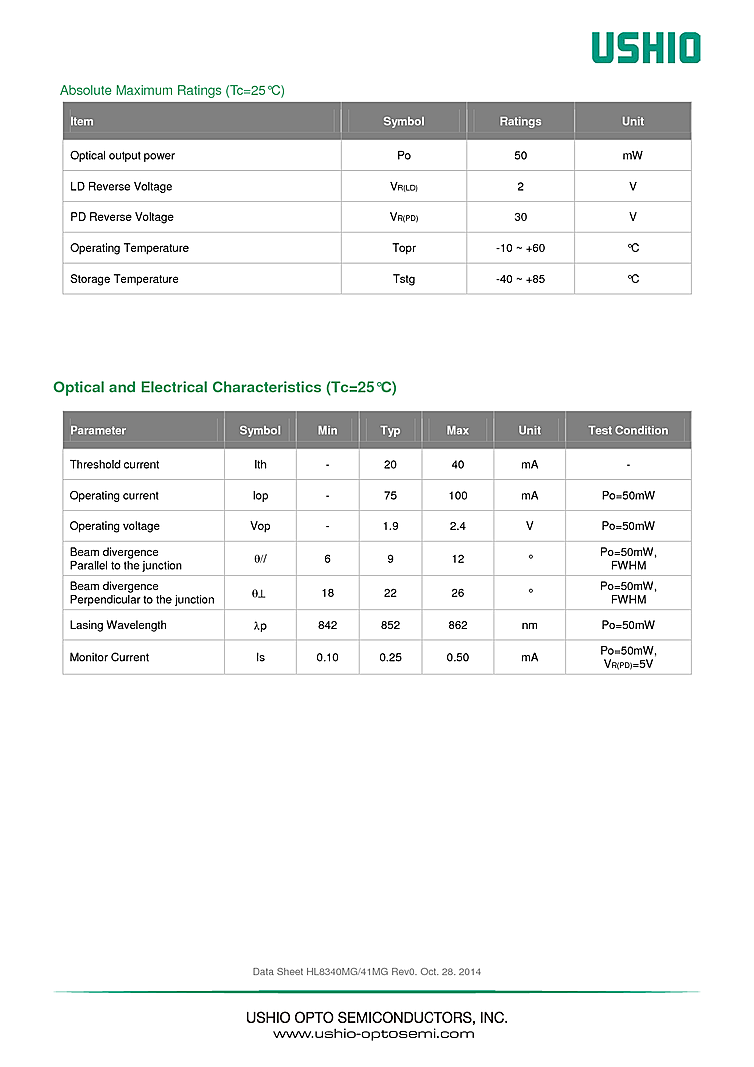

波長: 852nm-852nm
出力: 50mW-50mW
パッケージ: TO-Can
テクノロジー: GaAlAs Laser Diode

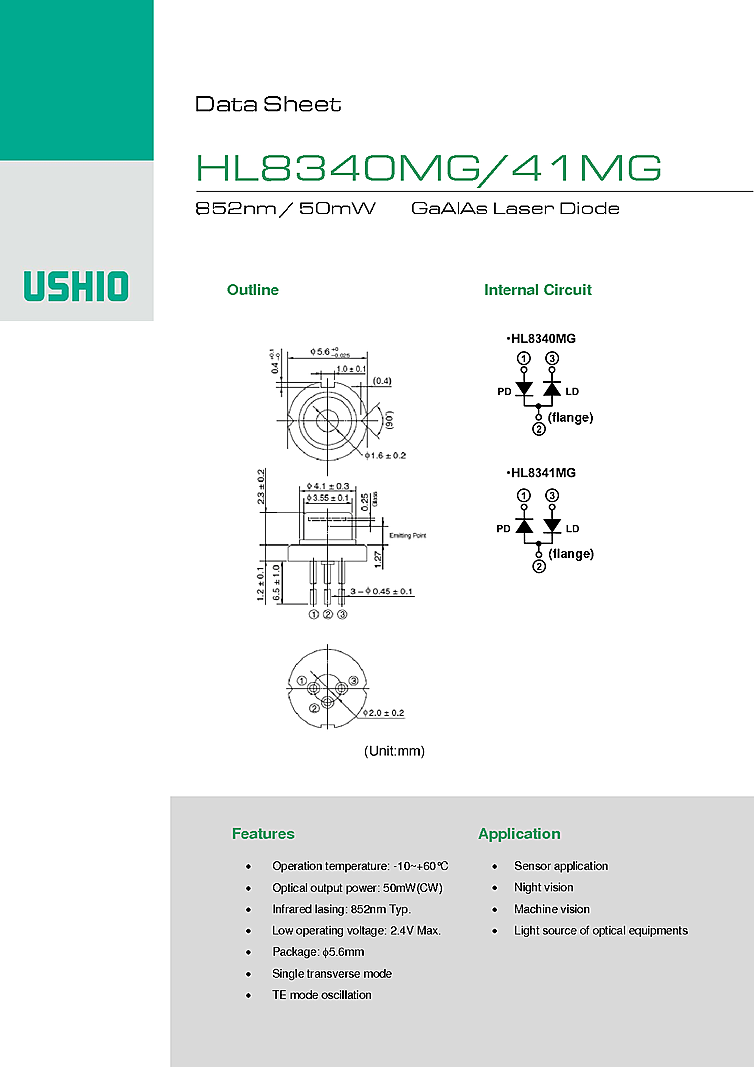

852nm Ushio laser diode offered by World Star Tech. TO-can 5.6mm package with integrated photodiode. GaAlAs Laser Diode with single transverse mode and TE mode oscillation. Applications include Sensor development, night vision, machine vision, and light source of optical equipment. Low operating voltage: 2.4V Max. and typical operating current of 75mA and threshold of 20mA over the operation temperature: -10~+60°C. Diode laser output power up to 50mW CW at a infrared lasing wavelength of 852nm.
