型番：ARR166C120、ARR166C240、ARR166P1200、ARR166P1800、ARR166P2400、ARR166P3600、ARR166P4800、ARR166P9600　メーカー：Northrop Grumman Corporation　商品コード：L001095

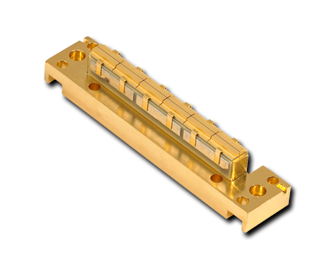

6, 12, 18, 24, 48-Bar 6 Shooter Packages

6, 12, 18, 24, 48-Bar 6 Shooter Packages
6, 12, 18, 24, 48-Bar 6 Shooter Packages

6 Shooter データシート.pdf

波長: 790nm-1550nm
出力: 120W-9600W
電流: 25A-175A
電圧: 10.2V-96.0V
パッケージ: Shooter Package
テクノロジー: High power laser diode array

The 6-shooter package is a rugged laser diode array that is well-suited for industrial applications. The arrays feature high-current electrical connections and threaded electrical studs that enable operation at high average current.

These arrays are available for use in continuous-wave (CW) or quasi-CW (QCW) applications. For CW applications, the 6-shooter is rated at 240W of total power. For QCW applications, the output power rating depends strongly on the operating conditions. Multiple bars can be placed at each location along the array to enable peak output powers of approximately 14 kW.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
