型番： メーカー：m2k-laser GmbH (COHERENT / DILAS) 商品コード：L001009
865nm-880nm, 1.5W Diode Lasers
波長: 865nm-880nm
出力: 1500mW-1500mW
パッケージ: c-mount, COC
テクノロジー: tapered amplifier

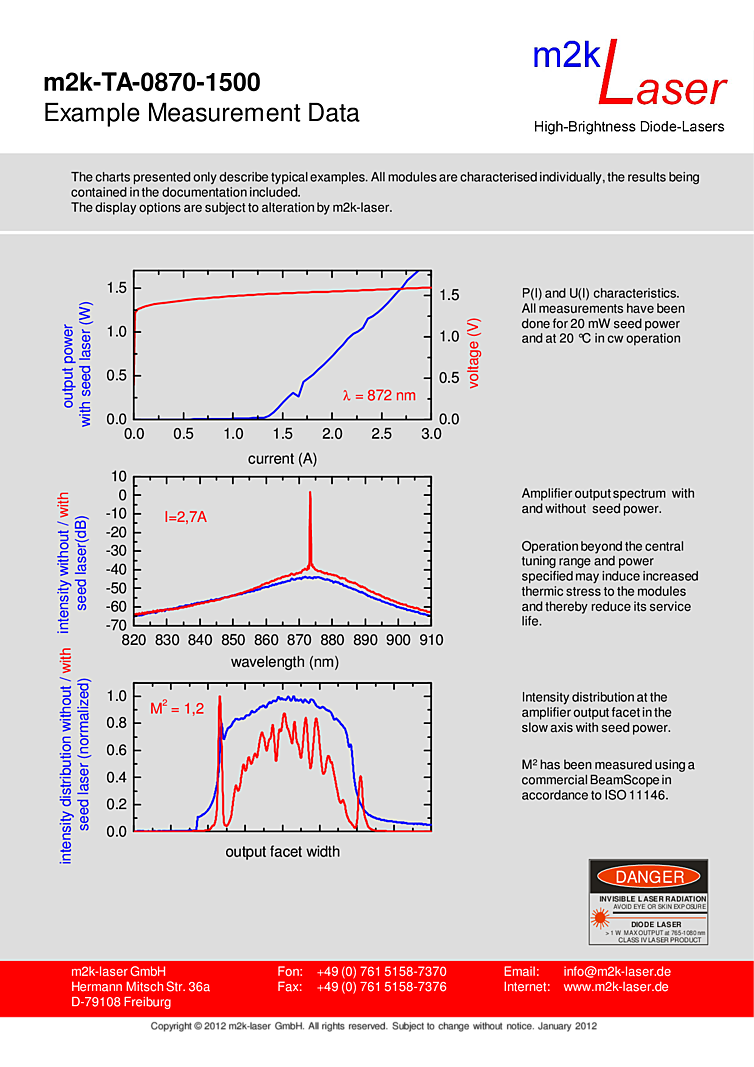

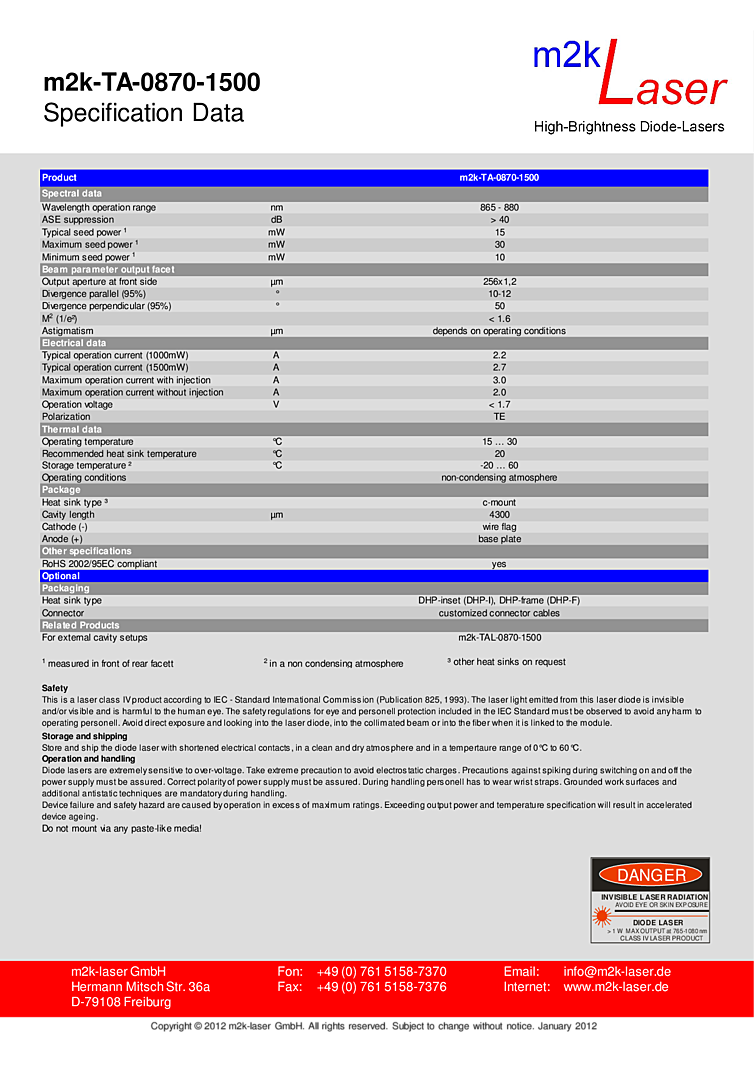

865nm-880nm from m2K lasers tapered amplifier. GaAs based tapered amplifiers are used for the amplification of an existing seed laser. The seed power between 10 mW and 30 mW can be amplified up to nearly diffraction limited power values of 1500 mW. Key features referenced on the attached data sheet include operation range: 865nm – 880nm

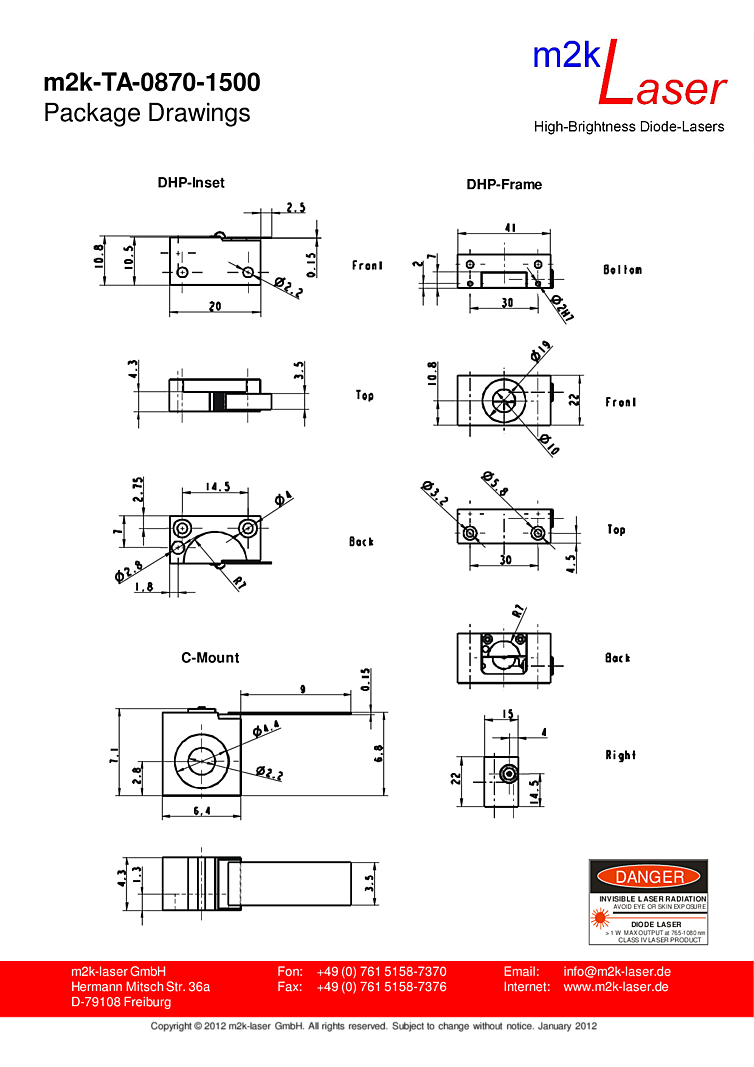

with output power of 1500 mW. Side mode suppression is specified as greater than 40 dB. AR coating is specified at less than 0.01%. Packaging styles include C-mount / DHP-I / DHP-F.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社ブルーアロー(high-brightness TA, TAL products) | ||
| 要問い合わせ | 株式会社ルクスレイ(DILAS High-Power Products) | ||
